Specification
- SKU: VW02-RS-KA / VW02-RS-KB / VW02-ZZ-KA / VW02-ZZ-KB
- Product name:Xtreme Solid V Wheel kit
- Material: Polycarbonate (also called PC)
- Bearings: 625-2RS or 625ZZ
- ID of Bearing: 5x16x5mm
- Rockwell Hardness: M80
- Compression Strength: 63MPA
- Color: Clear

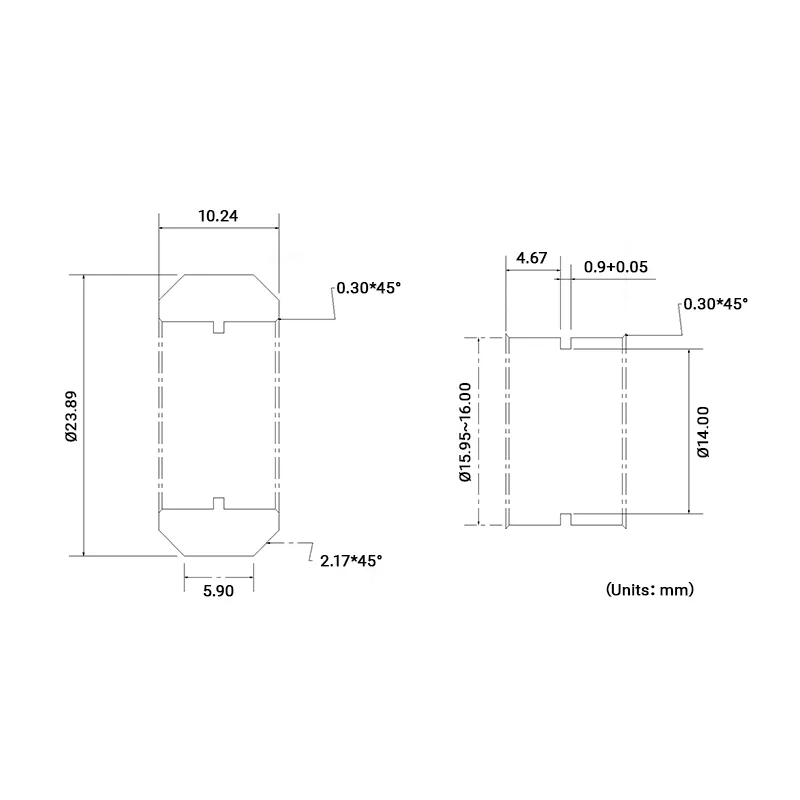

- Size: 23.89 OD x 15.95 ± 0.05 ID x 10.24 thickness (units:mm)
Feature
- The Xtreme Solid V Wheel Kit has improved performance when used in conjunction with a Belt & Pinion system because it provides a flat surface for the belt to ride on.
Each Wheel Kit Includes
- 1x Polycarbonate V Wheel
- 2x 625-2RS Bearings or 625ZZ Bearings
- 2x Precision Shims 5mm
- 1x Nylon Lock Nut M5
- 1x Low profile screw M5x25mm
- 1x 6mm Aluminum Spacer or 6mm Eccentric Spacer
Tips
- The standard kit include 6mm aluminum spacer or 6mm eccentric spacer.If you need change 6.35mm (1/4″) aluminum spacer or 6.35mm (1/4″) eccentric spacer, please leave us a note when placing your order.
- This Xtreme Solid V Wheel kit is unassembled.
Application
Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
