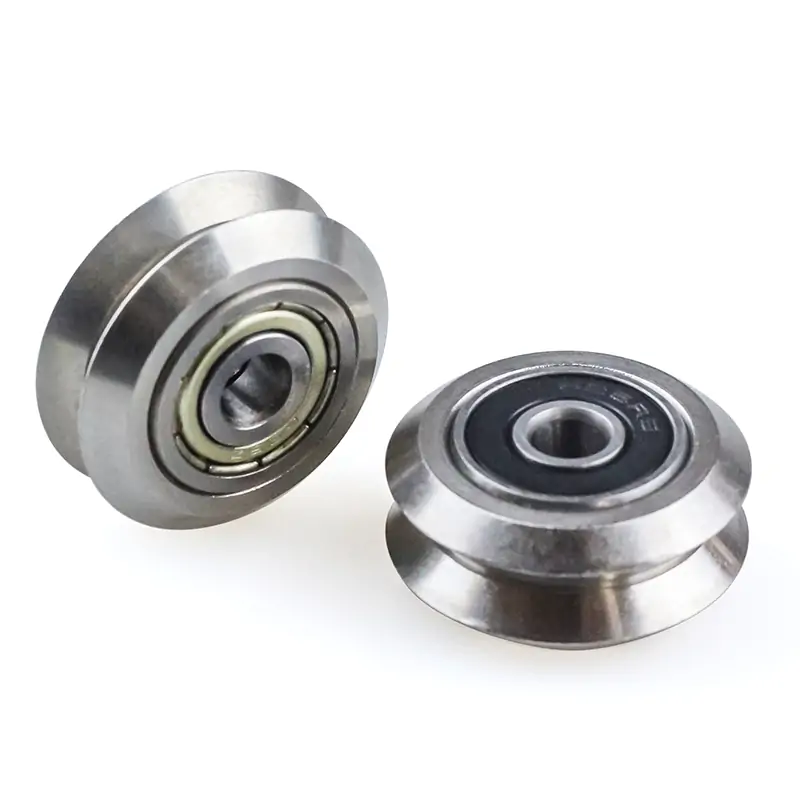

Metal Dual V Wheel (Assembled)

Specification

• SKU: VW08-RS / VW08-ZZ
• Product name: Metal Dual V Wheel Kit
• Material: Stainless Steel
• Bearings: 625-2RS or 625ZZ
• ID of Bearing: 5x16x5mm
• Rockwell Hardness: M80
• Compression Strength: 63MPA
• Color: Stainless Steel
• Size: 24.39 OD x 15.95 ± 0.05 ID x 10.23 thickness (units:mm)

Feature

• This Stainless Steel Dual V Wheel Kit is great for use with any hardened V Wheel Linear Guide System.
• These wheels are individually milled for consistent high precision and tolerance.
• For 3D printer & V-Slot aluminium extrusions

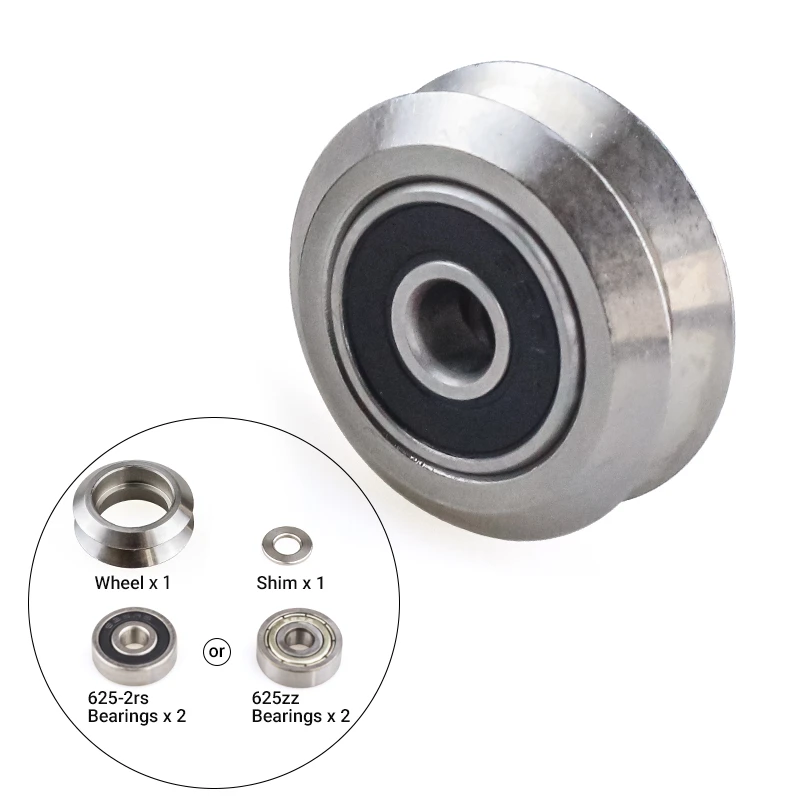

Each Wheel Kit Includes

• 1 x Metal Dual V Wheel
• 2 x 625-2RS Bearings or 625ZZ Bearings
• 1 x Shim

Tips:

• Don’t forget to order your Spacers, Eccentric Spacers,Nylon Lock Nut and Low Profile Screws to create your gantry.
• These wheel kits also feature most of our Gantry Bundles. Which is an excellent choice if you are after the complete set up for your gantry.
• The precision shims are placed in-between the two bearings. To assemble, first push one bearing into the wheel and then push the precision shims and 2nd bearing into the other side of the wheel.

Application

Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
