Xtreme Dual V Wheel Kit Unassembled

Specification

• SKU: VW04-RS-KA / VW04-RS-KB / VW04-ZZ-KA / VW04-ZZ-KB
• Product name: Xtreme Dual V Wheel Kit
• Material: Polycarbonate (also called PC)
• Bearings: 625-2RS or 625ZZ
• ID of Bearing: 5x16x5mm
• Rockwell Hardness: M80
• Compression Strength: 63MPA
• Color: Clear
• Size: 24.39 OD x 15.95 ± 0.05 ID x 10.23 thickness (units:mm)

Feature

• The Xtreme Dual V Wheel  Kit is part of the heavy duty Xtreme line of parts, designed with strength in mind.
  Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
  These wheels are individually milled for consistent high precision and tolerance.
• These Xtreme Dual V Wheels are made from very hard polycarbonate (clear) material. Due to its strong nature, it will resist compression and wear.
  In turn, it also leads to better over all precision and strength for your builds.

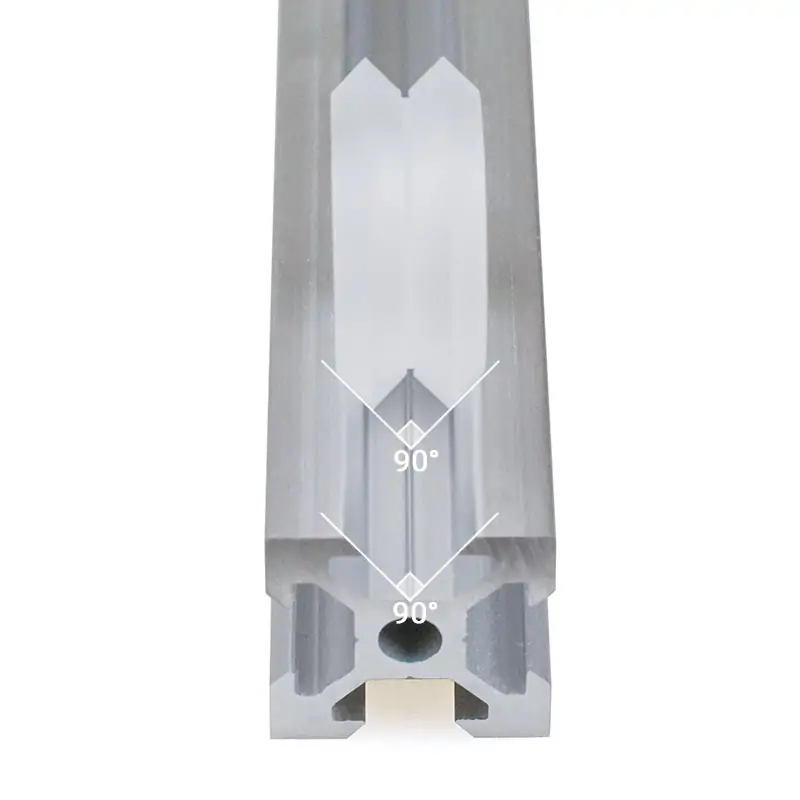

• For 3D printer & V-Slot aluminium extrusions

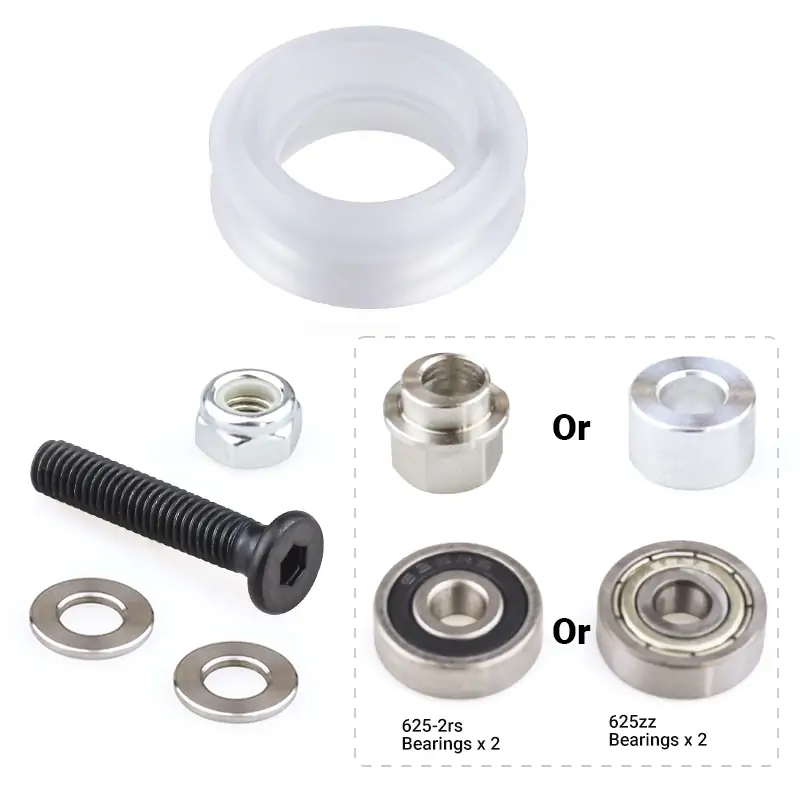

Each Wheel Kit Includes

• 1x Xtreme Dual V Wheel
• 2x 625-2RS Bearings or 625ZZ Bearings
• 2x Precision Shims 5mm
• 1x Nylon Lock Nut M5
• 1x Low profile screw M5x25mm
• 1x 6mm Aluminum Spacer or 6mm Eccentric Spacer

Tips

• The standard kit include 6mm aluminum spacer or 6mm eccentric spacer.If you need change 6.35mm (1/4″) aluminum spacer or 6.35mm (1/4″) eccentric spacer,Please leave us a note when placing your order.
• This Xtreme Dual V Wheel kit is unassembled.

Application
