Delrin Solid V Wheel (Assembled)

Specification:

• SKU: VW01-RS / VW01-ZZ
• Material: POM (also called delrin)
• Bearings: 625-2RS or 625ZZ
• ID of Bearing: 5x16x5mm
• Rockwell Hardness: M80
• Compression Strength: 63MPA
• Thickness: 10.24mm
• Color: Black

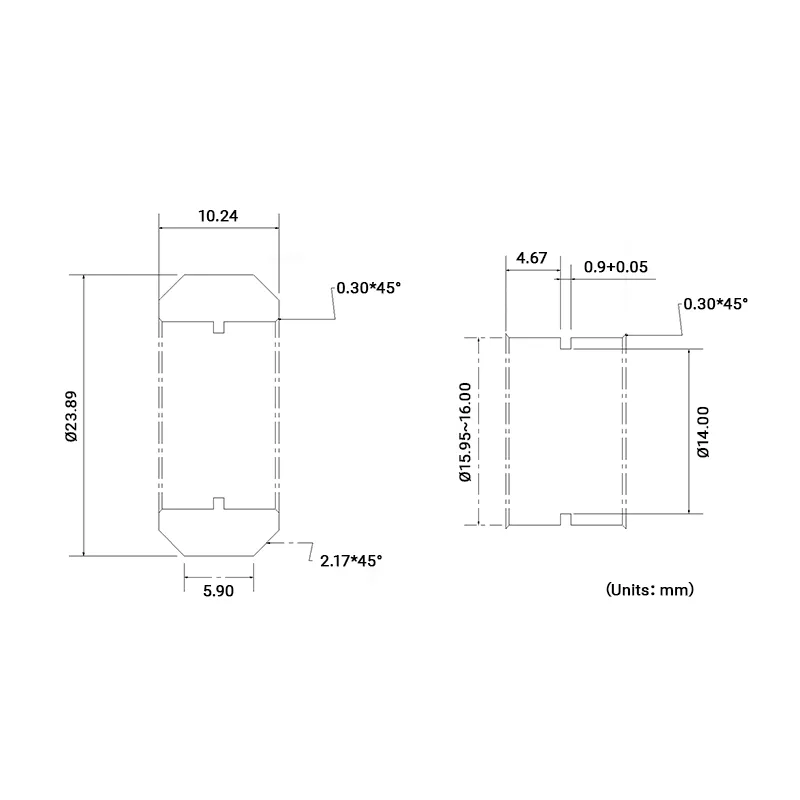

• Size: 23.89 OD x 15.95 ± 0.05 ID x 10.24 thickness (units:mm)

Feature

• The Solid V Wheel is a strong wheel that resists deflection due to its solid nature.This wheel style was produced for two reasons:
  • First is for builds where heavier loads are required and less compression in the delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
  • Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on. These wheels are individually milled for consistent high precision and tolerance.
• These Solid V Wheel Kits are great for use with the V-Slot aluminium extrusions.

Application:

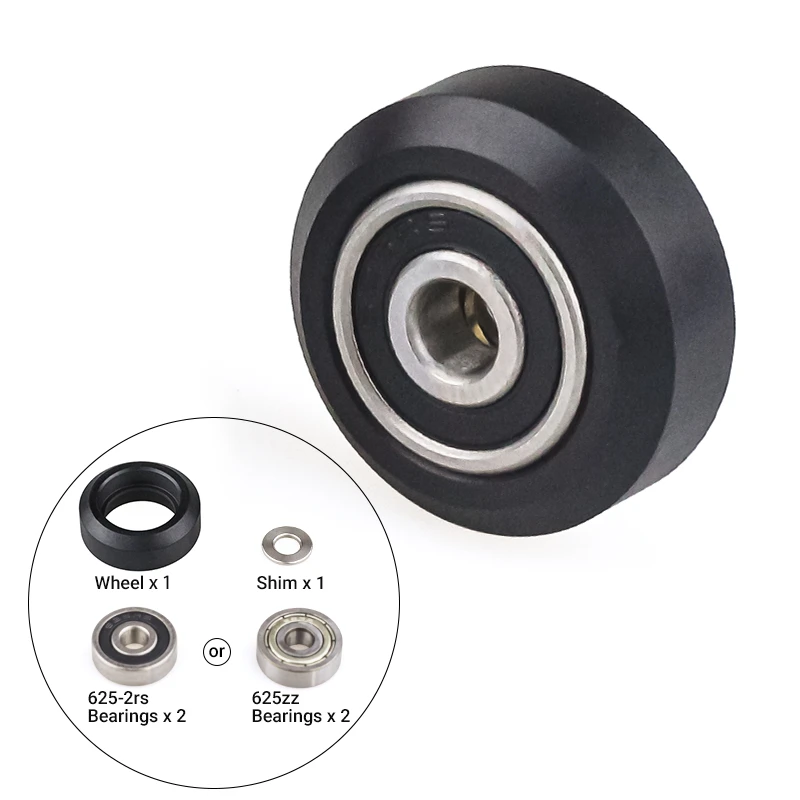

Kit includes:

• 1 x Solid V Wheel
• 2 x 625-2RS Bearings or 625ZZ Bearings
• 1 x Shim

Tips:

• Don’t forget to order your Spacers, Eccentric Spacers,Nylon Lock Nut and Low Profile Screws to create your gantry.
• These wheel kits also feature most of our Gantry Bundles. Which is an excellent choice if you are after the complete set up for your gantry.
• The precision shims are placed in-between the two bearings. To assemble, first push one bearing into the wheel and then push the precision shims and 2nd bearing into the other side of the wheel.
