Xtreme Solid V Wheel (Assembled)

Specification:

• SKU: VW02-RS / VW02-ZZ
• Product Name: Xtreme Solid V Wheel Kit
• Material: Polycarbonate (also called PC)
• Bearings: 625-2RS or 625ZZ
• ID of Bearing: 5x16x5mm
• Thickness: 10.24mm
• Rockwell Hardness: M75
• Compression Strength: 86MPA
• Color: Clear

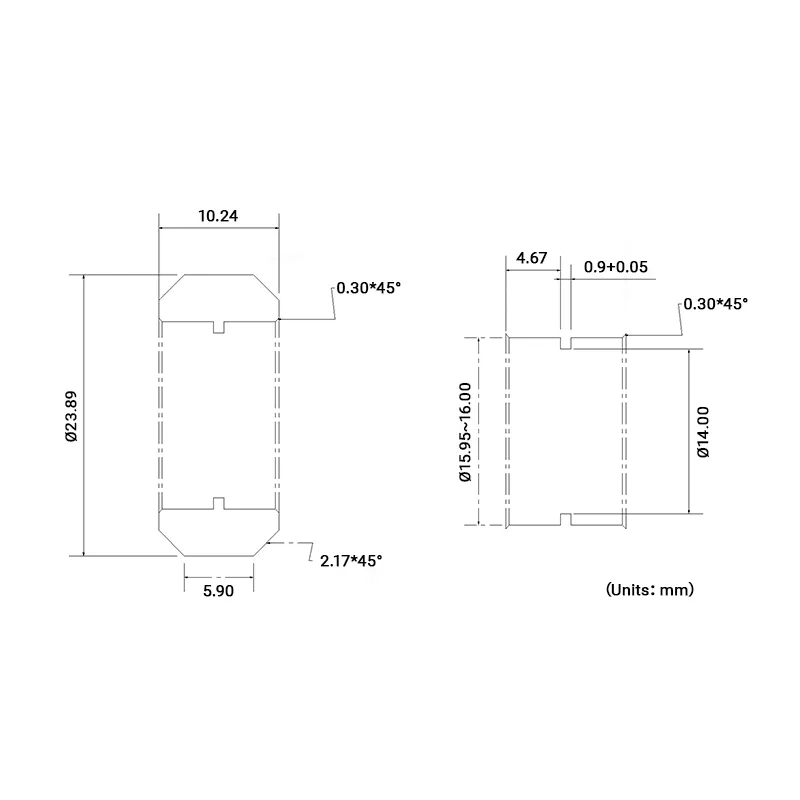

• Size: 23.89 OD x 15.95 ± 0.05 ID x 10.24 thickness (units:mm)

Feature

• The Xtreme Solid V Wheel  is part of the heavy duty Xtreme line of parts, designed with strength in mind.
• These solid Xtreme V Wheels are made from very hard polycarbonate (clear) material which, due to its strong nature, will resist compression and wear and, in turn, leads to better over all precision and strength for your builds.
• The Xtreme V wheels are designed to be used as a heavy duty alternative to the Delrin V Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system. So, while the Delrin V Wheels work great for most light load applications the Solid V Xtreme wheels can be used for builds where heavier loads are required and less compression in the delrin is desired.
• Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
• These wheels are individually milled for consistent high precision and tolerance.

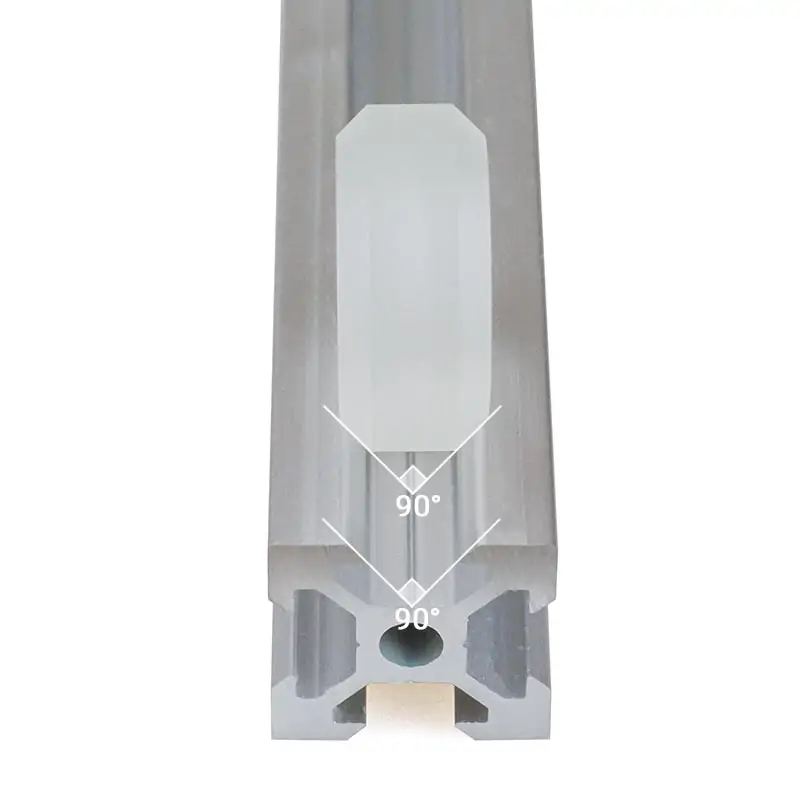

• For 3D printer & V-Slot aluminium extrusions

Application:

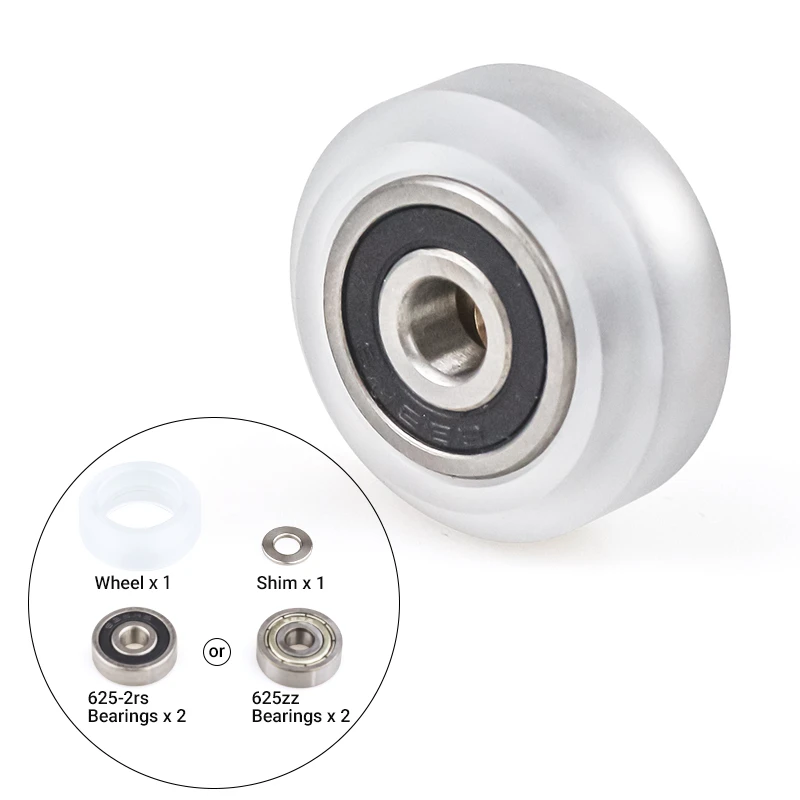

Kit Includes:

• 1 x Xtreme Solid V Wheel
• 2 x 625-2RS Bearings or 625ZZ Bearings
• 1 x Shim

Tips

• Don’t forget to order your Spacers, Eccentric Spacers,Nylon Lock Nut and Low Profile Screws to create your gantry.
• These wheel kits also feature most of our Gantry Bundles. Which is an excellent choice if you are after the complete set up for your gantry.
• The precision shims are placed in-between the two bearings. To assemble, first push one bearing into the wheel and then push the precision shims and 2nd bearing into the other side of the wheel.

Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
