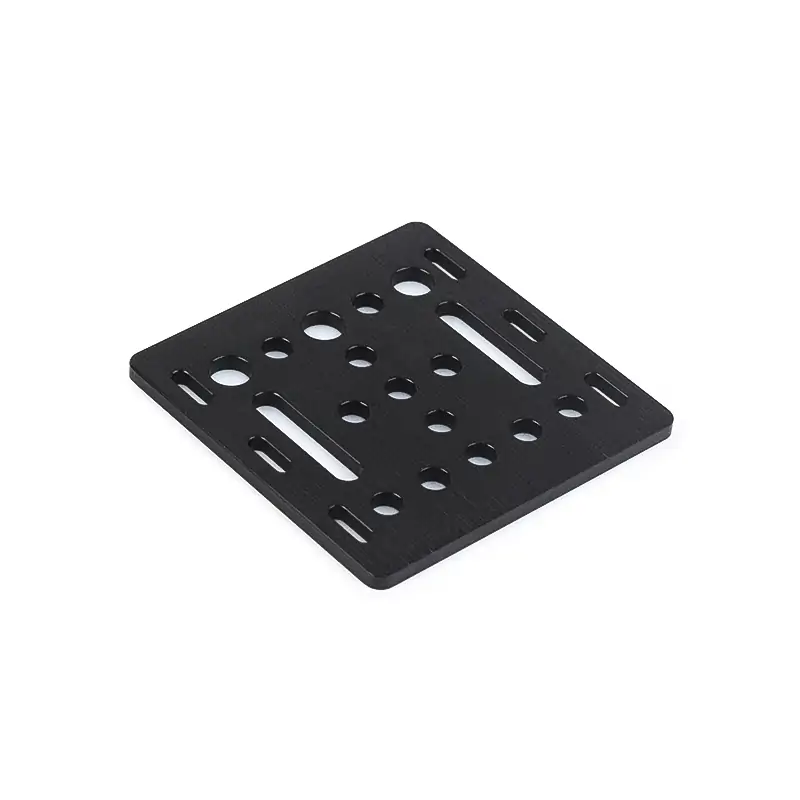

20mm V-Slot Gantry Plate

Specifications

• SKU: PL11-1
• Size: L65.5 x W65.5 x T3
• Thickness: 3mm~ (1/8″)
• Material:6061 Aluminium
• Finish: Black Anodised

Feature

• This plate was designed to be used where a smaller, lighter plate is desired on the 20mm Side of V-Slot. This Gantry Plate is great when full size wheels are preferred along with a smaller foot print needed.

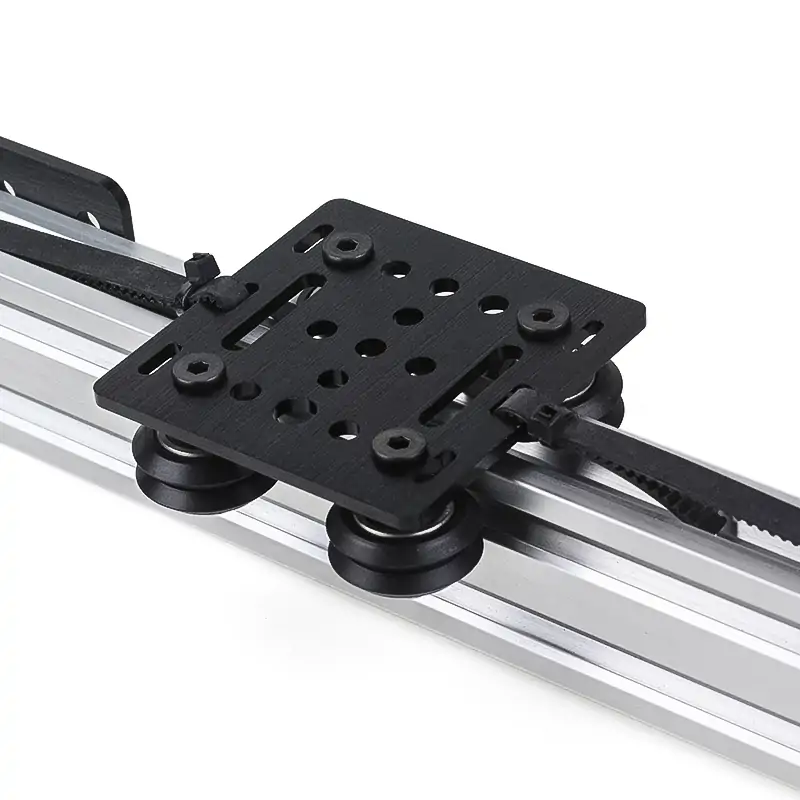

• We wanted to ensure that we simplify belt clamping so we have incorporated ‘Fold-Through’ Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.
• Two 5mm slots that allow you to attach spacers for 90 degree belt mounts are located under or on top of the plate. This simplifies the overall building process and allows for quick assembly times of motion systems.

Application
