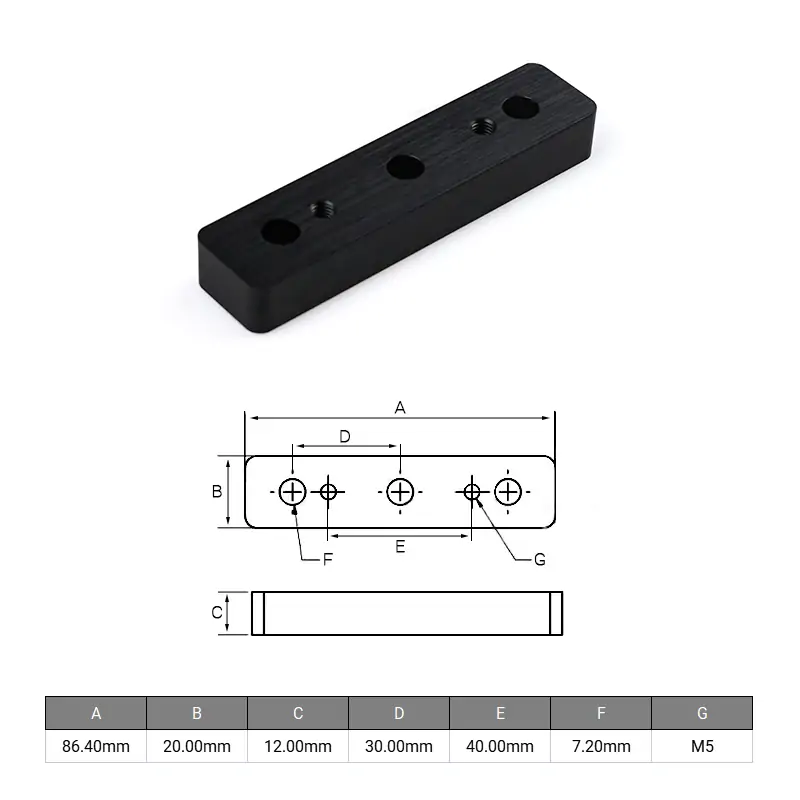

Spacer Block

Specifications

• SKU: PL06
• Material: 6061 Aluminum
• Dimensions: 86 x 20 x 12mm
• Color: Black Anodised

Feature

• This is the V-Slot Spacer Block.  It was specially designed to be used in conjunction with the V-Slot Gantry Plate.
• It allows you to raise the V-Slot Gantry Plate up away from the rail 12mm so that you can run transmission components such as a belt drive or threaded rod underneath the V-Slot Gantry Plate.
• M5 tapped holes to allow mounting to the V-Slot Gantry Plate.
• 3 holes that allow for mounting of Dual V-Wheels.
• Width Mates to another plate allowing for the spacing of a gantry or other system

Application
