The plate designs are used on QueenBee PRO CNC Machine. It has added touches to increase the performance and design of the machine.
All the plates supplied with the kit are manufactured from 6063-T5 Aluminium. The plates are then shot blast and anodized in matt black, to give a very clean finish.
Specifications:
-
- Model: QBP001-1
- Material: Aluminium
- Colour:Black anodized
- Set Include: 13 PCS
- Thickness: 10mm
Features:
- Upgraded Plate Set Design for all axis. The new plates have many key features including;Increasing the workable height
- Providing a solution for linear rail motion
- Correctly aligning the lead screw motion system
- Anodised thicker plates
- Additional mounting options for increasing overall rigidity
- Smarter design to allow for easy adjustments of parts after assembly

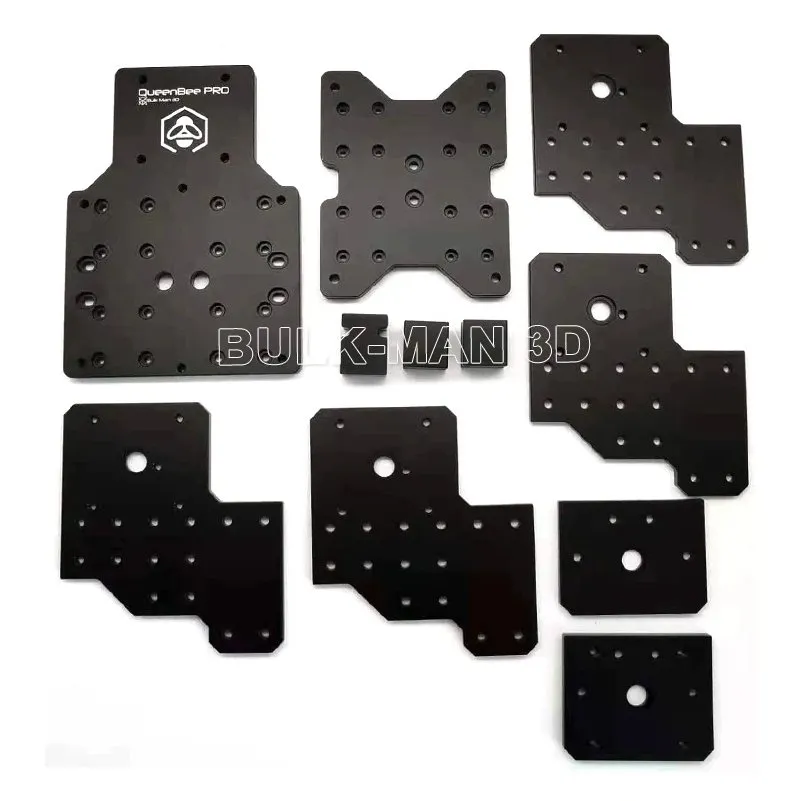

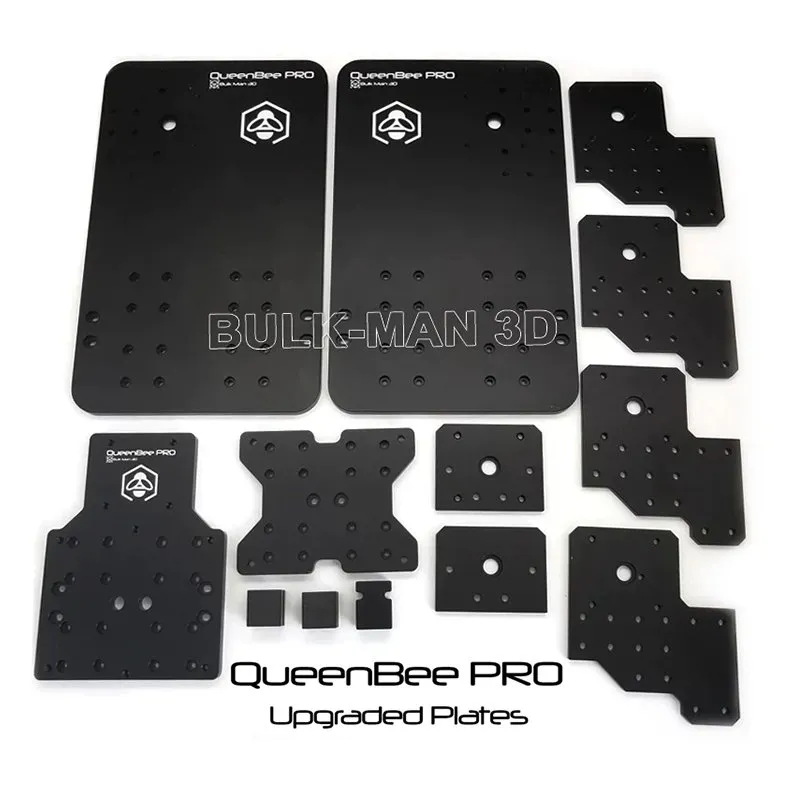

Package Includes 13pcs with details below:
| Quantity | Item | Material | Surface Treated | Plate Thickness |

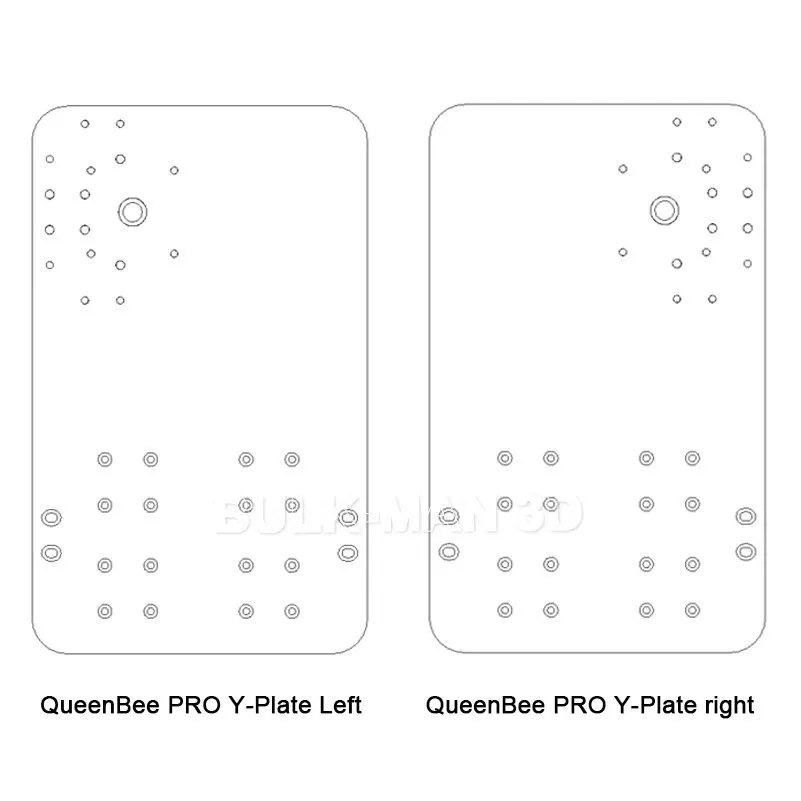

| 1 | QueenBee PRO Y-Plate Left | 6063-T5 Aluminum |
Black Anodized Precise Lasser Cutting |
10mm |
| 1 | QueenBee PRO Y-Plate right | 10mm | ||

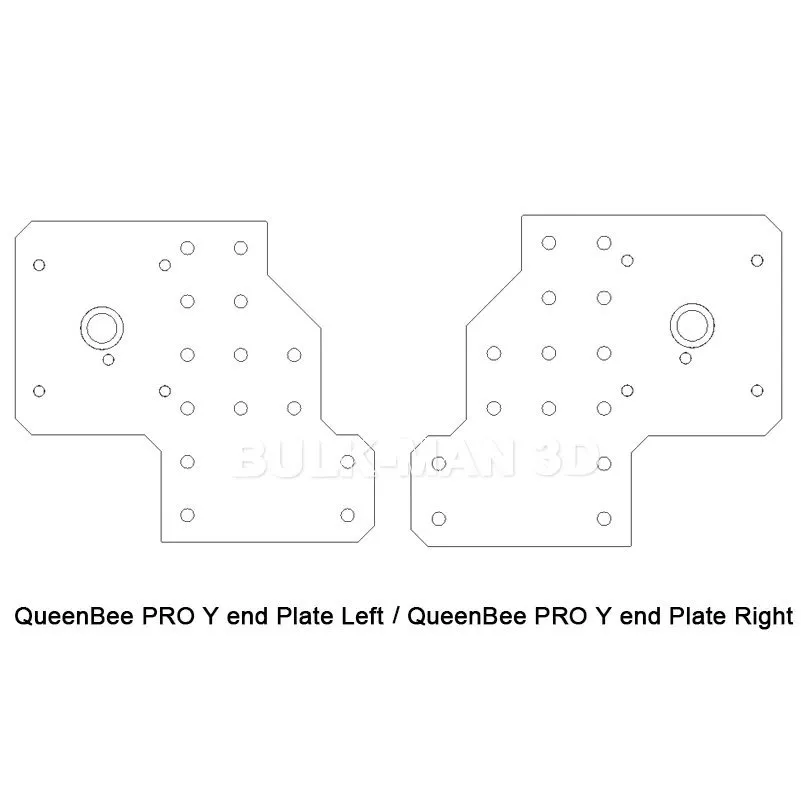

| 2 | QueenBee PRO Y end Plate Left | 6mm | ||
| 2 | QueenBee PRO Y end Plate Right | 6mm | ||

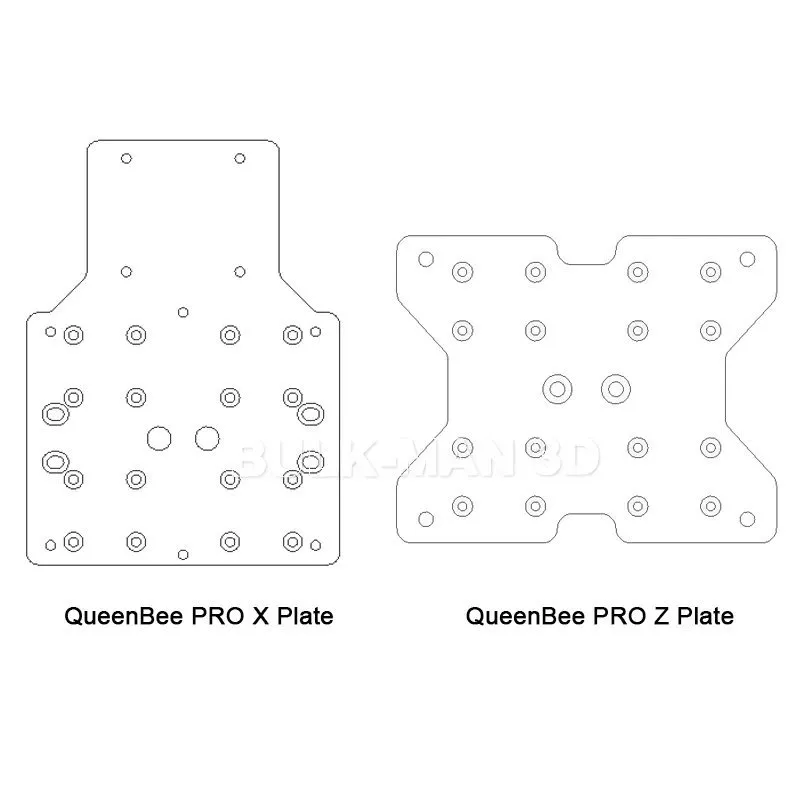

| 1 | QueenBee PRO X Plate | 10mm | ||
| 1 | QueenBee PRO Z Plate | 10mm | ||
| 2 | QueenBee PRO X Spacer Block | / | ||
| 1 | QueenBee PRO Z Spacer Block | / | ||
| 1 | End Mount Motor Plate | 6mm | ||
| 1 | End Mount Bottom Plate | 6mm |
