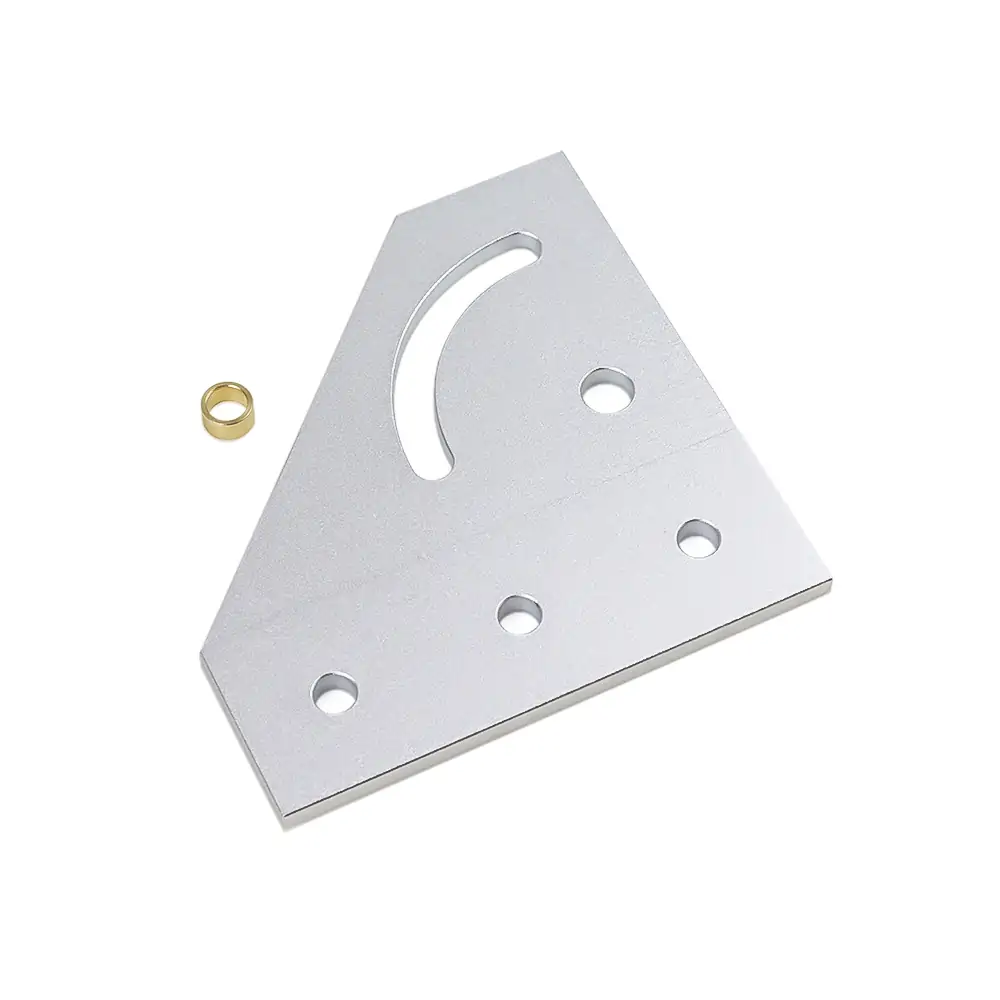

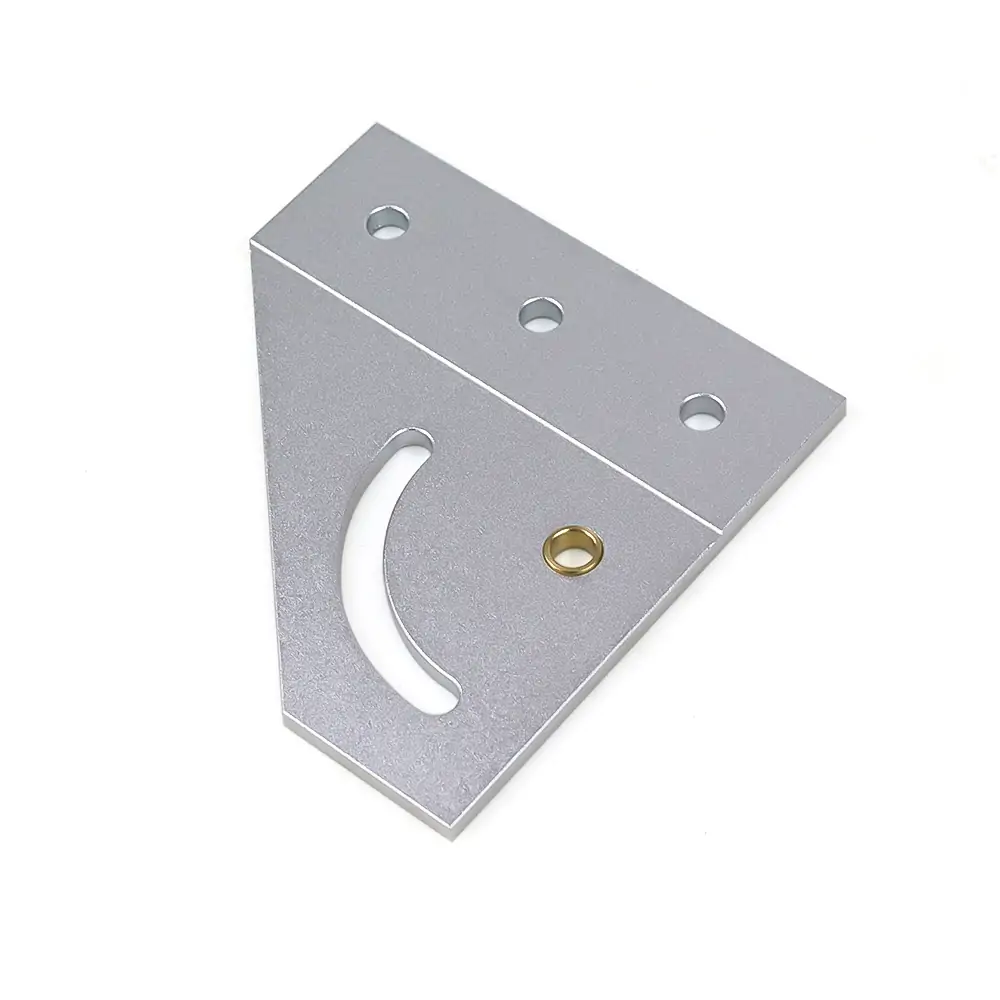

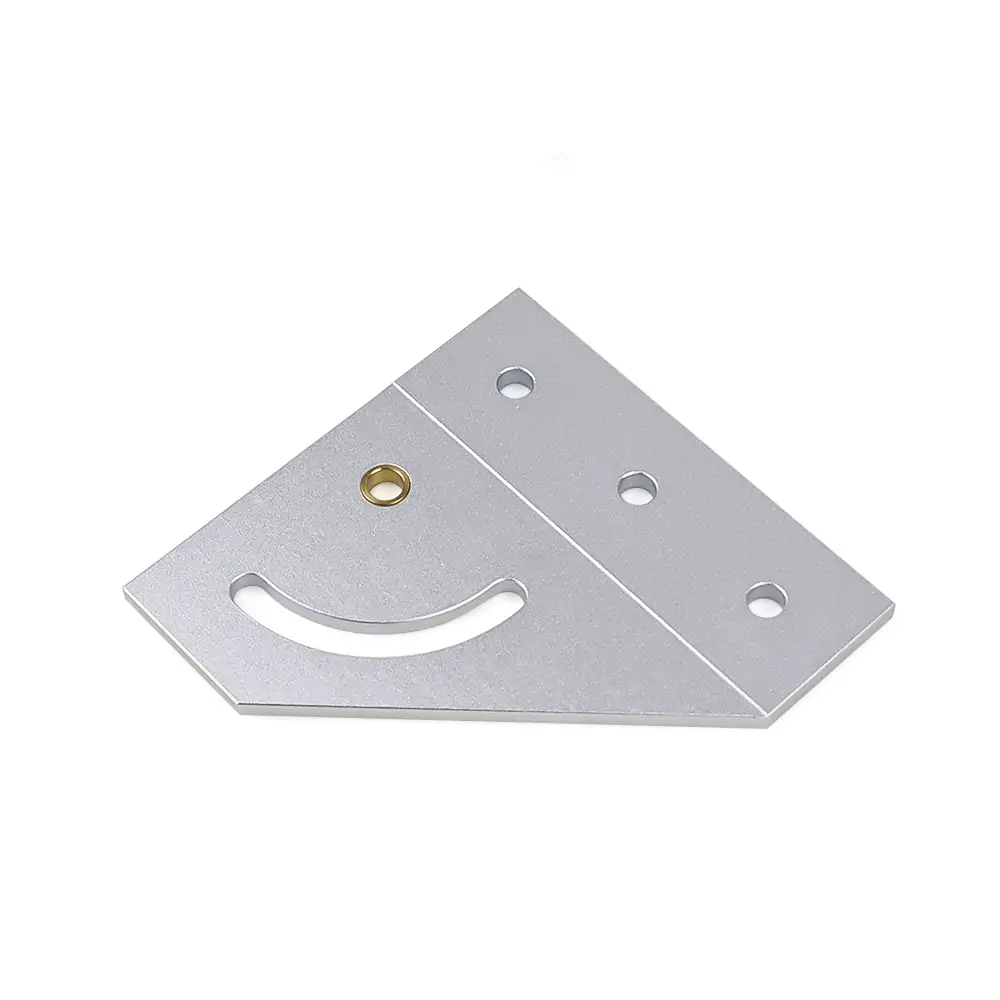

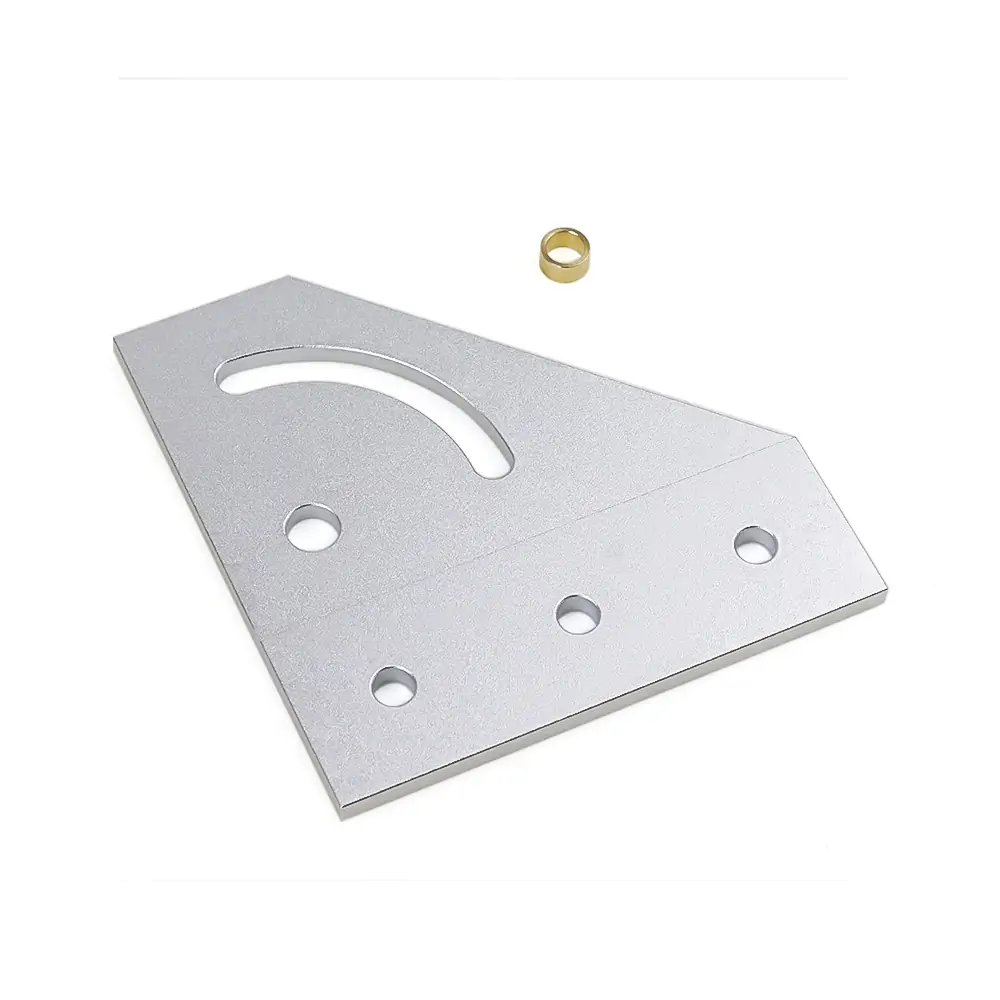

90-Degree Left/Right Pivot Plate

The 90 Degree Left/Right Pivot Plate is a robust solution for creating pivotal right-angle connections in your assemblies, ensuring smooth and reliable axial motion.

Unleash the potential of dynamic angular connections with the 90 Degree Left/Right Pivot Plate. Made from durable aluminium, this pivot plate is meticulously designed to provide a robust pivot point for 40 Series T-Slot Profiles. The permanently lubricated bronze bushings act as high-strength pivot points, ensuring smooth and reliable pivotal motion. Embrace the ease and precision. The 90-degree Left /Right Pivot Plate brings to your assembly endeavours, and watch your creative visions translate into tangible structures with enhanced functionality and aesthetic appeal. The left-hand or right-hand orientation of this pivot plate complements its right-hand counterpart, enabling a harmonious integration in diverse configurations.

Please Note:

This 90 Degree Left Pivot Plate is compatible with our 40 Series T-Slot Linear Extrusion.

Features:

• Robust Pivot Points: The bronze bushings ensure a sturdy and smooth pivoting action.
• 90-Degree Axial Motion: Provides flexibility in creating right-angle connections that can be folded down or adjusted as needed.
• Aluminium Construction: Lightweight yet durable, designed for long-term use.

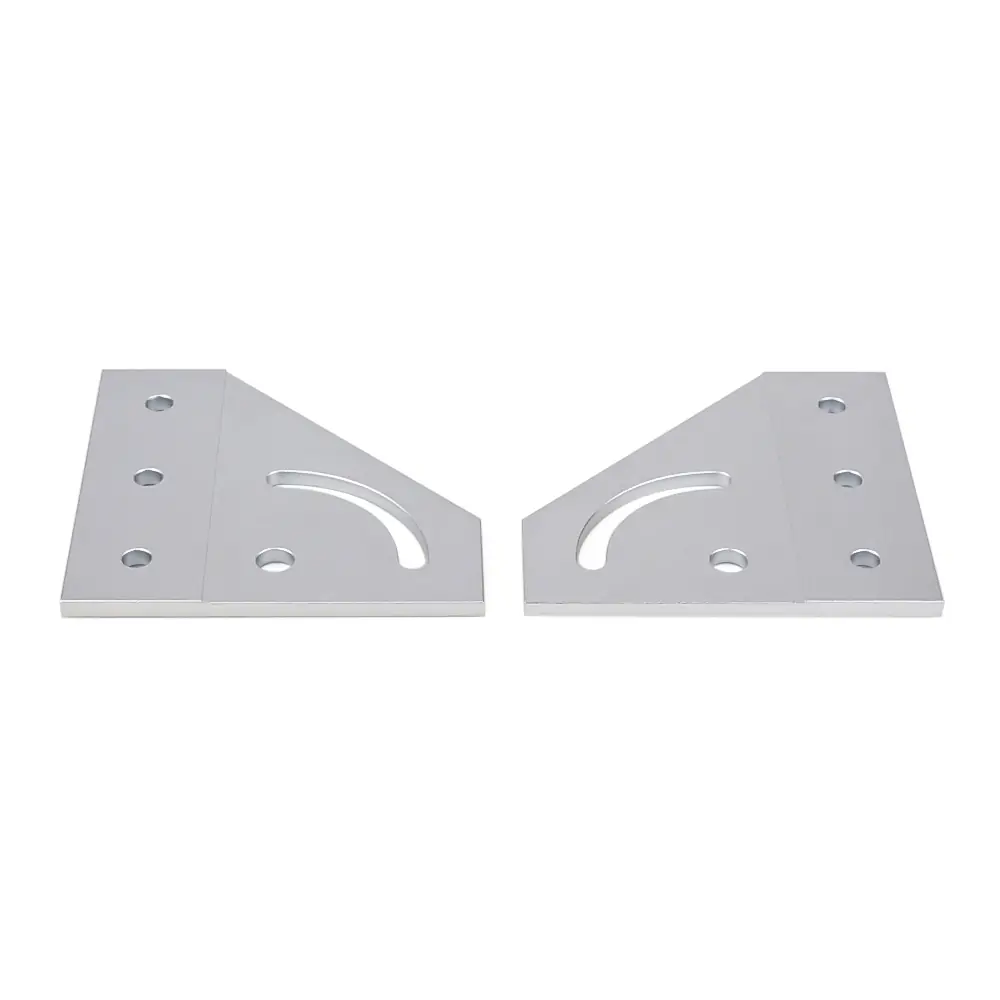

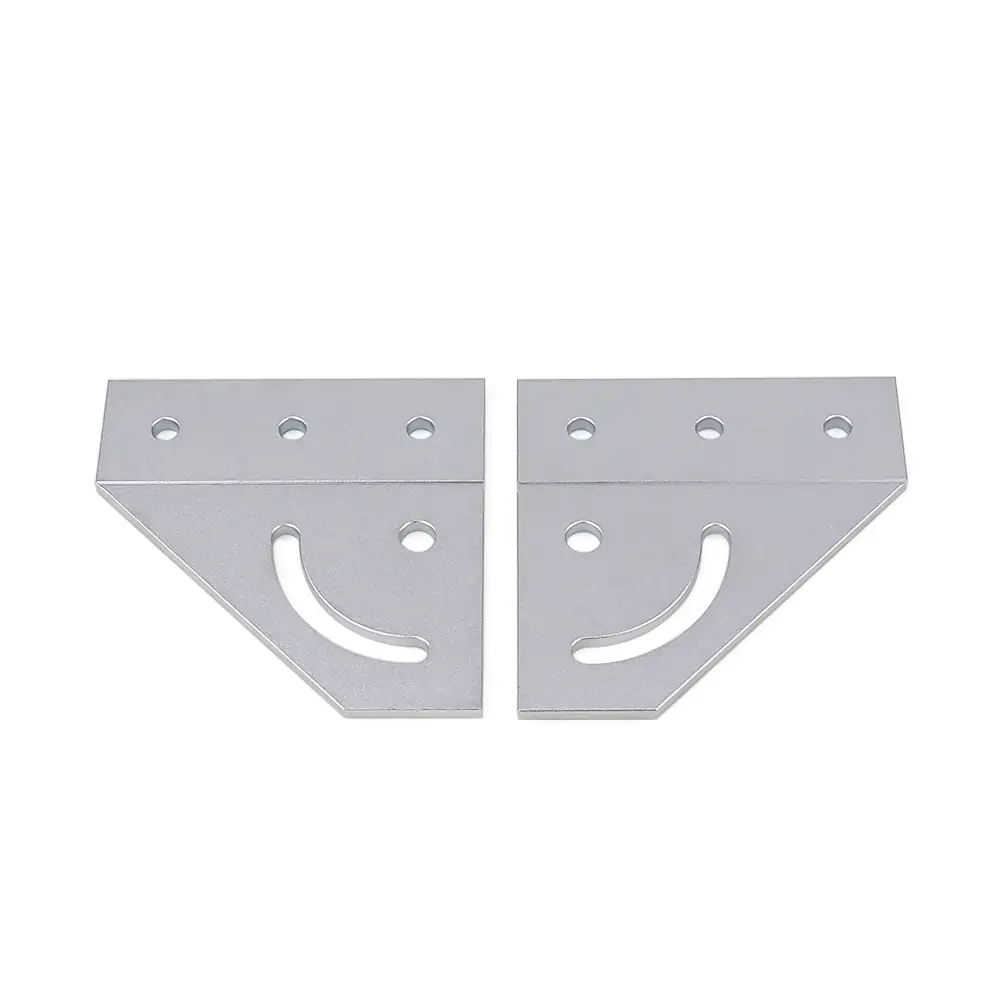

• Versatility: The availability of both left and right-hand versions allows for a wide range of applications.
• Ease of Assembly: Simplifies the creation of pivotal right-angle connections, enhancing the assembly experience.
• Reliable Performance: Engineered to provide a dependable solution for your pivotal connection needs.

Specifications

• Material: Aluminium 6063-T5
• Compatibility: 40 Series T-Slot Profiles
• Weight: 155g
• Dimensions: 120x120x6mm
