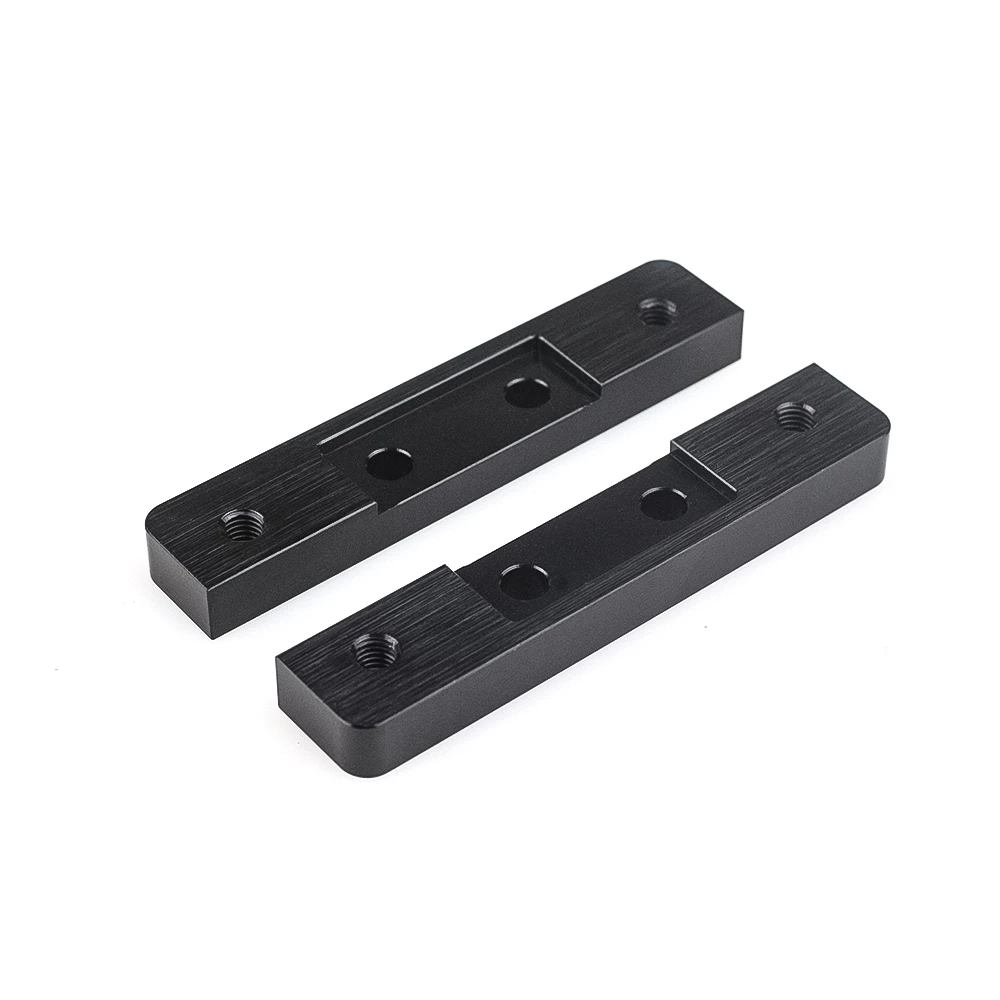

C-Beam Riser Plate Spacer Block

Specifications:

• SKU: PL18
• Item Name:Riser Plate
• Material: Aluminium
• Size: T8mm x 14.87mm x 77.5mm
• M5 tapped holes to allow mounting to the C-Beam Gantry Plate.
• 3 holes allow for mounting of V-Wheels.
• Riser Plates come in sets of 2, for your convenience.
• Mounts with 4 x 10 mm Low Profile Screws
• Surfaced: Brushed and Anodized

Feature:

• This C-Beam Riser Plate was specially designed to be used in conjunction with the C-Beam Gantry Plate.
• The Riser Plate allows you to raise the C-Beam Gantry Plate up away from the rail 12mm so that you can run transmission components such as a belt drive or threaded rod underneath the C-Beam Gantry Plate.

Application:
