OpenRail Gantry Plate 2020/2040/2060/2080

Specifications:

• SKU: PL25-2020 / PL25-2040 / PL25-2060 / PL25-2080
• Item Name: OpenRail Gantry Plate
• Material: 6061 – T6 Aluminum
• Finish: Anodized Aluminum
• Color: Black
• Size: 20mm, 40mm, 60mm and 80mm sizes to accommodate OpenRail mounted to corresponding sized extrusions.

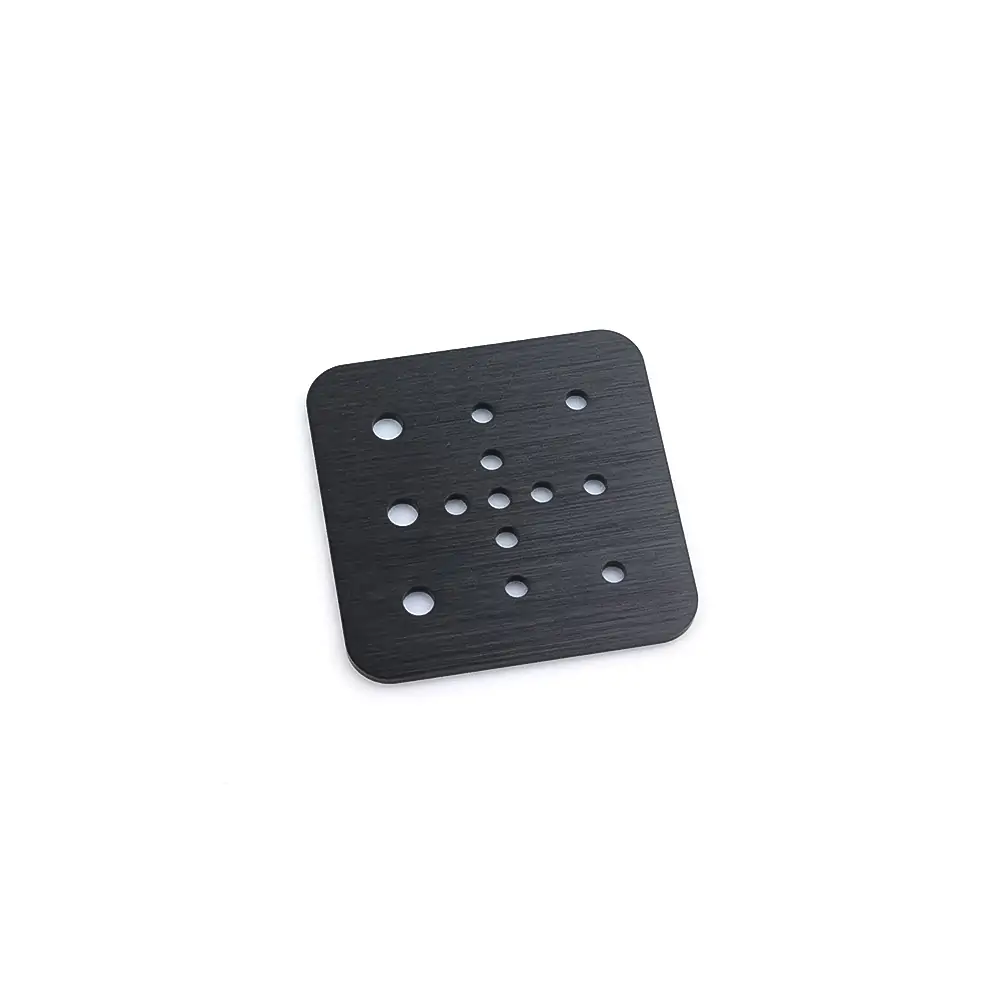

  • 2020 Series –  80 x 80 x T3.2mm
  • 2040 Series – 100 x 120 x T3.2mm

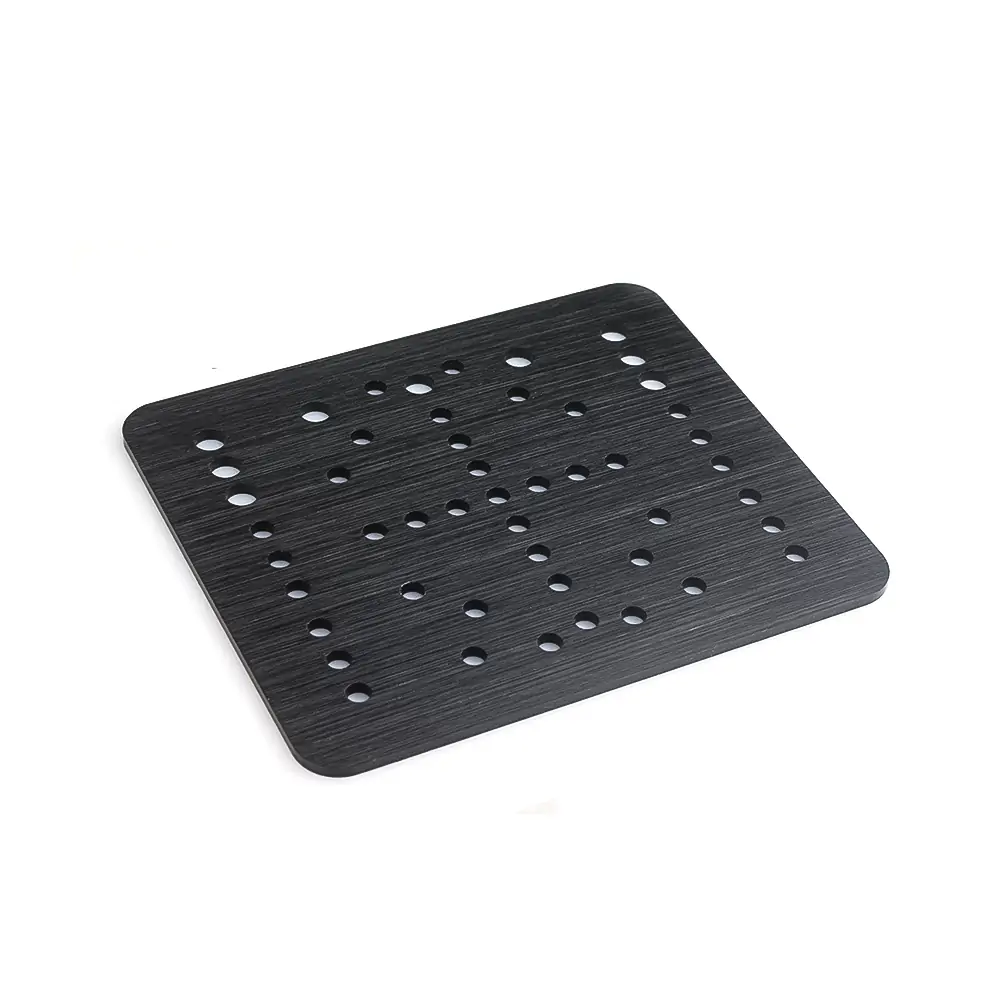

  • 2060 Series – 120 x 140 x T3.2mm

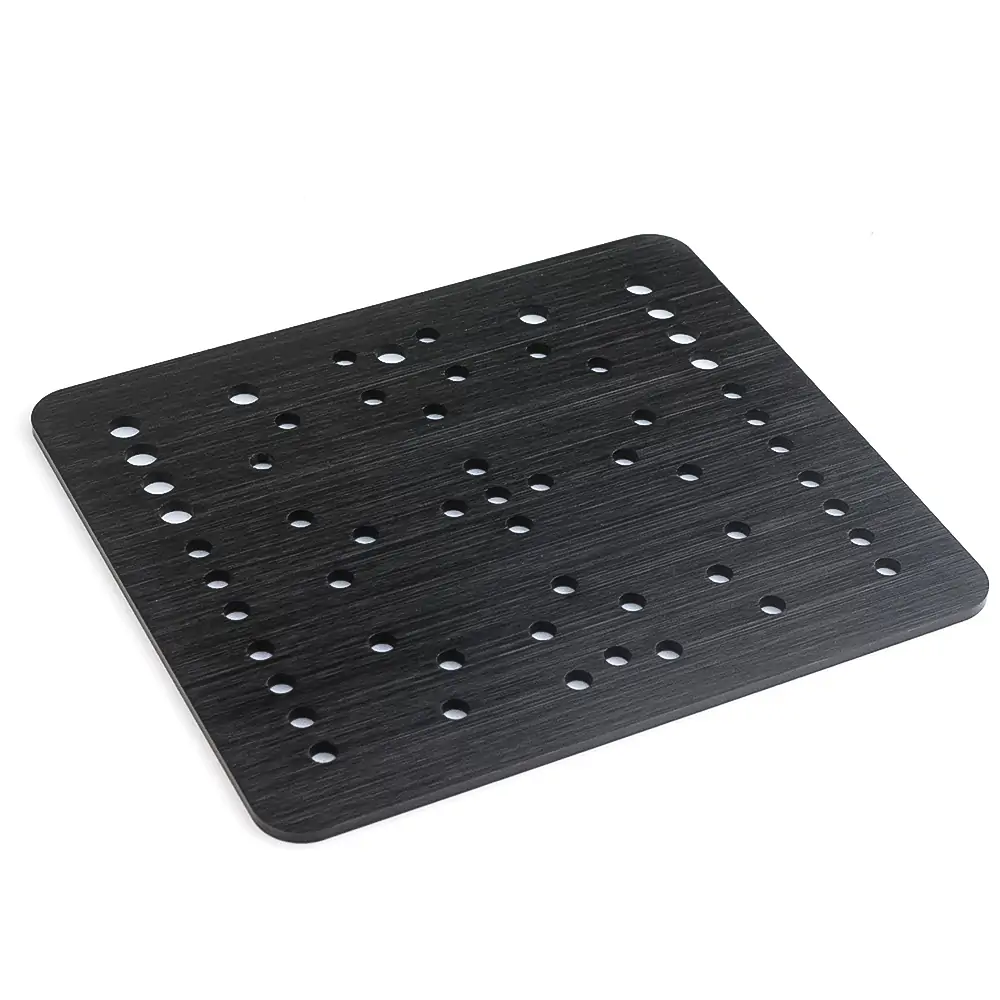

  • 2080 Series – 140 x 160 x T3.2mm



Feature:

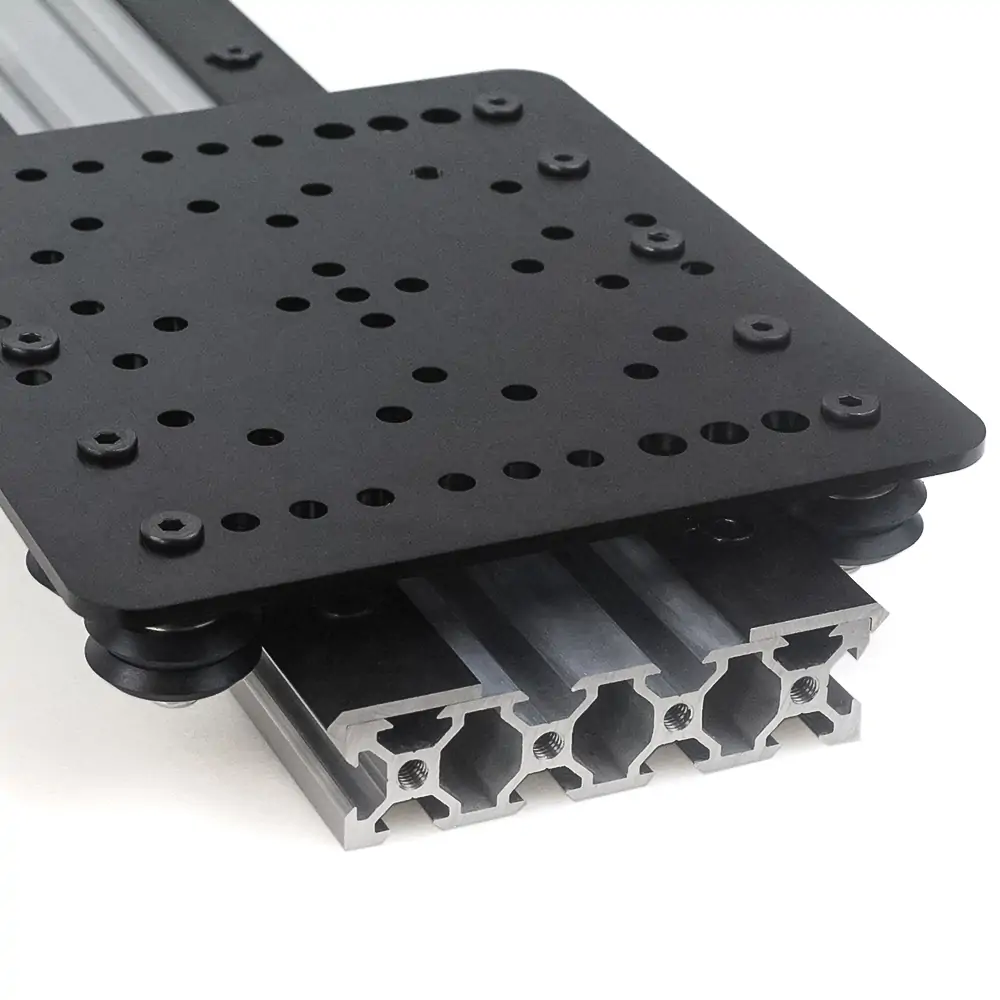

• These aluminium plates allow you to make gantry carts using Derlin Dual V Wheels. They are are designed to maximize the mounting options for linear guide systems.
• Quick assembly of motion system
• Multiple drilled hole configuration
• Delrin V Wheel Compatible
• Compatible with OpenRail



Please Note:

• These gantry plates are not compatible with V-Slot and should be used with Openrail only.
• The size you choose is the not the size of the plate, but the size of the rail it is designed to be used with.



Packaged Included:

• OpenRail Gantry Plate

---

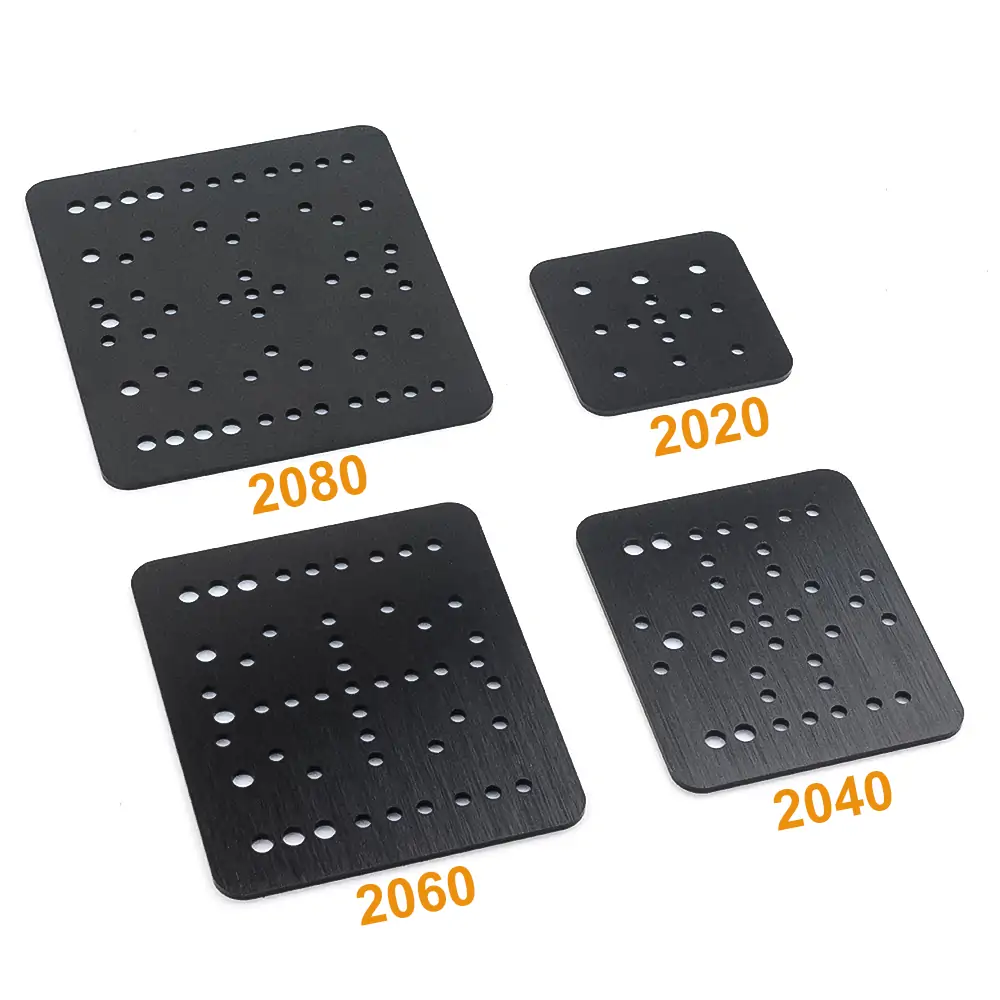

Products drawing display



2020 Series –  80 x 80 x T3.2mm

---

2040 Series –  100 x 120 x T3.2mm

---

2060 Series –  120 x 140 x T3.2mm

---

2080 Series –  140 x 160 x T3.2mm

---

Application



2020 Series –  80 x 80 x T3.2mm



---

2040 Series –  100 x 120 x T3.2mm



---

2060 Series –  120 x 140 x T3.2mm



---

2080 Series –  140 x 160 x T3.2mm



Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
