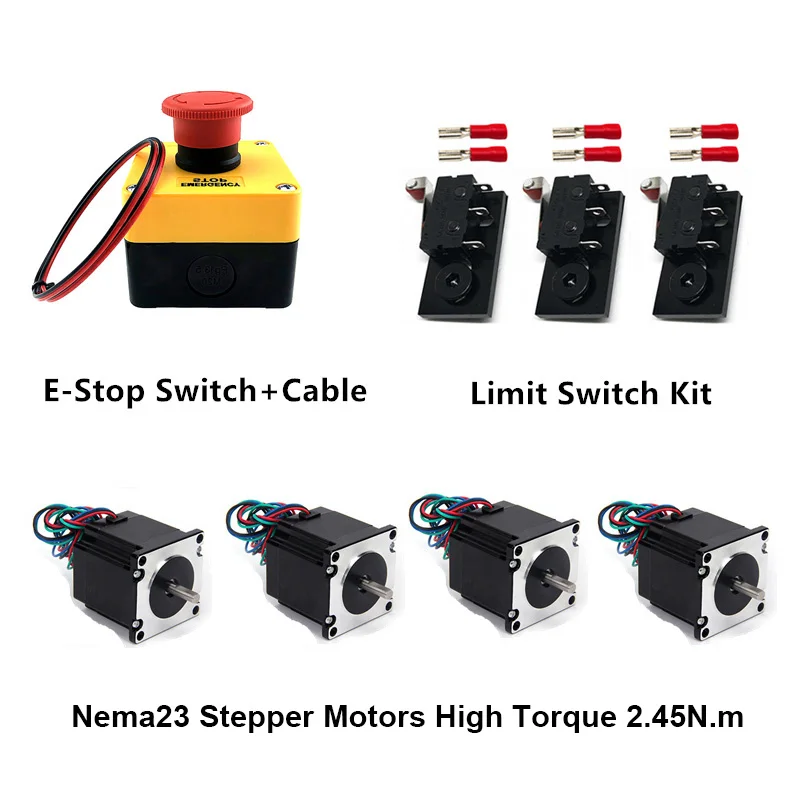

MACH3 4-Axis Motion Controller Bundle with Nema23 2.45N.m Stepper Motors

More Details:

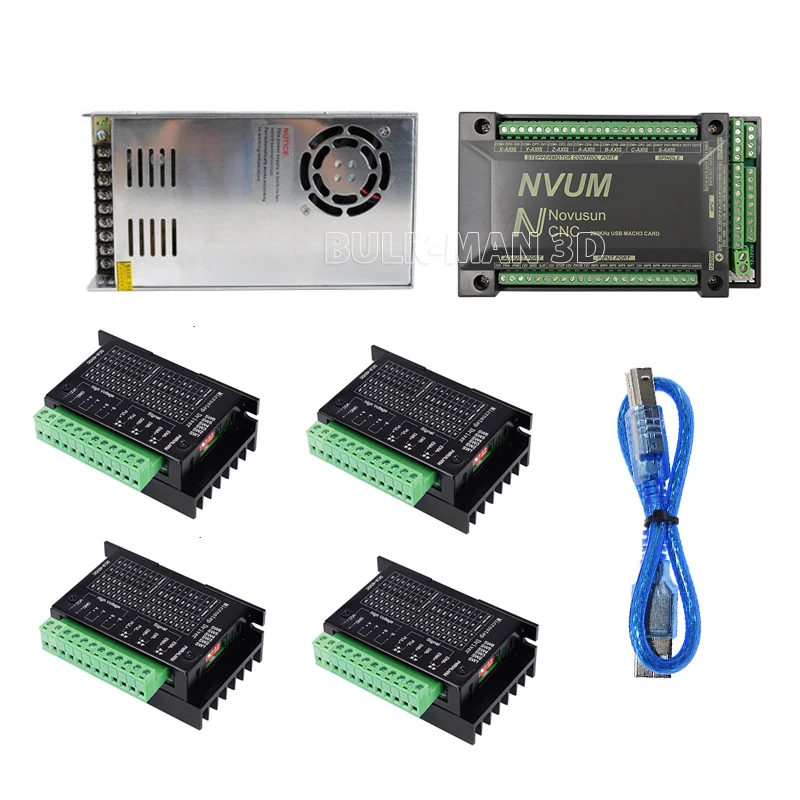

Controller: The Controller comes is made up of the following items:

• CNC Controller – 4 Axis USB – Novusun v2




  • Number Axis: 4
  • Inputs: 12 channel programmable input port
  • Output: 10 channel programmable output port
  • MPG: 1 channel standard hand-wheel pendant MPG port
  • PWM: 0-10V Spindle PWM output control
  • Software: Support MACH3
  • Interface: USB
  • DC/DC electrical isolation
  • Optocoupler isolation
  • Max 200khz stepper motor pulse output – suitable for most CNC milling machine system
  • Support extend encoder to adjust FRO, SRO, SJR parameters
  • ARM motion control chip
• Stepper Driver – TB6600 4A 40V
  • Input Current: 0-5A
  • Output Current: 0.5-4.0A
  • Power (MAX): 160W
  • Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
  • Dimension: 96x56x33 mm
  • Weight: 0.2 kg

Power:

• MEAN WELL Power Supply – 24V 350W
• Output Voltage-Channel: 24 V
• Output Power: 350.4 W
• Enclosed Case
• Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC
• Output Current-Channel: 14.6 A
• Mounting Style: Chassis
• Length: 215 mm
• Width: 115 mm
• Height: 30 mm
• Input Frequency: 47 Hz to 63 Hz
• Unit Weight: 760 g

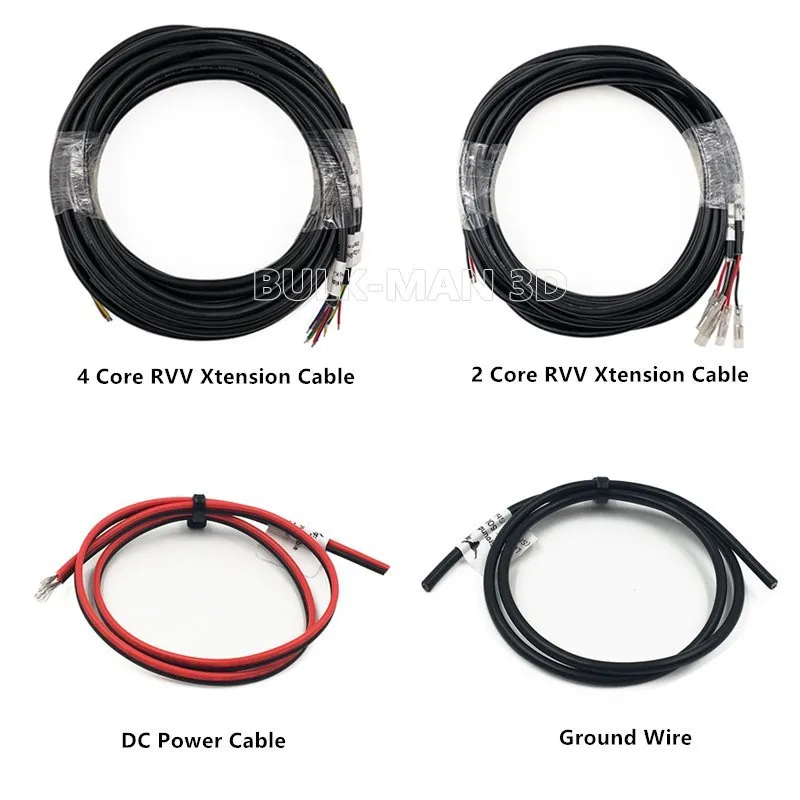

Cables & Connectors:

• 4 Core Shielded Stepper Cables terminated at one end with JST SM 4P (Connector to Stepper Motors):
  • 1 x 3000mm
  • 2 x 4500mm
  • 1 x 4750mm

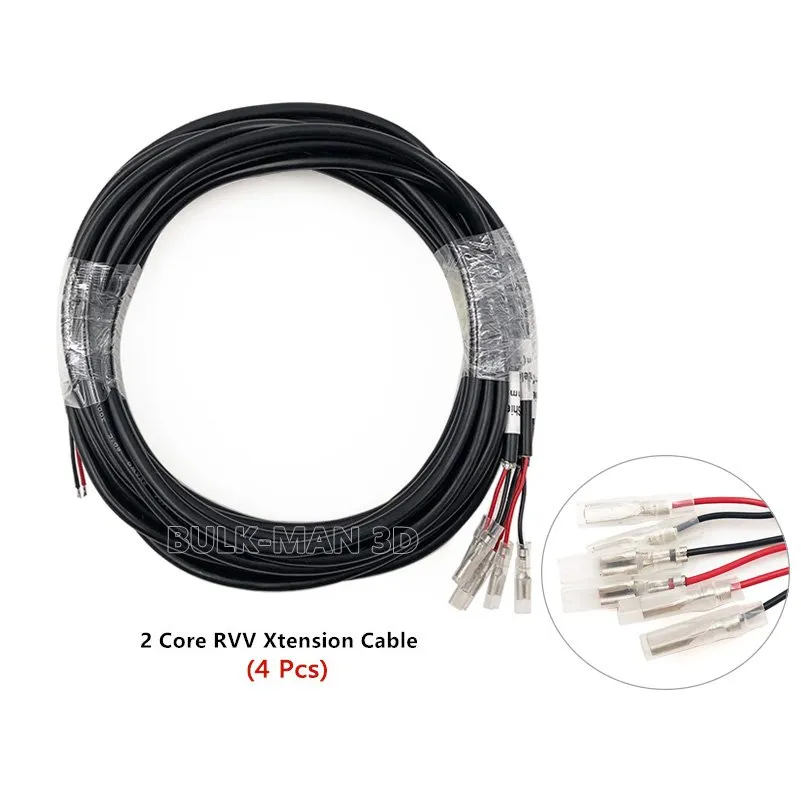

• 2 Core Shielded Signal Cables terminated at one end with JST SM 2P:
  • 1 x 1500mm
  • 1 x 4500mm
  • 1 x 4750mm
• DC Power Cable
  • 22 AWG
  • 1 x 500mm
• Ground Wire
  • 20 AWG
  • 1 x 500mm
• EStop Cable
  • 22 AWG
  • 1 x 1000mm

Signal:

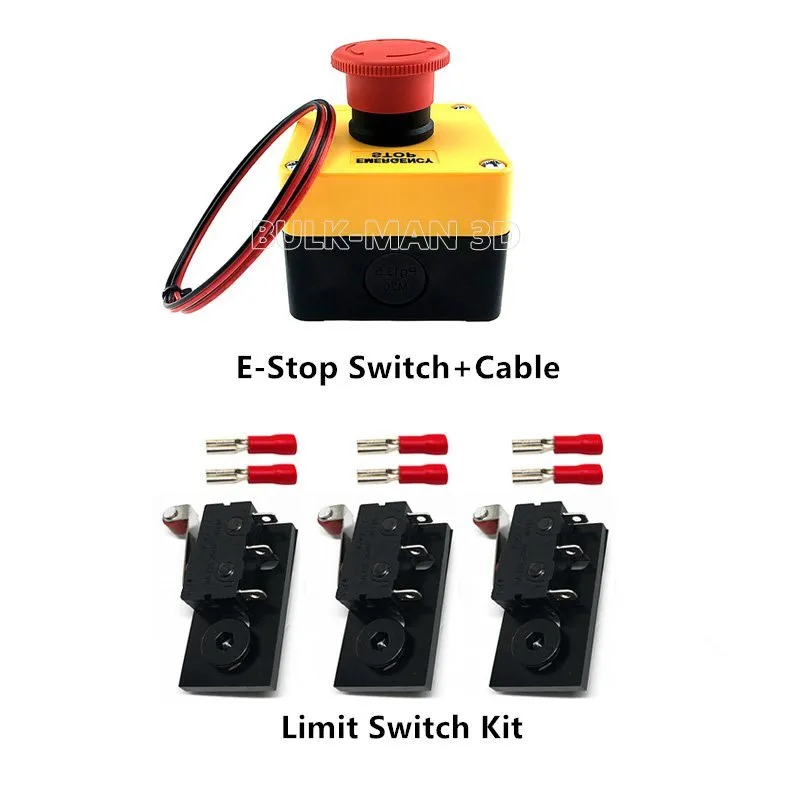

• Limit Switch Kits
  • 3 x Micro Limit Switch
  • 3 x Limit Switch Plate
  • 6 x M3 10mm Cap Head Screw
  • 3 x M5 8mm Low Profile Screw
  • 3 x M5 Drop-in Tee Nut
  • NOTE: The holes in the switch will need to be opened a little (3mm drill bit) to allow for the M3 screw or alternatively you can use a M3 tap to cut a thread into the plastic.
• EStop Switch
  • Max Current: 10A
  • Max Voltage AC 660V
  • Rated Load:
    • AC: 220VAC/6A, 380VAC/4A, 660VAC/2A
    • DC: 440VDC/0.3A,  220VDC/0.5A, 110VDC/1A
  • TYPE: N/C
  • Withstand Voltage: 2500V /60S
  • Temperature: -25°~+55°
  • Contact resistance:  <25mΩ

Regarding our Shielded Cables:

• The 4 core and 2 core shielded cables by bulkman3d are cut in the proper length for customers convenience which meet the needs and multifunction of different size of our CNC Machine.

• This is again insulated by a thick clear layer of thermoplastic sheath insulation. Suitable for applications requiring electrical/electronic screening of cable. 22AWG suitable for 300V DC and up to 80°C

Wiring Schematic:

NEVER connect or disconnections any wire while power is applied.
ALWAYS disconnect power before making any connections or disconnections.

Failure to do the above will result in damage to the stepper drivers.

Resources:

For latest drivers and manual files goto: https://www.nvcnc.net/nvum.html

Note:

A MACH3 licence is NOT included with this item. A licence can be purchased from www.machsupport.com
Note : Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.
