MACH3 USB 4-Axis Motion Controller Bundle

This MACH3 Controller Bundle contains all the hardware for powering and controlling your WorkBee, Ox CNC or other CNC machine.

The cables on this Bundle are designed for machines of the following sizes:

• 500 mm x 750 mm
• 750 mm x 750 mm
• 750 mm x 1000 mm
• 1000 mm x 1000 mm
• 1000 mm x 1500 mm
• 1500 mm x 1500 mm

Controller

• CNC Controller – 4 Axis USB – Novusun v2
• Number Axis: 4
• Inputs: 12 channel programmable input ports
• Output: 10 channel programmable output ports
• MPG: 1 channel standard hand-wheel pendant MPG port
• PWM: 0-10V Spindle PWM output control
• Software: Support MACH3
• Interface: USB
• DC/DC electrical isolation
• Optocoupler isolation
• Max 200khz stepper motor pulse output – suitable for most CNC milling machine system
• Support extend encoder to adjust FRO, SRO, SJR parameters
• ARM motion control chip
• Stepper Driver – TB6600 4A 40V
• Input Current: 0-5A
• Output Current: 0.5-4.0A
• Power (MAX): 160W
• Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
• Dimension: 96 x 56 x 33 mm
• Weight: 0.2 kg

Power

• MEAN WELL Power Supply – 24V 350W
• Output Voltage-Channel: 24 V
• Output Power: 350.4 W
• Enclosed Case
• Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC
• Output Current-Channel: 14.6 A
• Mounting Style: Chassis
• Length: 215 mm
• Width: 115 mm
• Height: 30 mm
• Input Frequency: 47 Hz to 63 Hz
• Unit Weight: 760 g

Cables & Connectors

4 Core Shielded Stepper Cables terminated at one end with JST SM 4P (Connector to Stepper Motors):

• 1 x 2500 mm
• 2 x 3250 mm
• 1 x 3500 mm

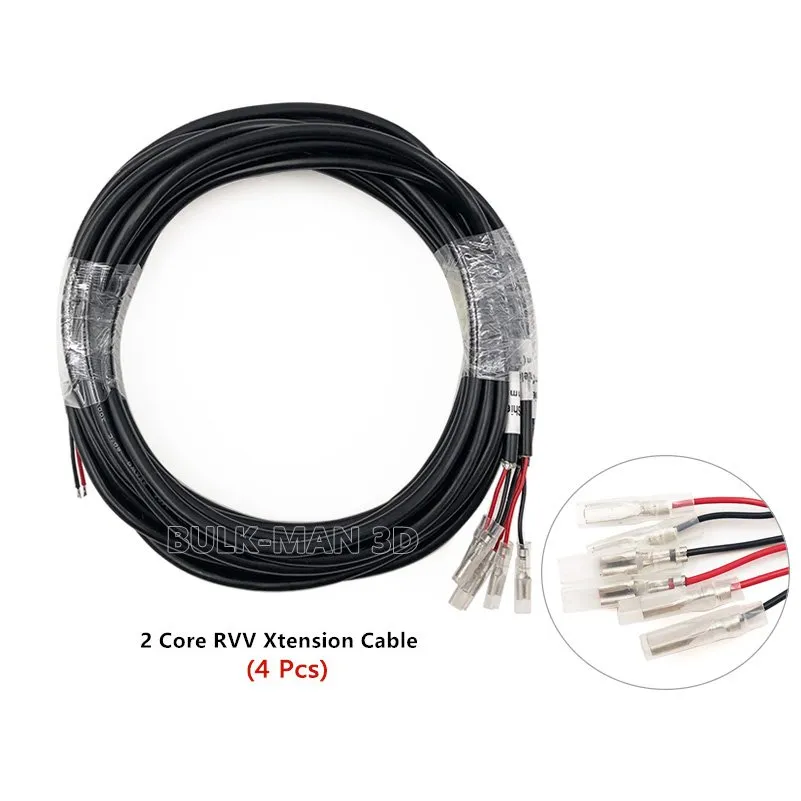

2 Core Shielded Signal Cables terminated at one end with JST SM 2P

• 1 x 1500 mm
• 1 x 3250 mm
• 1 x 3500 mm

DC Power Cable

• 22 AWG
• 1 x 500 mm

Ground Wire

• 20 AWG
• 1 x 500 mm

EStop Cable

• 22 AWG
• 1 x 1000 mm

Limit Switch Kits

• 1 x Micro Limit Switch
• 1 x Limit Switch Plate
• 2 x M3 10 mm Cap Head Screw
• 1 x M5 8 mm Low Profile Screw
• 1 x M5 Drop-in Tee Nut

NOTE: The holes in the switch will need to be opened a little (3mm drill bit) to allow for the M3 screw or alternatively you can use a M3 tap to cut a thread into the plastic.

EStop Switch

• Max Current: 10 A
• Max Voltage: AC 660 V.

Rated Load

• AC: 220V AC / 6 A, 380V AC / 4 A, 660V AC / 2 A
• DC: 440V DC / 0.3 A, 220V DC / 0.5 A, 110V DC / 1 A
• TYPE: N/C
• Withstand Voltage: 2500 V /60 S
• Temperature: -25° ~ +55°
• Contact resistance: <25 mΩ

Bundle Includes

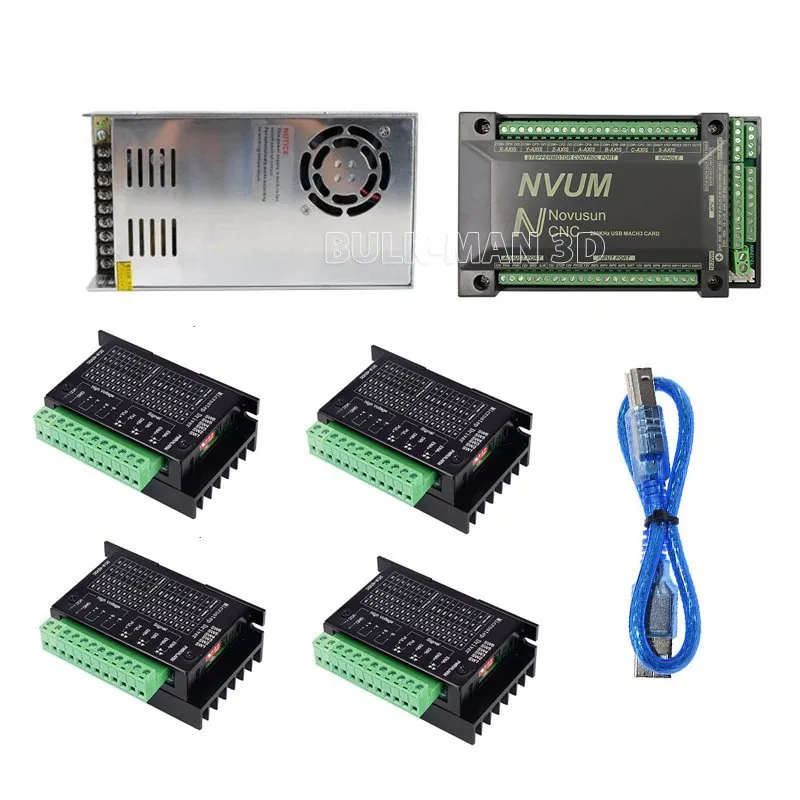

• 1 pcs CNC Controller – 4 Axis USB – Novusun v2
• 4 pcs Stepper Driver – TB6600 4A 40V
• 1 pcs MEAN WELL Power Supply – 24V 350W
• 4 pcs 4 Core Shielded Cable (use for X Axis, Y Axis, Z Axis and A Axis)
• 3 pcs 2 Core Shielded Cable (use for X Axis, Y Axis, Z Axis)
• 1 pcs DC Power Cable
• 1 pcs Ground Wire

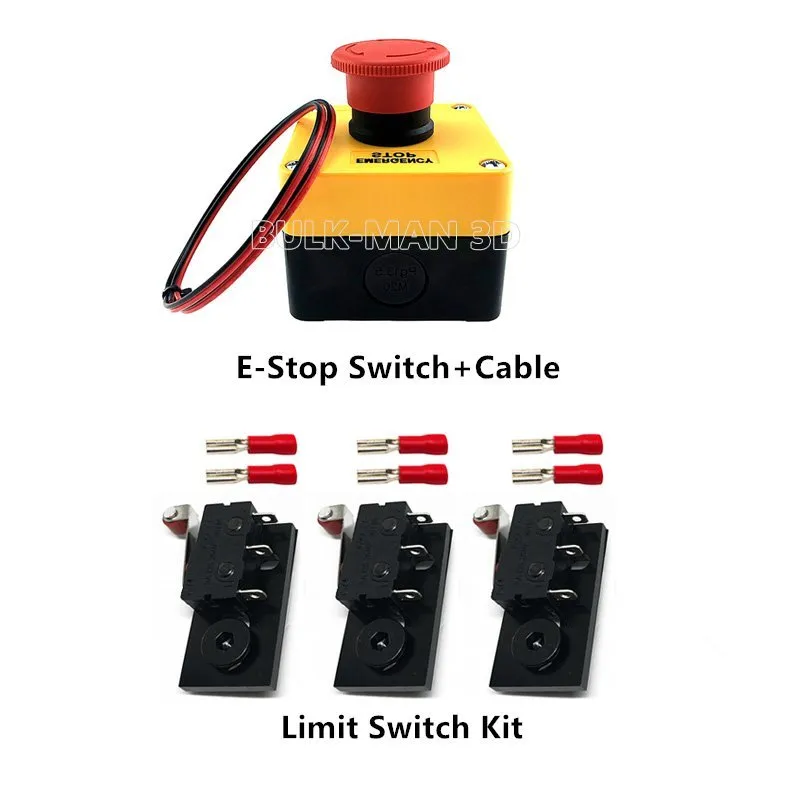

• 1 pcs E-Stop Switch + E-Stop Cable
• 3 pcs Limit Switch Kits

Wiring Schematic:

IMPORTANT NOTE:
NEVER connect or disconnections any wire while power is applied.
ALWAYS disconnect power before making any connections or disconnections.

Failure to do the above will result in damage to the stepper drivers.

Note:
A MACH3 licence is NOT included with this item. A licence can be purchased from www.machsupport.com

Note : Any Mains power connections must be installed by a Licensed electrician or suitability qualified person.
