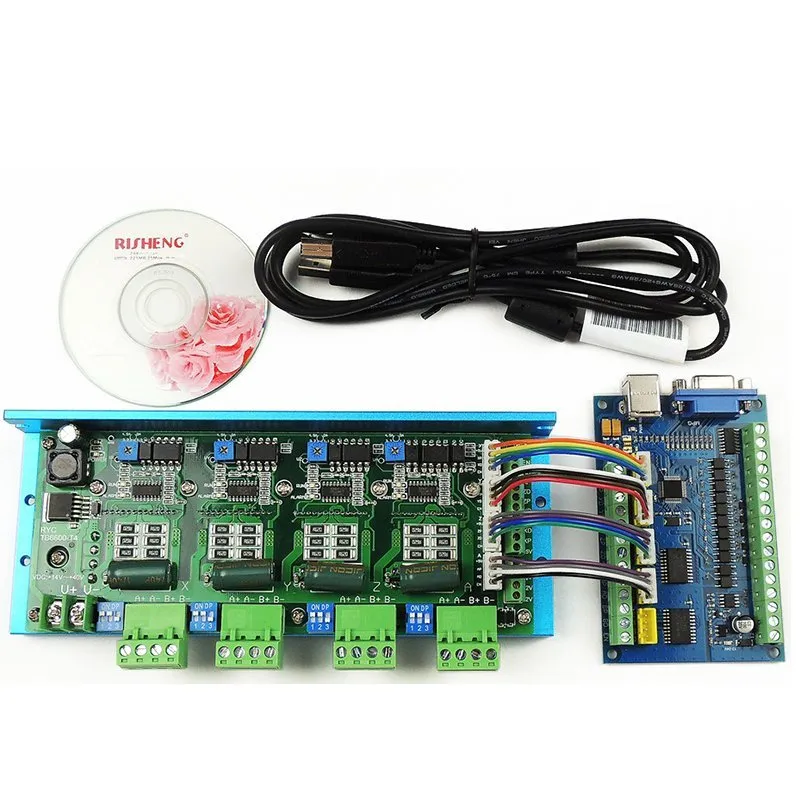

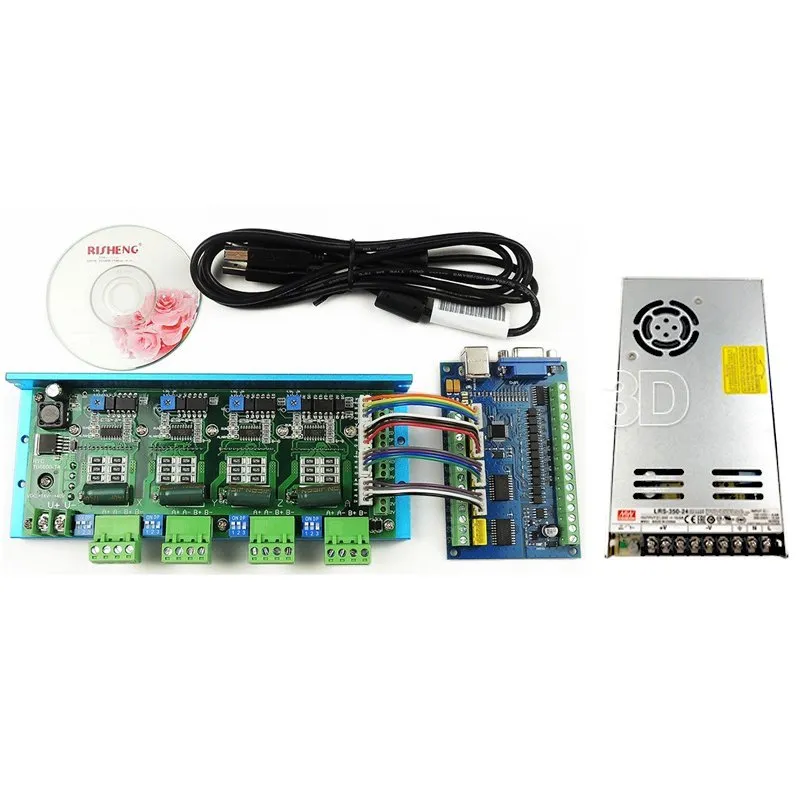

MACH3 USB 5-Axis STB5100 Motion Controller Bundle

More Details:

• MEAN WELL Power Supply – 24V 350W
  • Output Voltage-Channel: 24 V
  • Output Power: 350.4 W
  • Enclosed Case
  • Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC
  • Output Current-Channel: 14.6 A
  • Mounting Style: Chassis
  • Length: 215 mm
  • Width: 115 mm
  • Height: 30 mm
  • Input Frequency: 47 Hz to 63 Hz
  • Unit Weight: 760 g

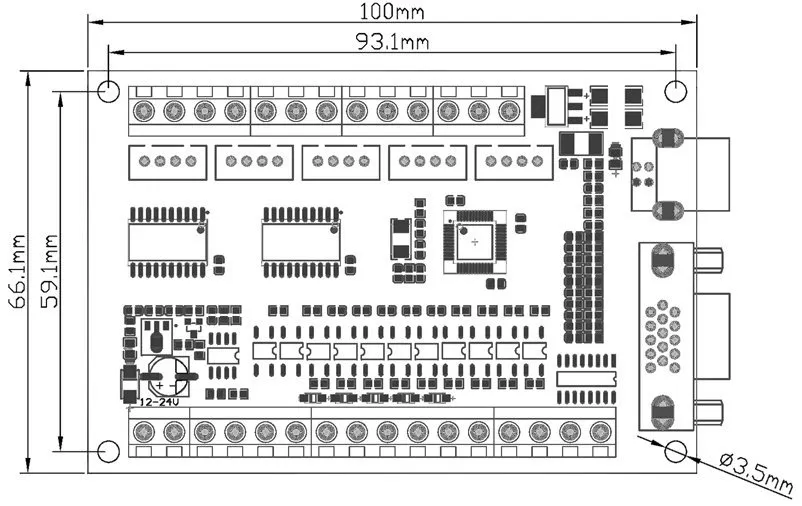

1.  Support for Windows XP, Windows 7 32/64bit, Windows8, Windows10 operating system;
2. Applicable to all versions of mach3 software;
3. Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;
4. The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on pulse；
5. Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;
6. Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle’s speed, start and stop;
7. Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipments;
8. Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, used for manual control of machine tools;
9. Add the enable signal interface, can be used to control the driver enable signal;
10. The power of control card: voltage 12-24VDC, current more than 500MA.

TB6600-T4 stepper motor driver board’s features:

1. DC Power input type:+14V~40V；
2. Output current:0～4.5A，current stepless adjustable；
3. Support for CNC controlled 5-Axis, can connect five stepper motor driver or servo driver;

4. The maximum output pulse frequency is 100KHz, and the pulse width can automatically change with the pulse frequency, which can be applicable to the closed-loop driver of strict requirements on the pulse；
5.  Five optocoupler isolation input signal interfaces: limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected;
6. Inverter control signal interface (optocoupler isolation): Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle’s speed, start and stop;
7. Four universal output signal interfaces, the maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders and other equipment;
8. Support for external connect electronic hand wheel, use HDR15 interface to connect electronic handwheel, used for manual control of machine tools;
9. Add the enable signal interface, can be used to control the driver enable signal;
10. The power of the control card: voltage 12-24VDC, current more than 500MA.
