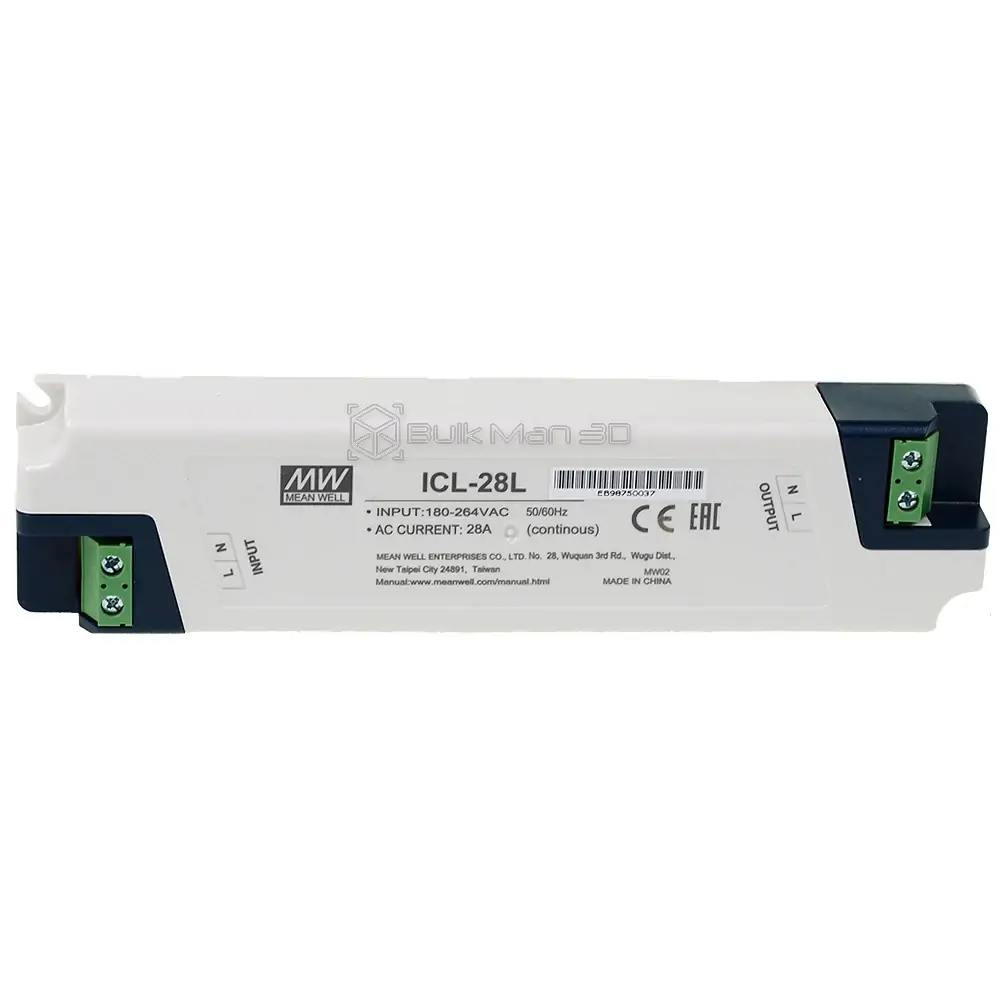

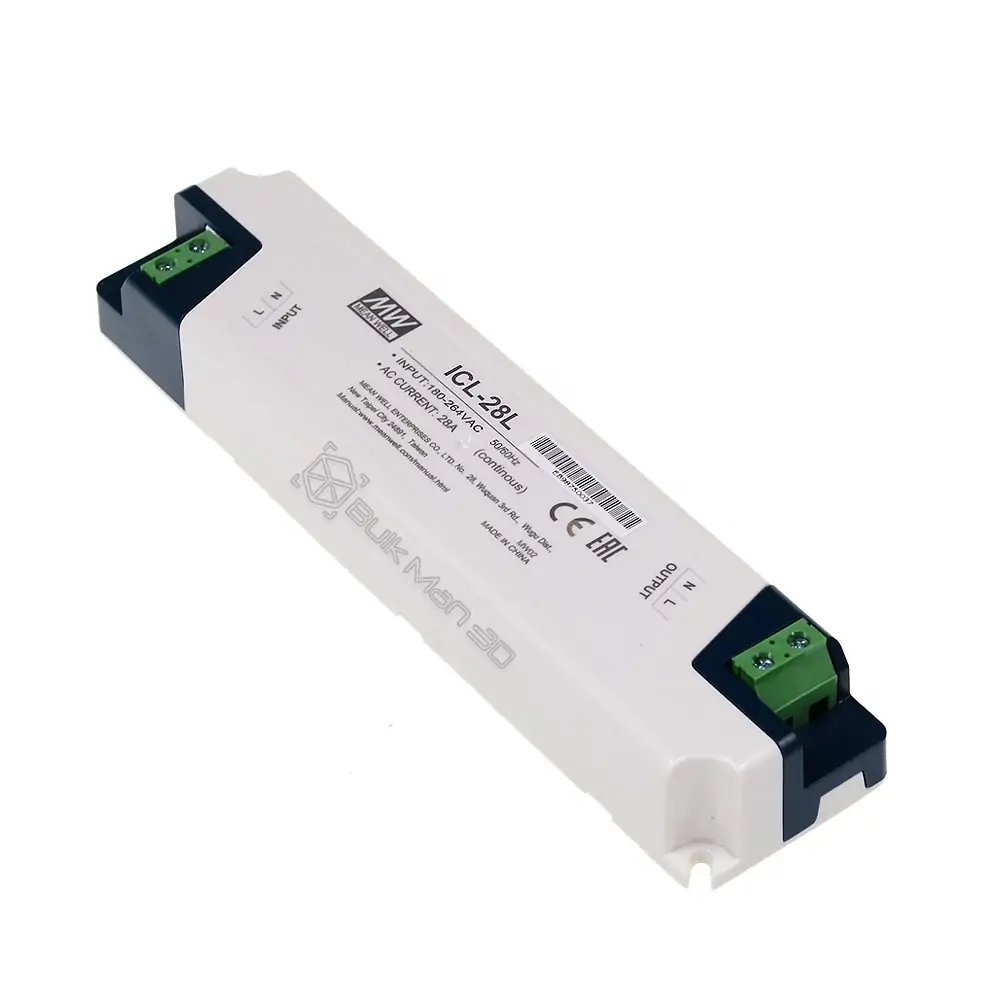

Mean Well ICL-28 Switching Power Supply

Description:

The ICL-28 is a 28A inrush current limiter that can be used to reduce the high starting current due to capacitive load or inductive causing the circuit breaker to be false triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-28.

Features:

• DIN Rail type or terminal block mounted
• 48A inrush limiting current, 28A continuous
• 180-264VAC AC inp
• Integrated bypass relay, no simple NTC
• Internal thermal protection
• Installed on DIN Rail TS-35/7.5 or 15(ICL-28R)
• -30-+70°C wide working temperature
• Over voltage category III
• Operating altitude up to 5000 meters

Applications:

• Allow connecting multiple power supply at same line
• Allows smaller and faster circuit breaker
• Inductive and capacitive load
• Protects against unintended trigger of circuit breaker
