57 Stepper Motor Right Angle Mount Plate

This is a new high-quality stepper motor mounting mount bracket. It is made of durable aluminum and finished with black anodize. Designed to work with the typical faceplate mounting holes of a NEMA 23 Stepper Motor.

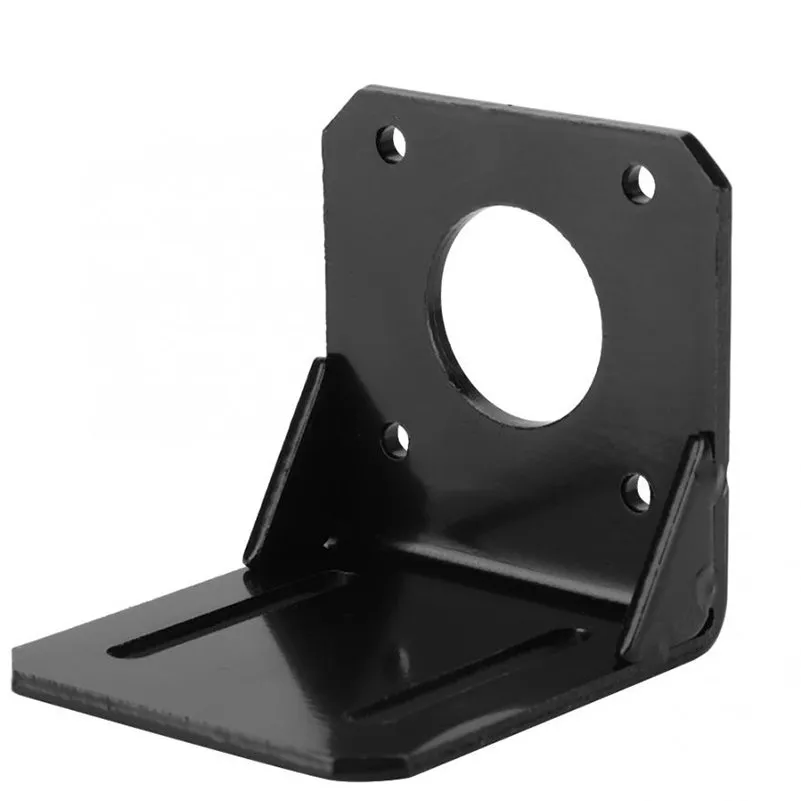

Two supports are welded in the corner along the bend of the bracket which provides extra reinforcement.

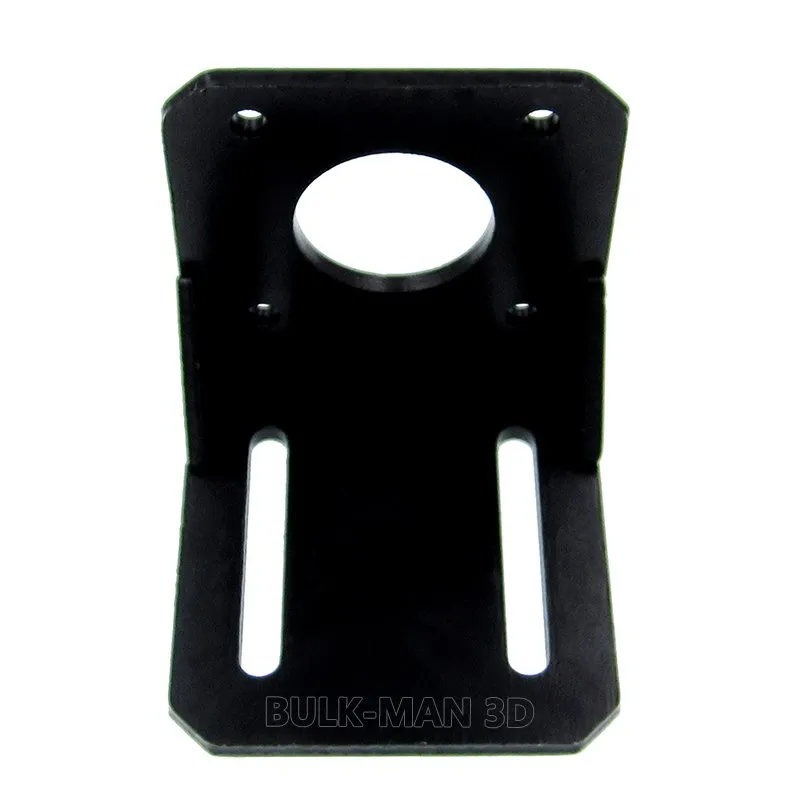

This Bracket also features two long 4 mm wide slots for mounting it to a surface. These slots are spaced at 40 mm, so they fit directly onto our V-slot rails.

Specifications:

• 100% brand new and high quality
• Item Name: 57 Stepper Motor Right Angle Mount Plate
• SKU: BR0008-1
• Material: Carbon Steel
• Color: Black
• Size: 47mm Hole Spacing for 57 Stepper Motors

To mount to the rail you’ll need:

• 4 x M4 6mm Screws
• 4 x M4 Sliding T-Nuts

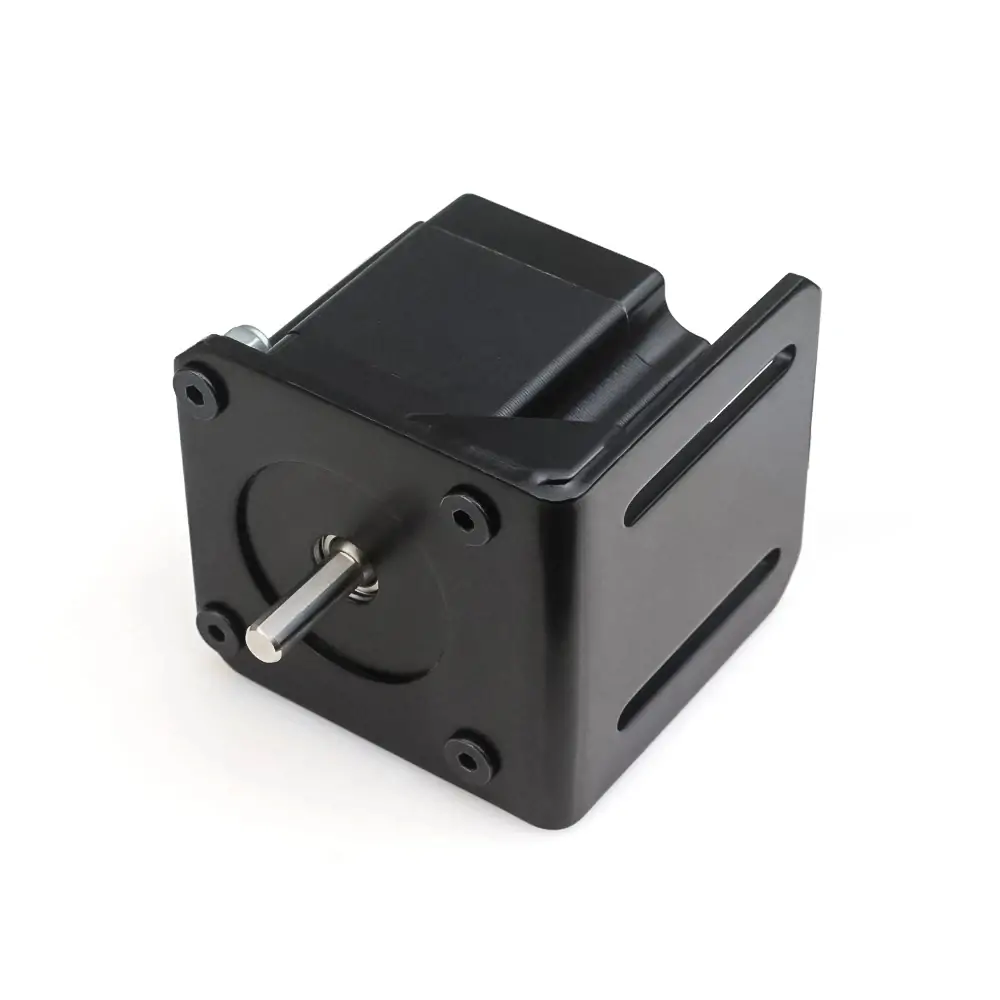

To mount one NEMA23 Stepper Motor you’ll need:

• 4 x M5 15 mm Screws
• 4 x M5 Lock Nuts

NOTE: Above Fixings are not included with this item.

Application:
