Description：

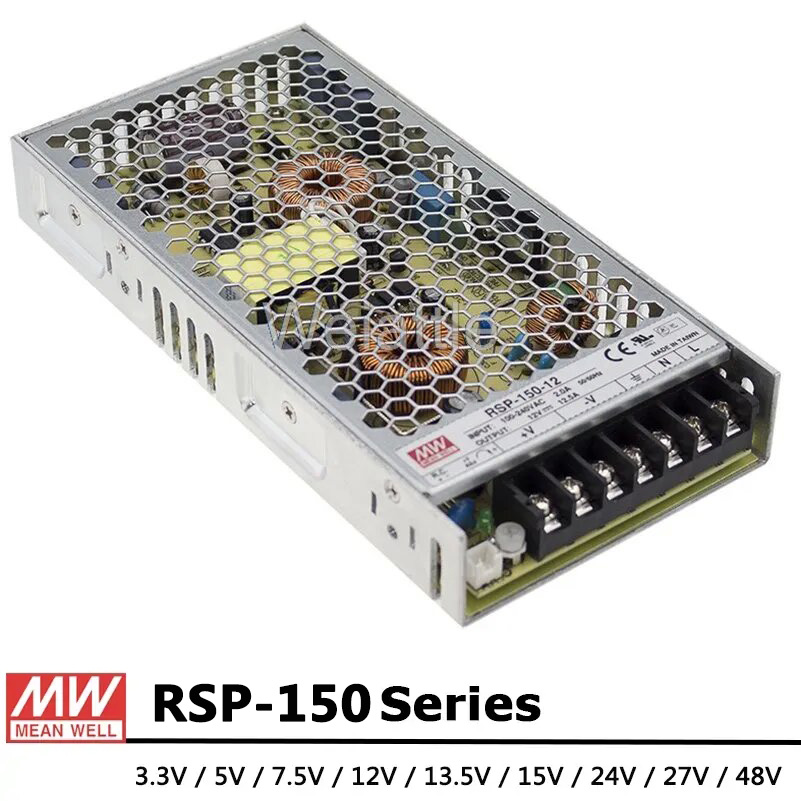

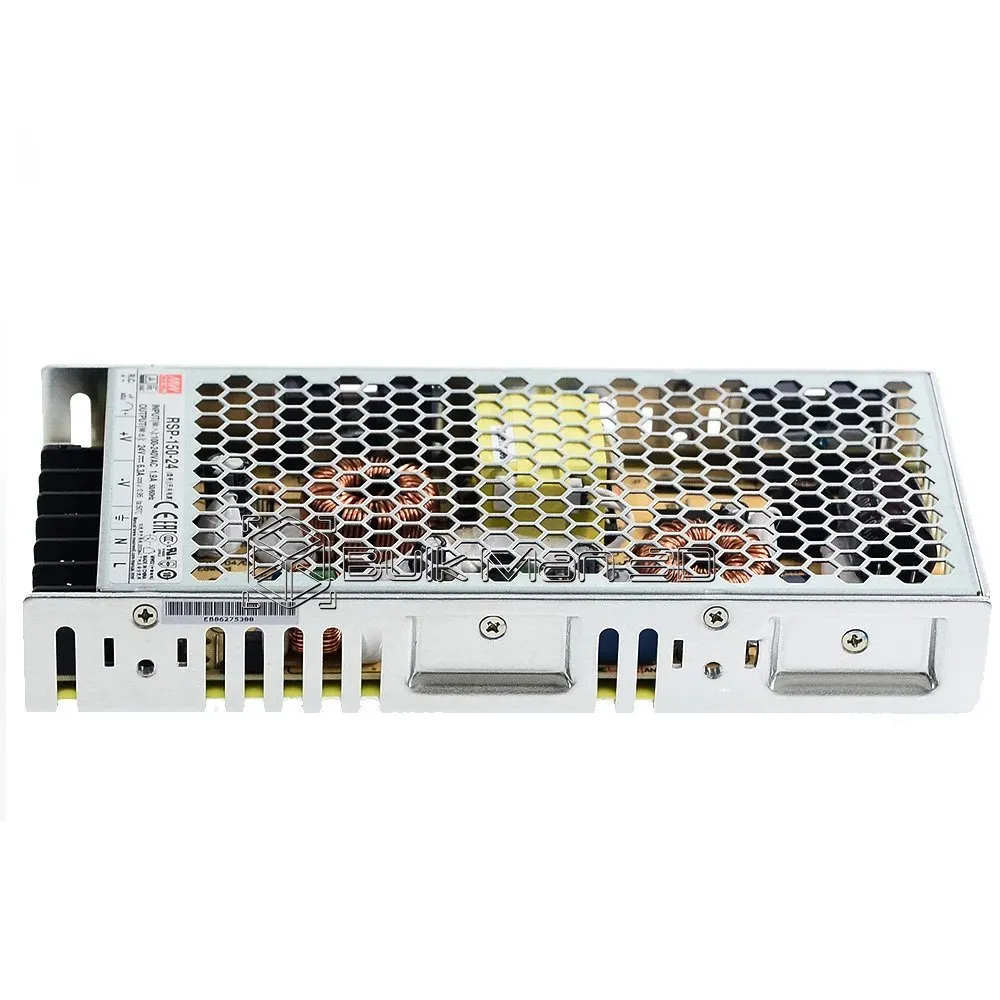

RSP-150 is a 150W single-output enclosed AC/DCV power supply. This series operates for 85-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃
Features:
- Universal AC input Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- 1U low profile 30mm
- Remote ON-OFF control
- LED indicator for power on
- Over voltage category III
- 100% full load burn-in test
Applications
- Factory control or automation apparats
- Test and measurement instrument
- Laser related machine
- Burn-in facility
- RF application
| SKU | Power | Output | Tol. | R&N | Effi. |
| RSP-150-3.3 | 150W | 3.3V, 0~30A | ±2% | 100mV | 81.5% |
| RSP-150-5 | 150W | 5V, 0~30A | ±2% | 100mV | 87% |
| RSP-150-7.5 | 150W | 7.5V, 0~20A | ±2% | 100mV | 88.5% |
| RSP-150-12 | 150W | 12V, 0~12.5A | ±2% | 100mV | 89% |
| RSP-150-13.5 | 150W | 13.5V, 0~11.2A | ±2% | 100mV | 87.5% |
| RSP-150-15 | 150W | 15V, 0~10A | ±2% | 100mV | 88.5% |
| RSP-150-24 | 150W | 24V, 0~6.3A | ±1% | 150mV | 89% |
| RSP-150-27 | 150W | 27V, 0~5.6A | ±1% | 150mV | 89.5% |
| RSP-150-48 | 150W | 48V, 0~3.2A | ±1% | 250mV | 90% |
Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
