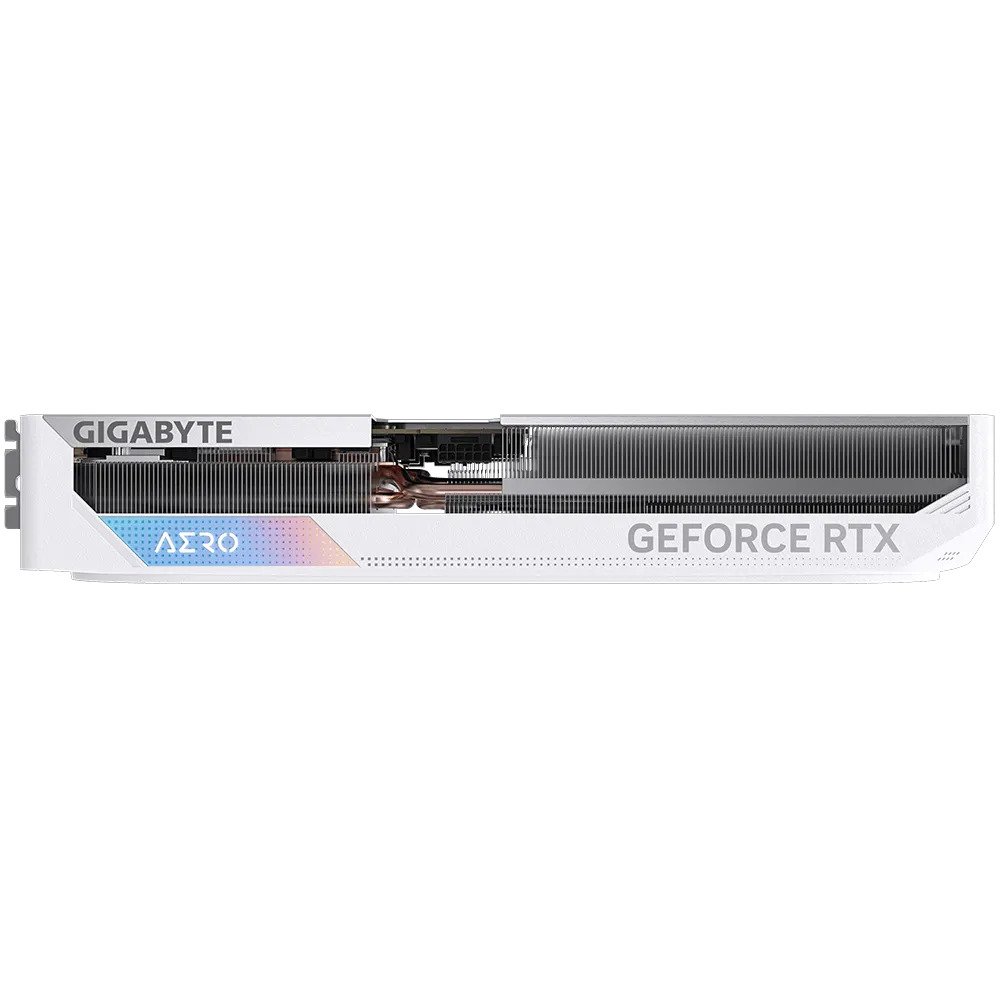

Gigabyte RTX 4070 Ti Aero OC 12GB Graphics Card

Gigabyte RTX 4070 Ti Aero OC 12GB Graphics Card :

Features :

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4070 Ti
• Integrated with 12GB GDDR6X 192bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS
• Protection metal back plate
• Anti-sag bracket
• 4 Years Warranty (Online registration required)

Overview :

WINDFDRCE COOLING SYSTEM

Gigabyte RTX 4070 Ti Aero OC 12GB Have WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

• ALTERNATE SPINNING
  Reduce the turbulence of adjacent fans and increase airflow pressure.
• 3D ACTIVE FAN
  The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
• UNIQUE BLADE FAN
  The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
• GRAPHENE NANO LUBRICANT
  Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
• SCREEN COOLING
  Extended heatsink allows air to pass through, providing better heat dissipation.
• VAPOR CHAMBER & HEAT-PIPE
  The vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
• RGB FUSION
  Gigabyte RTX 4070 Ti Aero OC 12GB comes With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENT IN ESSENTIAL

• PROTECTION METAL BACK PLATE

Gigabyte RTX 4070 Ti Aero OC 12GB have metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

• DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

• POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

• ANTI-SAG BRACKET

The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

BUILT STRONG

• ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

• FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

• 4-YEAR WARRANTY

We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to Gigabyte RTX 4070 Ti Aero OC 12GB graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

• GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications :

Graphics Processing	GeForce RTX™ 4070 Ti
Core Clock	2640 MHz (Reference card : 2610 MHz)
CUDA® Cores	7680
Memory Clock	21 Gbps
Memory Size	12 GB
Memory Type	GDDR6X
Memory Bus	192 bit
Card Bus	PCI-E 4.0
Digital max resolution	7680×4320
Multi-view	4
Card size	L=336 W=140 H=58 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	750W
Power Connectors	16 pin *1
Output	DisplayPort 1.4 *3 HDMI 2.1 *1
Accessories	1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to two 8-pin power adaptor
