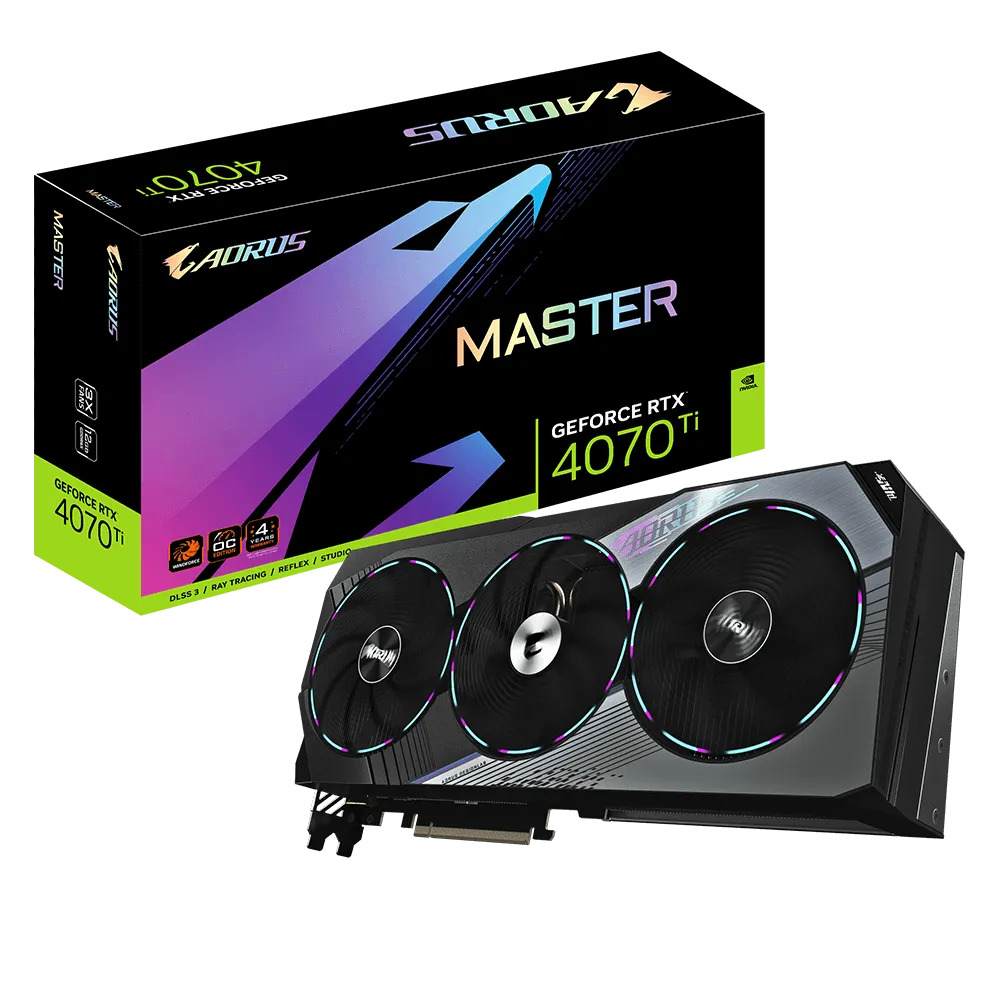

Gigabyte Aorus RTX 4070 Ti Master 12GB Graphics Card

Gigabyte Aorus RTX 4070 Ti Master 12GB Graphics Card :

Features :

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4070 Ti
• Integrated with 12GB GDDR6X 192bit memory interface
• WINDFORCE cooling system
• LCD Edge View
• RGB Fusion
• Dual BIOS
• Protection metal back plate
• Anti-sag bracket
• 4 Years Warranty (Online registration required)

Overview :

WINDFDRCE COOLING SYSTEM

• THE EVOLVING POWER OF WINDFORCE
  The WINDFORCE cooling system of Gigabyte Aorus RTX 4070 Ti Master 12GB features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

COOLING, UPSCALED.

• AORUS BIONIC FAN TECH
  The sharks’ dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.
• DOUBLE BALL BEARING
  The double ball bearing structure has better heat endurance and efficiency than sleeve structure.

DIRECTLY. SO FAST.

• LARGE VAPOR CHAMBER & HEAT-PIPE
  The large vapor chamber of Gigabyte Aorus RTX 4070 Ti Master 12GB directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

THE OTHER WAY AROUND.

• ALTERNATE SPINNING
  Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.
• 3D ACTIVE FAN
  The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

CHANNELED AIRFLOW.

• ANGULAR FIN DESIGN
  The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

MAKE ROOM FOR THE AIRFLOW.

• SCREEN COOLING
  To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.

LCD EDGE VIEW

The LCD monitor displays not only graphics card information, but also various favorite texts, pictures, and GIFs. You can also adjust lighting effects via GIGABYTE CONTROL CENTER.

RGB FUSION

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .

EXCELLENT IN ESSENTIAL

• DUAL BIOS
  The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
• PROTECTION METAL BACK PLATE
  The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
• ANTI-SAG BRACKET
  The new anti-sag bracket is tailored to Gigabyte Aorus RTX 4070 Ti Master 12GB graphics card. It provides the optimized reinforcement and better overall visual appearance.
• POWER INDICATOR
  When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
• PCB COATING
  Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.
  Moisture resistant – prevents unwanted conduction paths and board damage.
  Corrosion resistant – protects from salt spray, humidity, and corrosion.

BUILT STRONG

• EXTREME OVERCLOCKING
  Gigabyte Aorus RTX 4070 Ti Master 12GB graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.
• ULTRA DURABLE
  Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
• FRIENDLY PCB DESIGN
  Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
• 4-YEAR WARRANTY
  We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications :

Graphics Processing	GeForce RTX™ 4070 Ti
Core Clock	2670 MHz (Reference card: 2610 MHz)
CUDA® Cores	7680
Memory Clock	21 Gbps
Memory Size	12 GB
Memory Type	GDDR6X
Memory Bus	192 bit
Card Bus	PCI-E 4.0
Digital max resolution	7680×4320
Multi-view	4
Card size	L=342 W=153 H=70.6 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	750W
Power Connectors	16 pin *1
Output	DisplayPort 1.4a *3 HDMI 2.1 *1
Accessories	1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to three 8-pin power adaptor 6. AORUS Metal sticker
