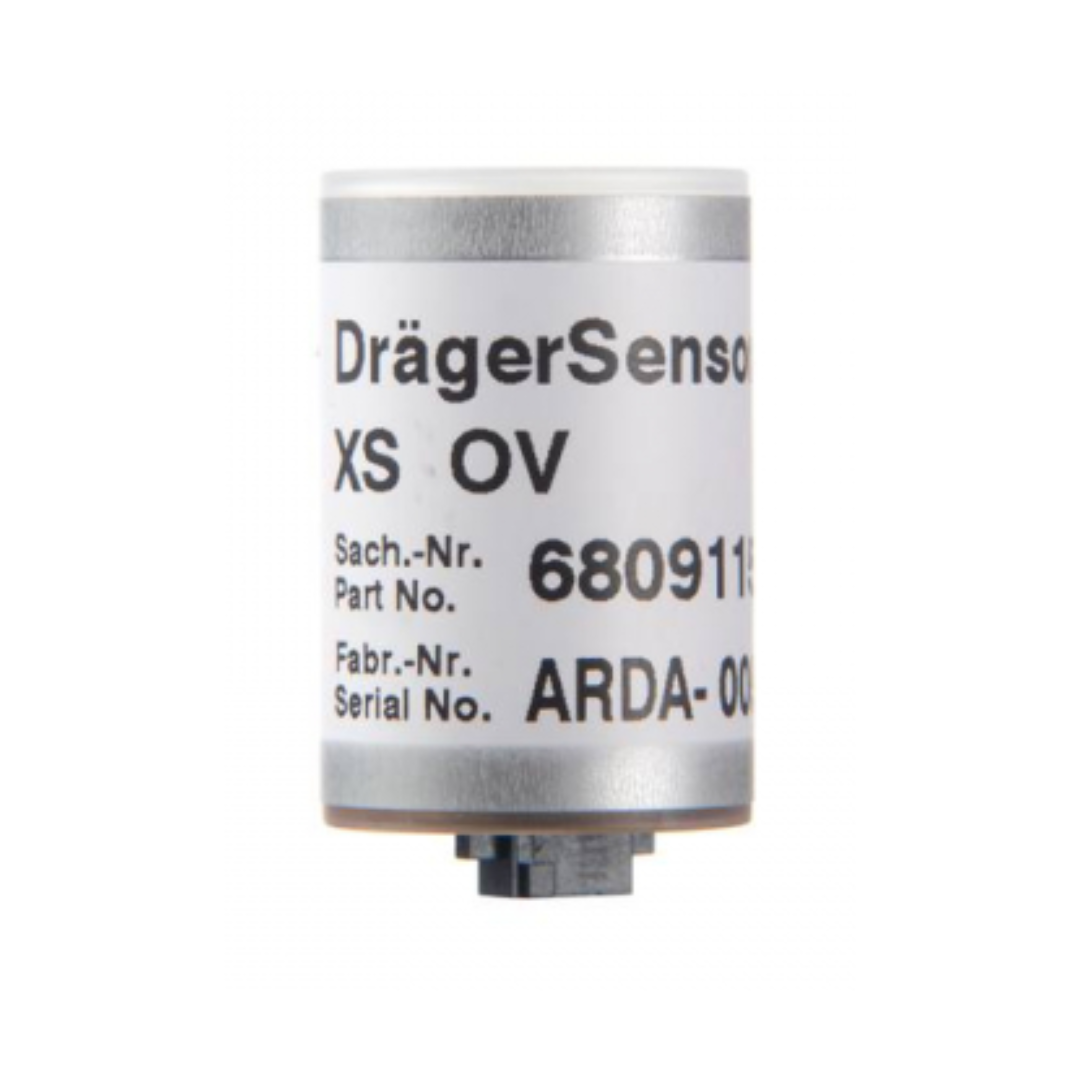

Draeger Sensor XS EC OV 6809115

The Draeger Sensor XS EC OV 6809115 is designed for reliable detection of organic gases and vapors, providing stable performance even in challenging conditions. With low-maintenance electrochemical technology, calibration is simple and infrequent, reducing downtime.

DrägerSensor XS OV – 6809115

This sensor is particularly suited to detect leakages of a variety of organic gases and vapors. While it does not cover as broad a spectrum as a PID sensor, it offers the key advantage of being almost completely insensitive to moisture. Calibration is required only every six months, typical for electrochemical sensors. For most gases, a single calibration using ethylene oxide automatically calibrates the sensor for other gases. Exceptions include ethyne, tetrahydrofuran, and diethyl ether, which must be calibrated using the specific target gas.

Hazmat Resource can help build a sensor configuration
for your gas detection needs

Draeger has multiple gas detectors with multiple configurations, contact us and we’ll get you handled.
X-AM | X-SITE | X-DOCK | ALL ACCESSORIES . . . just to name a few . . .

Email us at [email protected]
Fast Quote

Large range of gases

Draeger XS Electrochemical Sensor are designed to detect over 100 different gases and vapors, offering dependable performance with extended calibration intervals and strong reliability.

Internal development

Every sensor is designed and built in-house by Dräger, ensuring consistent quality and reliable measurement performance. When paired with Dräger’s own gas detection devices, the sensors deliver their full potential.

Smart technology

Smart technology stores all sensor-specific data—like temperature compensation, measurement range, calibration interval, and gas type—directly in the sensor’s memory. XS sensors can be easily swapped between the Pac III and Dräger X-am 7000 devices without any reconfiguration.

Technical Specifications

Detection Limit:	1 ppm
Resolution:	0.5 ppm
Measurement Range / relative sensitivity:	0 to 200 ppm C2H4O (ethylene oxide) 1.00 0 to 200 ppm C3H6O (propylene oxide) 0.80 0 to 100 ppm C2H4 (ethene) 1.10 0 to 100 ppm C3H6 (propene) 0.70 0 to 100 ppm C2H3Cl (vinyl chloride) 0.80 0 to 200 ppm CH3OH (methanol) 1.20 0 to 300 ppm C2H5OH (ethanol) 0.60 0 to 200 ppm CH3CHO (acetaldehyde) 0.30 0 to 100 ppm CH2CHCHCH2 (butadiene) 1.20 0 to 100 ppm HCHO (formaldehyde) 1.00 0 to 100 ppm CH3COOC2H3 (vinyl acetate) 0.80 0 to 300 ppm (H3C)2CHOH (isopropanol) 0.30
Response Time:	≤ 90 seconds (T50)
Measurement accuracy
Sensitivity:	≤ ± 5% of measured value
Long-term drift, at 20°C (68°F)
Zero point:	≤ ± 2 ppm/month
Sensitivity:	≤ ± 5% of measured value/month
Warm up time:	≤ 18 hours
Ambient conditions
Temperature*:	(–20 to 50)°C (–4 to 122)°F
Humidity*:	(10 to 90)% RH
Pressure:	(700 to 1,300) hPa
Influence of temperature
Zero point:	≤ ± 1 ppm/K at (40 to 50)°C (104 to 122)°F
Sensitivity:	≤ ± 1% of measured value/K
Influence of humidity
Zero point:	No effect
Sensitivity:	≤ ± 0.2% of measured value/% RH
Test gas:	5 to 100 ppm C2H4, C3H6, C2H3Cl, CH2CHCHCH2, HCHO, CH3COOC2H3 5 to 200 ppm C2H4O, C3H6O, CH3OH 10 to 200 ppm CH3CHO 20 to 300 ppm C2H5OH, (H3C)2CHOH



XXS EC OV Technical Manual PDF

Dräger Sensor Datasheet PDF

Draeger Portable Gas Detection Manual PDF

About Dräger

Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion.Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!

Dräger VOICE – your hazmat-based safety product finder

Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances

Need more information?

Fore more information about the Draeger gas detector sensor, contact us today!

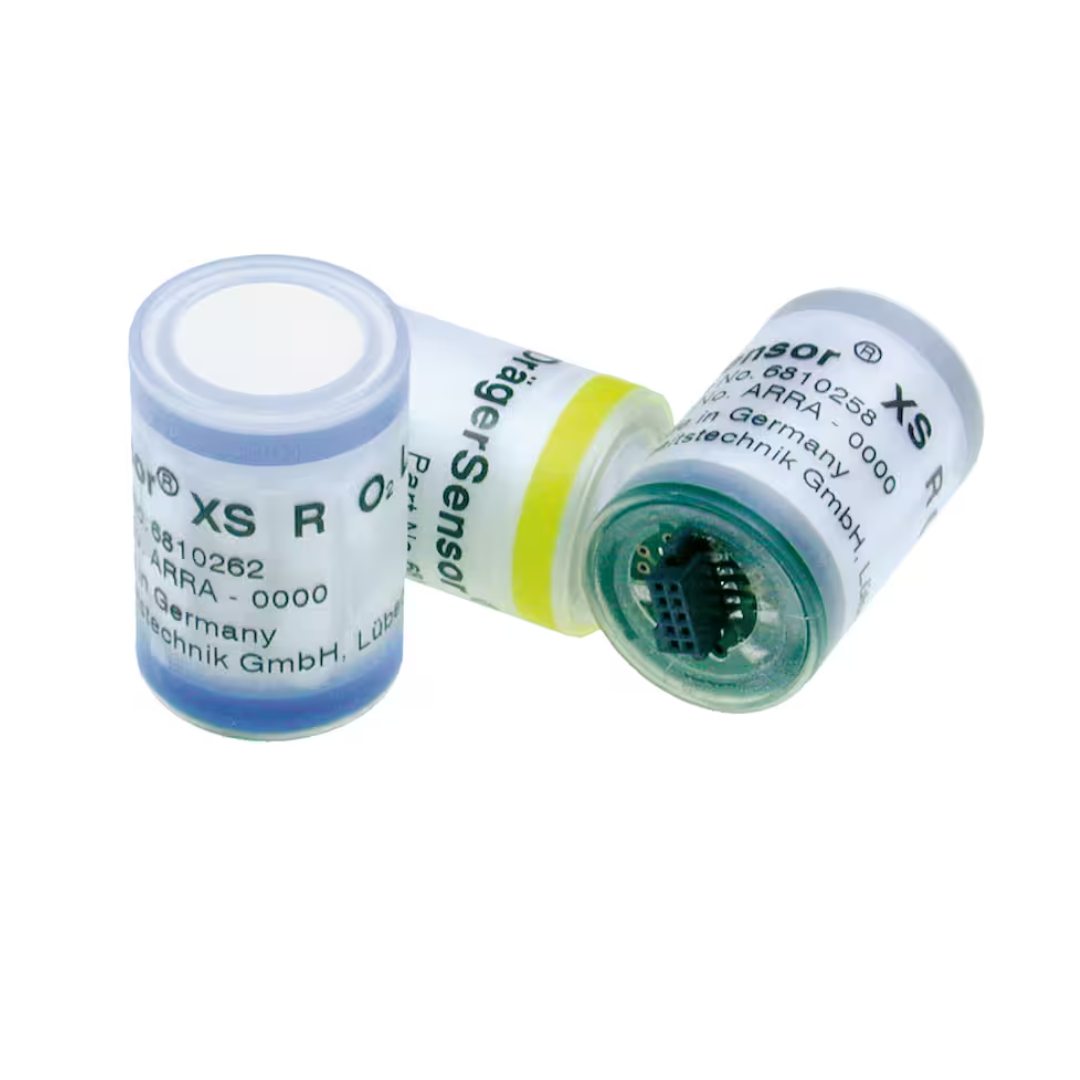

Draeger XS Sensors Ethylene Oxide

What applications is the Dräger Sensor XS EC OV suitable for?

This sensor is ideal for monitoring workplaces where organic gas leaks may occur, helping ensure worker safety and compliance:

• Detecting leaks in laboratories and chemical plants.

• Monitoring industrial environments with organic solvent vapors.

• Integrating into safety systems for early warning of hazardous gas presence.

• Suitable for fixed or portable gas detection setups requiring moisture-insensitive sensors.

This sensor is ideal for monitoring workplaces where organic gas leaks may occur, helping ensure worker safety and compliance:

• Detecting leaks in laboratories and chemical plants.

• Monitoring industrial environments with organic solvent vapors.

• Integrating into safety systems for early warning of hazardous gas presence.

• Suitable for fixed or portable gas detection setups requiring moisture-insensitive sensors.
