£174.02

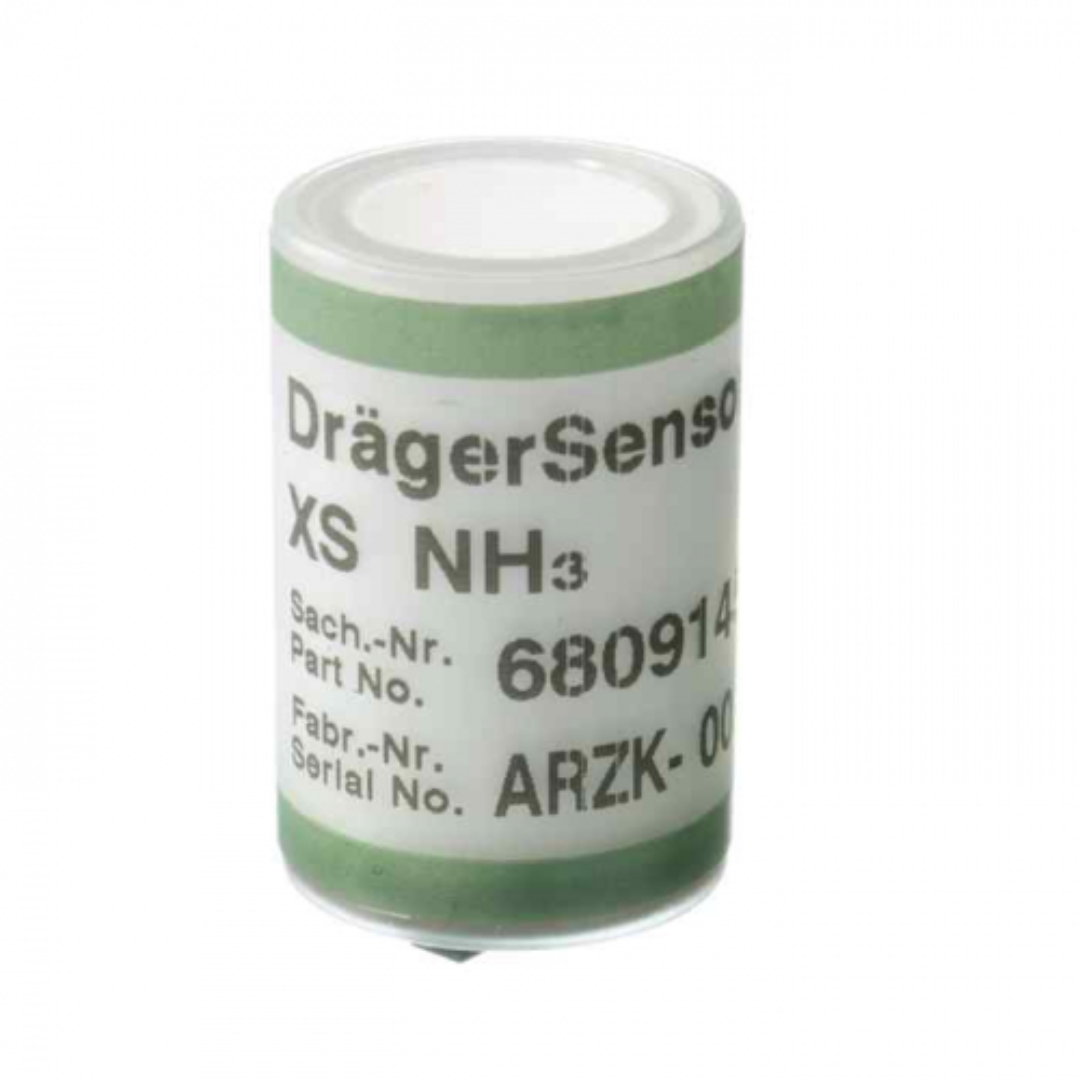

Draeger Sensor XS EC NH3 0 – 300 ppm 6809145 is a smart, plug‑and‑play electrochemical sensor designed for use with Dräger’s multi‑gas detectors like the X‑am 7000 and Pac III series. These electrochemical sensors offers precise detection of a wide range of gases and vapors.
The Draeger Sensor XS EC NH3 0 – 300 ppm 6809145 is engineered for reliable detection of ammonia in ambient air. With a fast response time and high sensitivity, it ensures quick alerts to potentially hazardous concentrations, making it ideal for industrial, laboratory, and environmental monitoring applications.
It measures concentrations from 0 to 300 ppm with precise detection, providing accurate readings even in challenging conditions.
Draeger has multiple gas detectors with multiple configurations, contact us and we’ll get you handled.
X-AM | X-SITE | X-DOCK | ALL ACCESSORIES . . . just to name a few . . .
Email us at [email protected]
Fast Quote
Large range of gases
Draeger XS Electrochemical Sensor are designed to detect over 100 different gases and vapors, offering dependable performance with extended calibration intervals and strong reliability.
Internal development
Every sensor is designed and built in-house by Dräger, ensuring consistent quality and reliable measurement performance. When paired with Dräger’s own gas detection devices, the sensors deliver their full potential.
Smart technology
Smart technology stores all sensor-specific data—like temperature compensation, measurement range, calibration interval, and gas type—directly in the sensor’s memory. XS sensors can be easily swapped between the Pac III and Dräger X-am 7000 devices without any reconfiguration.

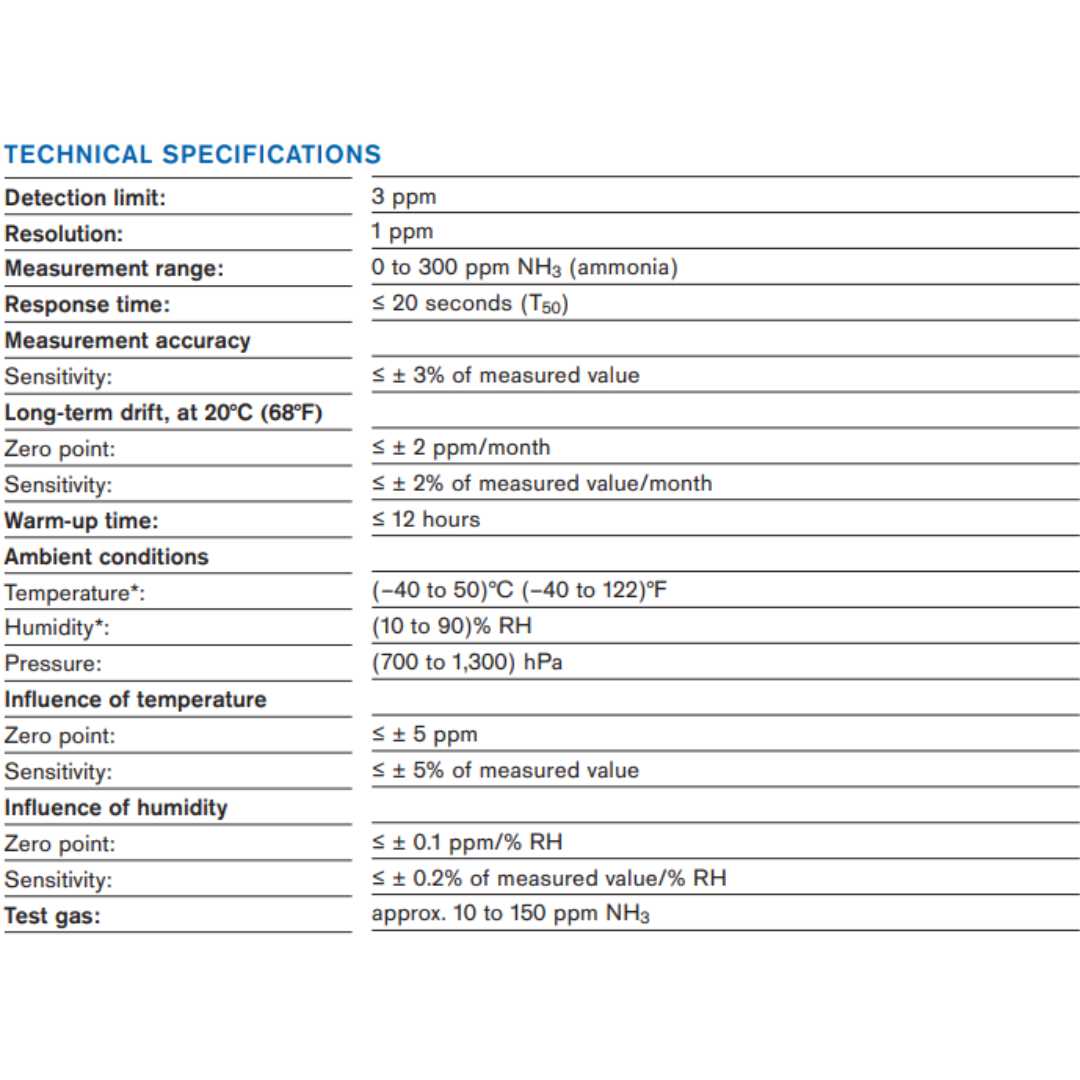

Technical Specifications
| Detection Limit: | 3 ppm |
| Resolution: | 3 ppm |
| Measurement Range / relative sensitivity: | 0 to 300 ppm NH3 (ammonia) |
| Response Time: | ≤ 20 seconds (T50) |
| Measurement accuracy | |
| Sensitivity: | ≤ ± 3% of measured value |
| Long-term drift, at 20°C (68°F) | |
| Zero point: | ≤ ± 2 ppm/month |
| Sensitivity: | ≤ ± 2% of measured value/month |
| Warm up time: | ≤ 12 hours |
| Ambient conditions | |
| Temperature*: | (–40 to 50)°C (–40 to 122)°F |
| Humidity*: | (10 to 90)% RH |
| Pressure: | (700 to 1,300) hPa |
| Influence of temperature | |
| Zero point: | ≤ ± 5 ppm |
| Sensitivity: | ≤ ± 5% of measured value |
| Influence of humidity | |
| Zero point: | ≤ ± 0.1 ppm/% RH |
| Sensitivity: | ≤ ± 0.2% of measured value/% RH |
| Test gas: | approx. 10 to 150 ppm NH3 |
XXS EC NH3 Technical Manual PDF
Dräger Sensor Datasheet PDF
Draeger Portable Gas Detection Manual PDF
About Dräger
Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion.Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!
Dräger VOICE – your hazmat-based safety product finder
Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances
Need more information?
Fore more information about the Draeger gas detector sensor, contact us today!
This sensor is designed to reliably detect ammonia gas in the ambient air, providing early warning to ensure workplace safety.
Measures ammonia concentrations up to 300 ppm.
Provides fast response times for timely alerts in case of leaks or high exposure.
Suitable for industrial, laboratory, and environmental monitoring.
Maintains accuracy under varying temperature, humidity, and pressure conditions.
It is an essential safety tool for environments where ammonia poses potential risks.
This sensor is designed to reliably detect ammonia gas in the ambient air, providing early warning to ensure workplace safety.
Measures ammonia concentrations up to 300 ppm.
Provides fast response times for timely alerts in case of leaks or high exposure.
Suitable for industrial, laboratory, and environmental monitoring.
Maintains accuracy under varying temperature, humidity, and pressure conditions.
It is an essential safety tool for environments where ammonia poses potential risks.
