Anti Backlash Spring Loaded Nut- For ACME Lead Screw TR8x2/TR8x4/TR8x8

This Anti-Backlash Nut features a mounting flange with four un-tapped holes for M3 screws. It is intended for use with TR8×2/TR8x4/TR8x8(P2) leadscrews, which are 8mm-diameter rods with four independent trapezoidal threads spaced 2mm apart. One full revolution of such a rod will result in a 8.0mm linear displacement of the traveling nut.

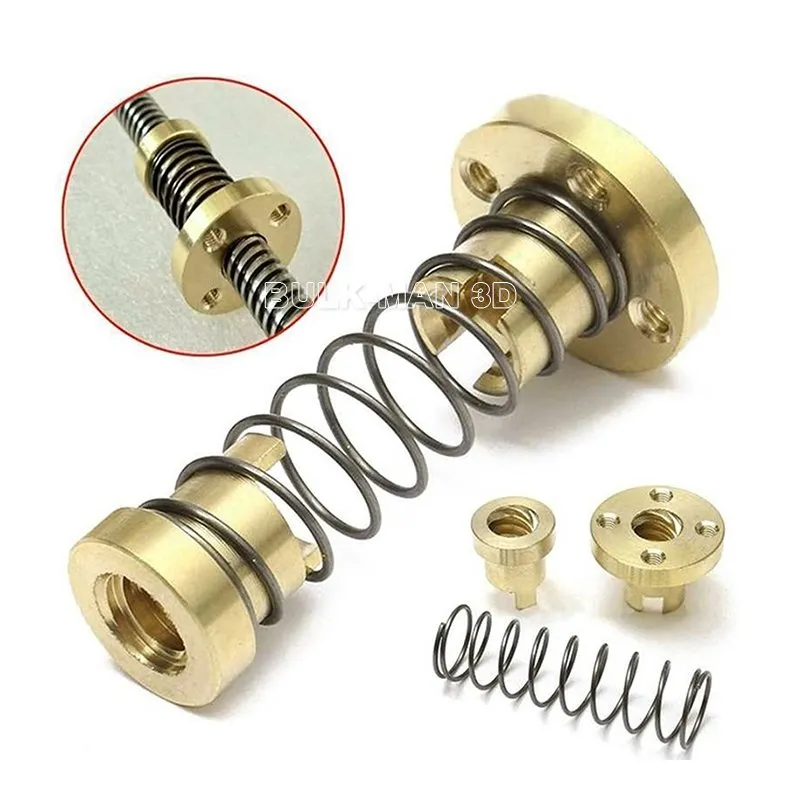

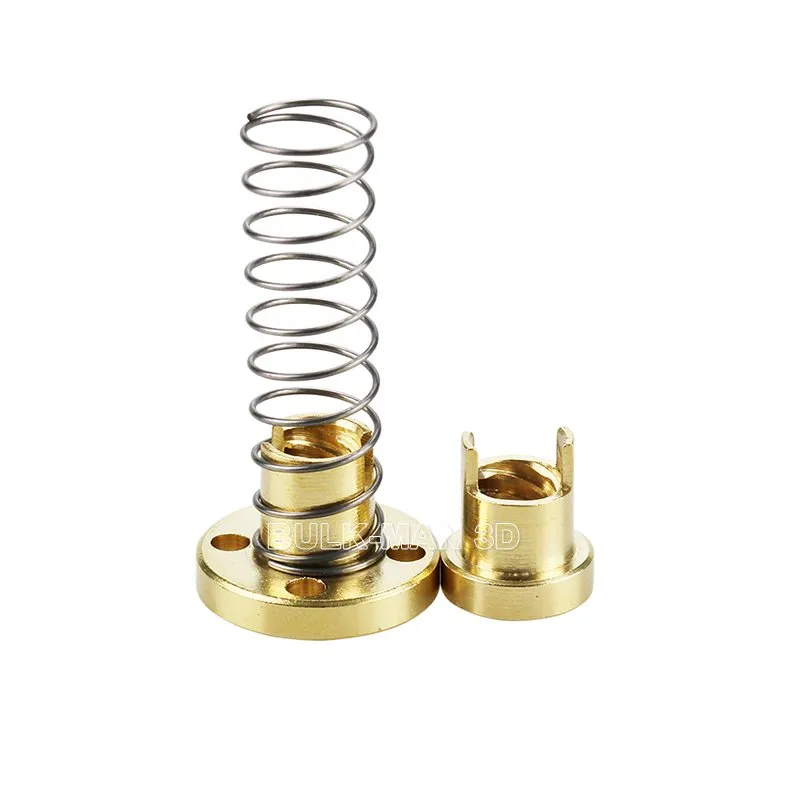

There are 2 brass threaded sections, one with a sleeve. The threaded sections are placed under pressure (to reduce backlash) by a spring.

Specifications:

• 100% Brand new and high quality
• Model:
  • ABNUT-TR8*2-T2
  • ABNUT-TR8*4-T2
  • ABNUT-TR8*8-T2
• Material: Brass
• Color: Golden
• Size:
  • TR8x2
  • TR8x4
  • TR8x8
• Height: 2 mm
• Small Diameter: 16mm
• Large Diameter: 22mm
• Mounting Holes: 3mm
• Thread: 8mm
• Lead: 8mm
• Pitch: 2mm
• Starts: 1/2/4
