ACME Anti-Backlash Nut -For 8mm ACME Lead Screw TR8x2/TR8x4/TR8x8

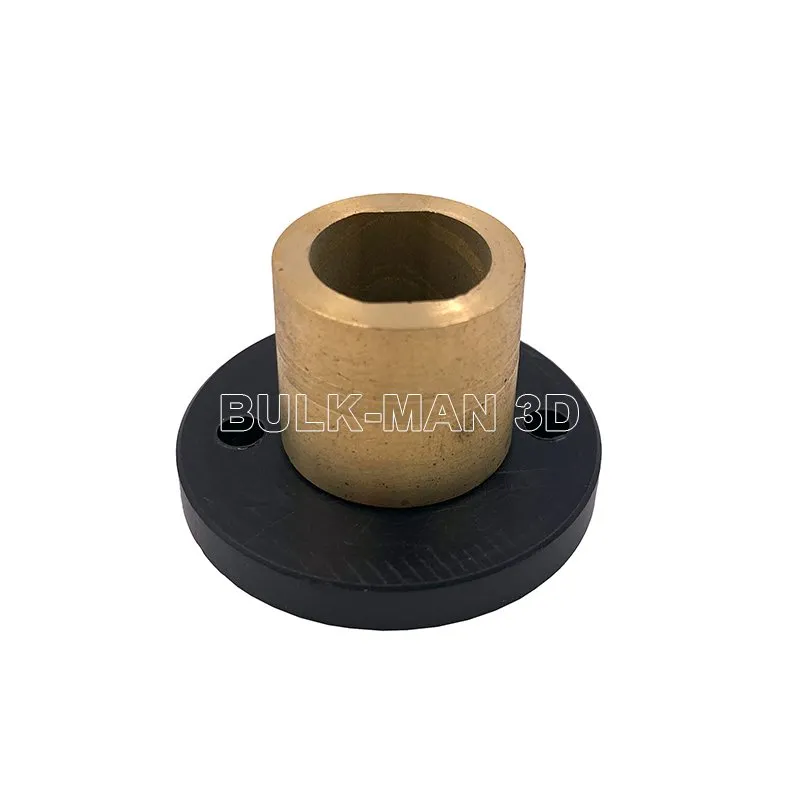

This Anti-Backlash Nut features a mounting flange with two untapped holes for M4 screws. It is intended for using with Tr8×2/Tr8×4/Tr8×8(P2) leadscrews, which are 8mm-diameter rods with four independent trapezoidal threads spaced 2mm apart. One full revolution of such a rod will result in a 8.0mm linear displacement of the travelling nut.

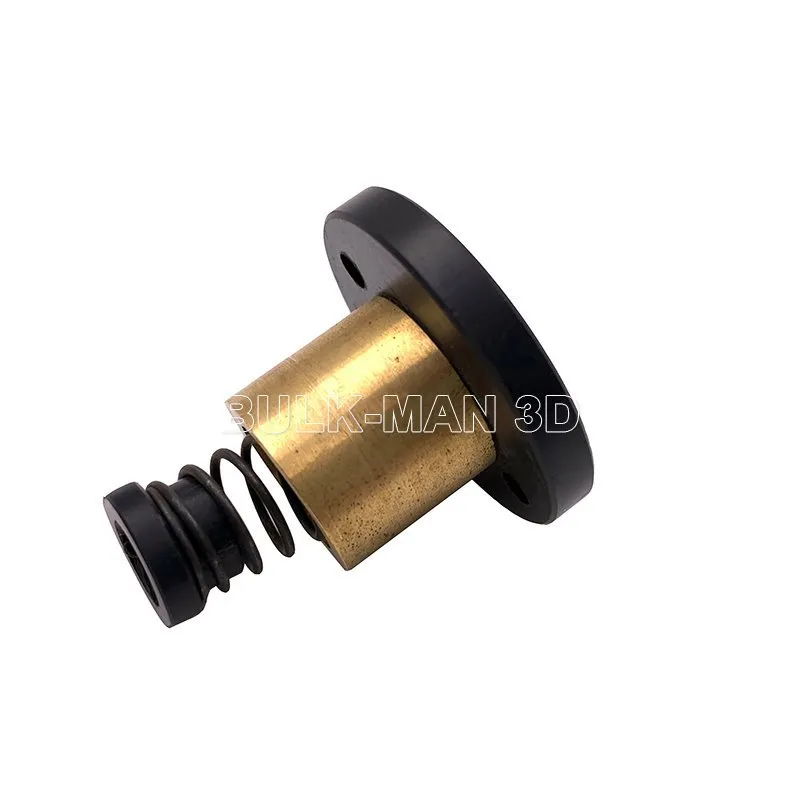

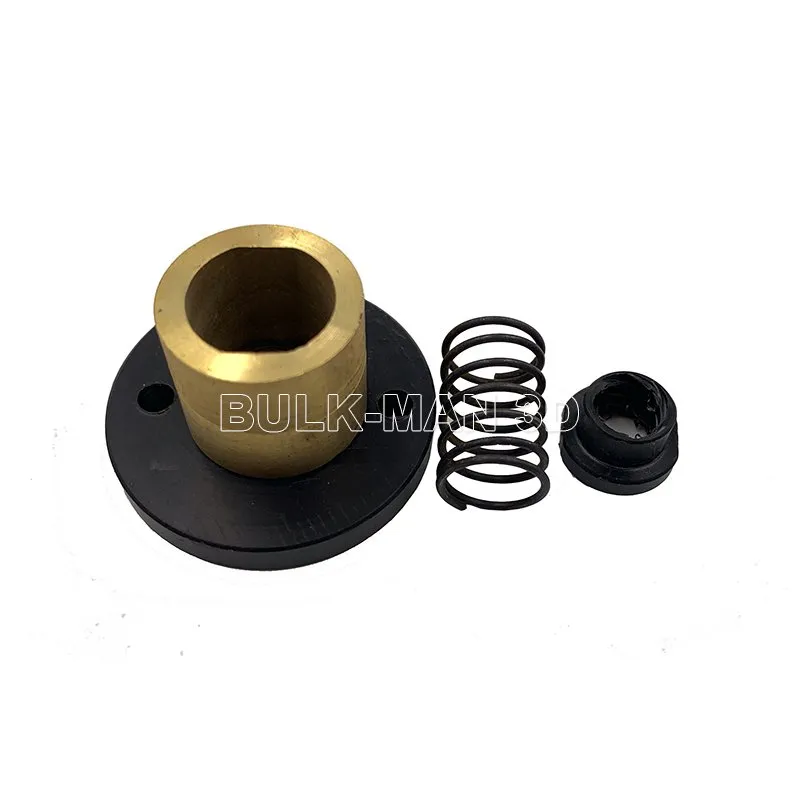

There are 2 delrin threaded sections with a brass sleeve. These threaded sections are placed under pressure (to reduce backlash) by a spring.

Specifications:

• 100% Brand new and high quality
• Model:
  • ABNUT-TR8*2-T1
  • ABNUT-TR8*4-T1
  • ABNUT-TR8*8-T1
• Material: Brass+Plastic
• Colour: Golden+ Black
• Size:
  • TR8x2
  • TR8x4
  • TR8x8
• Height: 23mm
• Small Diameter: 26.4mm
• Large Diameter: 36.5mm
• Mounting Holes: 4mm
• Thread: 8mm
• Lead: 8mm
• Pitch: 2mm
• Starts: 1/2/4
