2.2N.M Close Loop Stepper Motor Bundle

This is a High Performance 2.2N.M
Close Loop Stepper Motor Bundle with HBS57 Stepper Motor Drive.

This 2.2N.M Close Loop Stepper Motor Bundle is available for Ultimate Bee CNC machine.

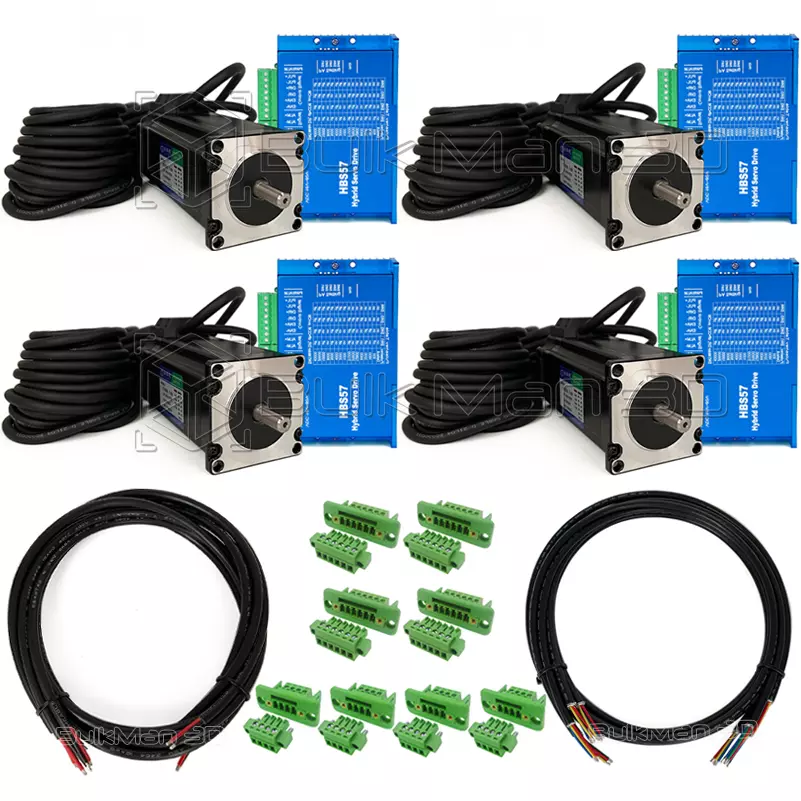

Bundle includes:

• 4pcsx HBS57 Stepper Motor Drive
• 4pcsx 57HSE2.2N 2Nm Motor with 5-meter motor cable and 5-meter encoder cable

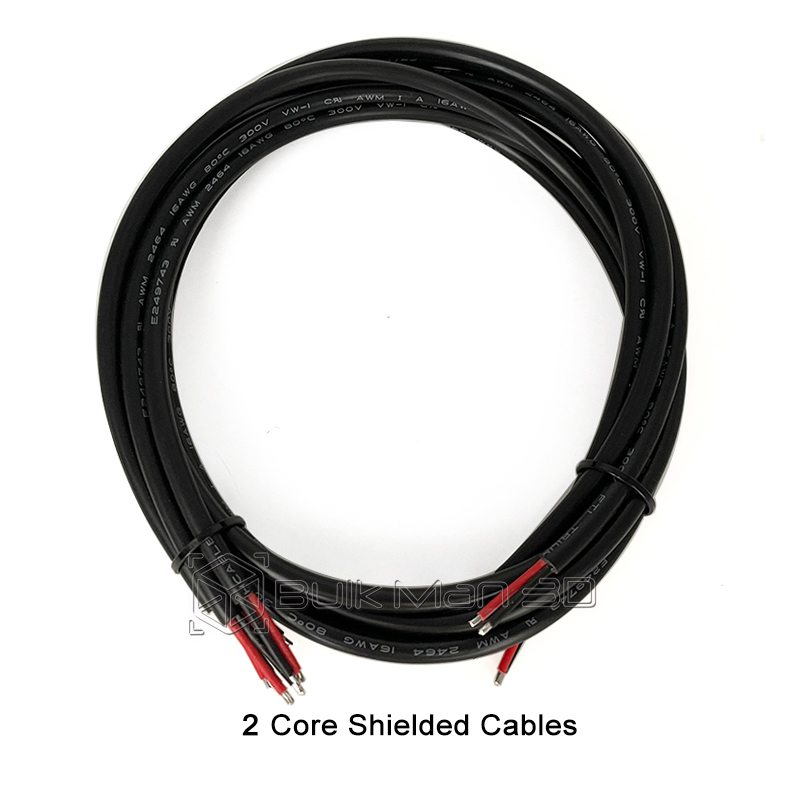

• 4pcsx 2 core DC cable for motor driver to power supply (X,Y,A,Z)

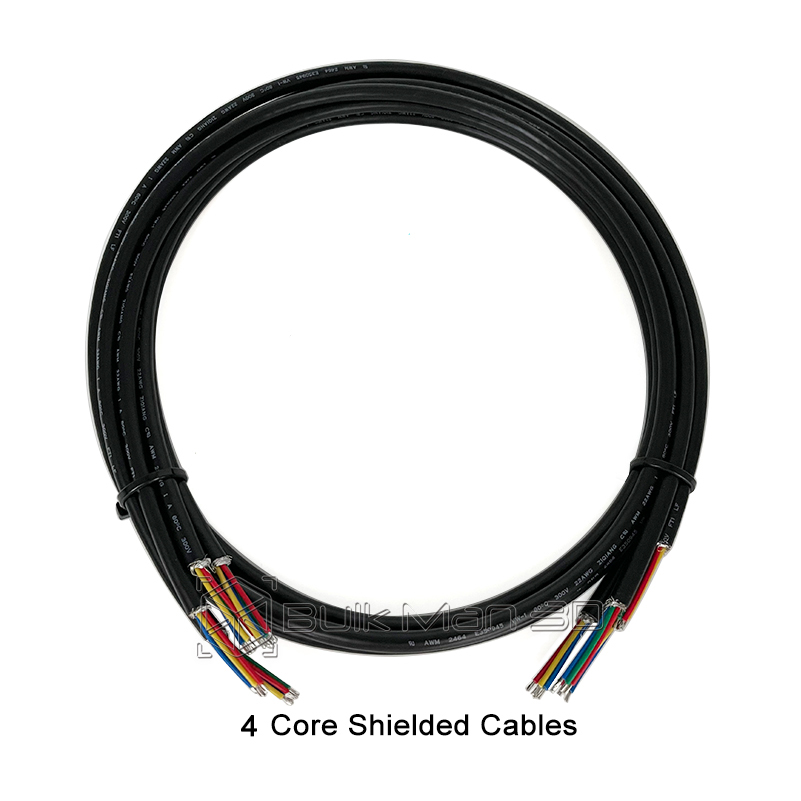

• 4pcsx 4 core shielded cable for motor driver to controller (X,Y,A,Z)
• 4pcsx 4 Pin EDG through wall connector
• 4pcsx 6 Pin EDG through wall connector



Description of Motor:

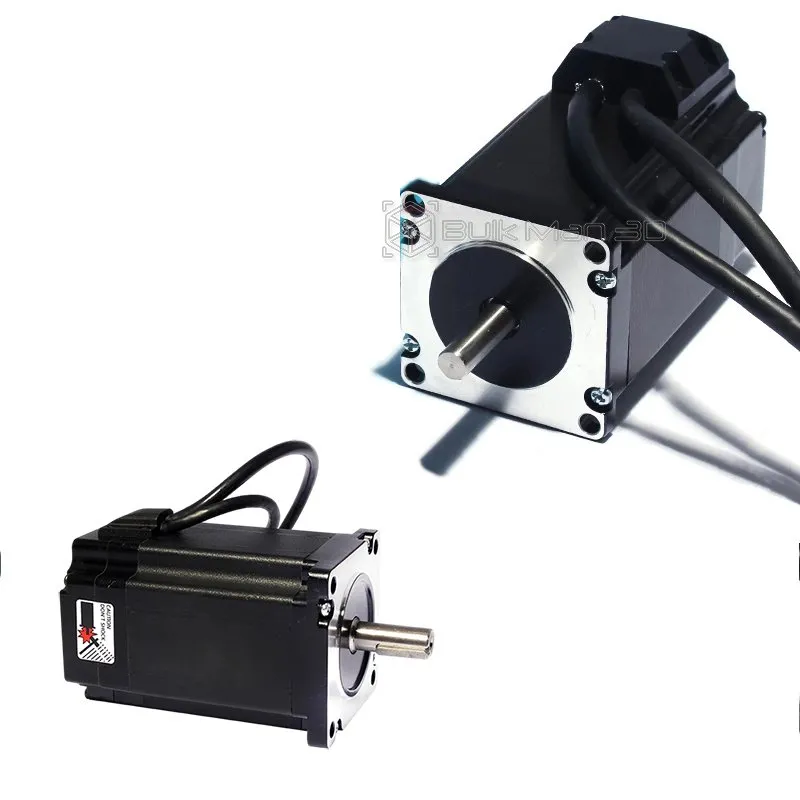

• Motor model: 57HSE2.2N
• Motor current: 3.5A
• Output torque: 2.2N.m
• Body length: about 99MM
• Shaft diameter: 8MM, no keyway
• Outletmode: single output shaft
• Rated speed: 1000 rpm (no-load speed: 2000 rpm)
• Outlet mode: two-phase four-wire (must be wired according to motor label)
• with 1pcs 5 meters 6 core shielded encoder cable (X,Y,A,Z)
• with 1pcs 5 meters 4 core shielded motor cable (X,Y,A,Z)

Description of Stepper Drive HBS57:

• Drive Model: HBS57 (Nema 23, for 57 stepper motor)
• Pulse Signal: 3.3V/5V/24V compatible. No string resistor required
• Voltage Range: DC16-70V (New Version: DC24-80, send in random)
• Subdivision Setting: 800-51200 subdivision
• The new 32-bit DSP digital 57 closed-loop stepper motor driver, engraving machine, CNC equipment available. PWM current control, low noise, high speed torque is 40% larger than ordinary drives.

Cables & Connectors

• 4x 5 meters 6 core shielded encoder cable (X,Y,A,Z)- Linked with stepper motor
• 4x 5 meters 4 core shielded motor cable (X,Y,A,Z)-Linked with stepper motor

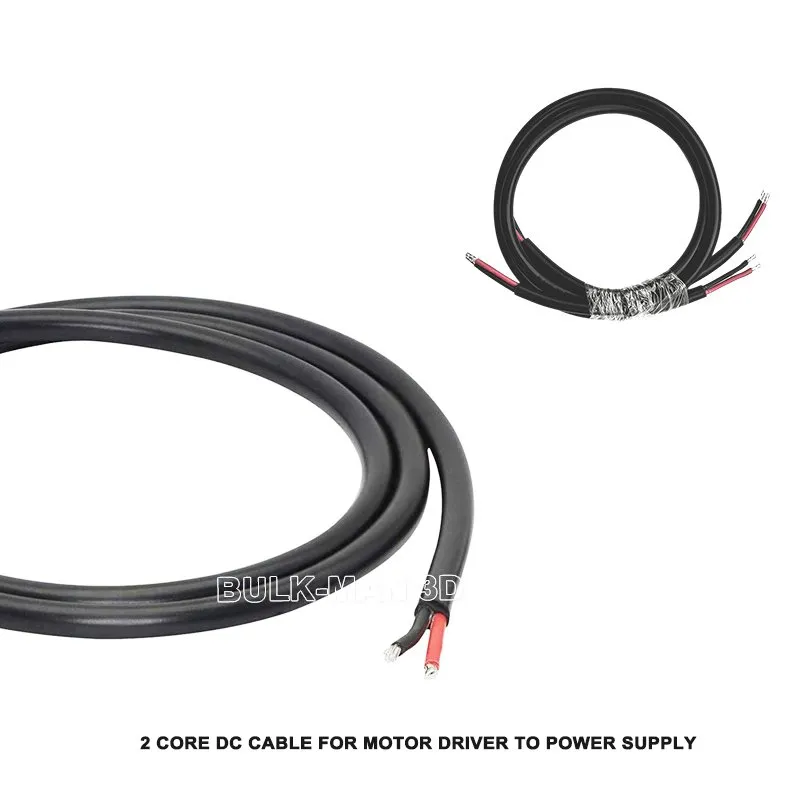

• 4x 1 meter 2 core DC cable for motor driver to power supply (X,Y,A,Z)

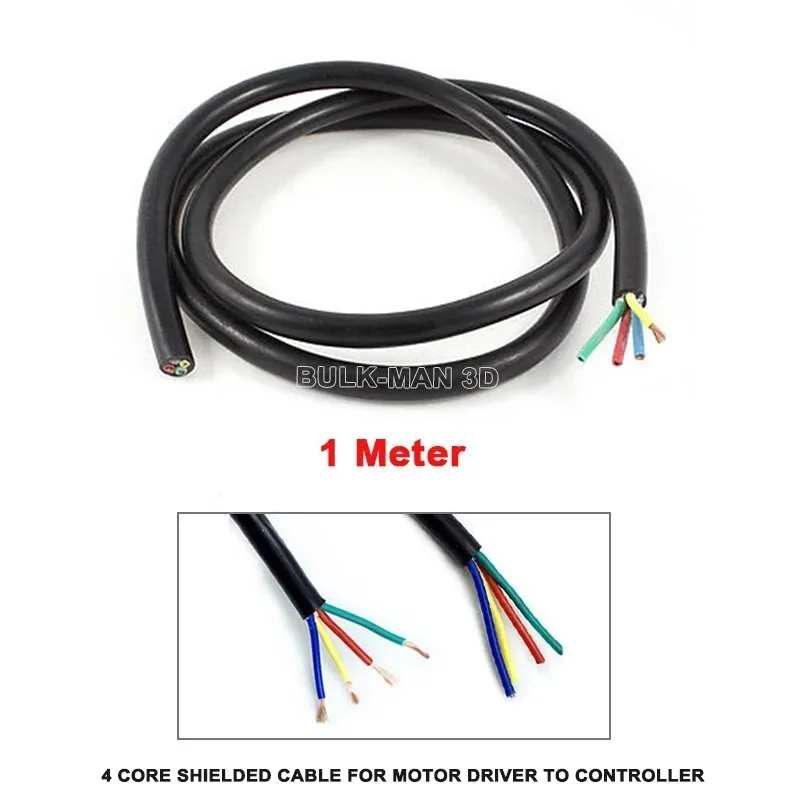

• 4x 1 meter 4 core shielded cable for motor driver to controller (X,Y,A,Z)
• 4x 4 Pin EDG through wall connectors
• 4x 6 Pin EDG through wall connectors

Features:

1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.

Please note:We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
