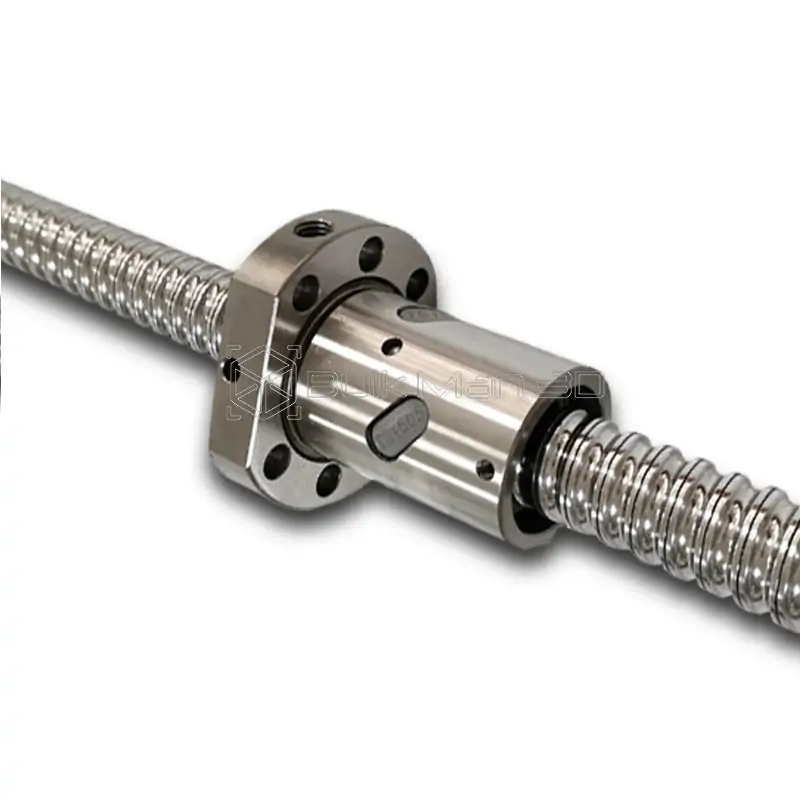

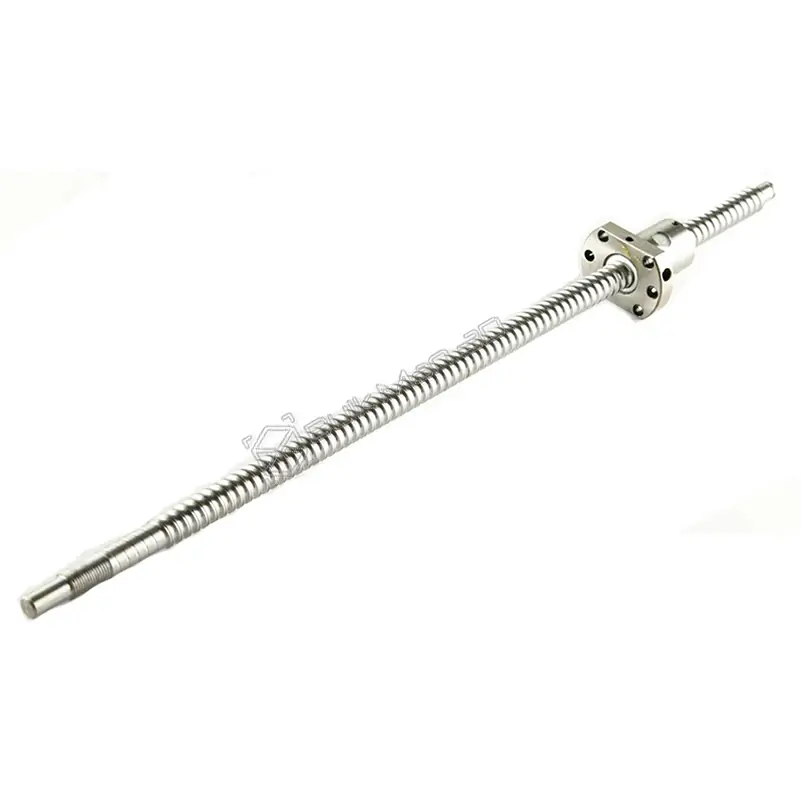

SFU1605 Ball Screw Rod with Nut – 200mm – 1550mm

Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. Because its small friction drag,They are also used in machine tools, robots and precision assembly equipment. High precision ball screws are used in steppers for semiconductor manufacturing.

Product Description:

Product Name: SFU1605 Ball Screw

Manufacturing Process: Rolled Thread;

Precision: C7 Grade

Material: Carbon Steel

Model: SFU1605

Diameter: 16mm

Pitch: 5mm

Length: 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 1000mm, 1050mm, 1100mm, 1150mm, 1200mm, 1250mm, 1300mm, 1350mm, 1400mm, 1450mm, 1500mm, 1550mm (is the overall length, Including end machining part).

Packing included:

1Pc of SFU1605 End Machine Ball Screw

ATTENTION：

Ballnut fixing and dismounting requires professional tools or done by professional stuffs, otherwise, we will not take amy responsibility if there was any damage done by yourself.

SFU1605 Ball Screw

     High precision High speed Low noise
