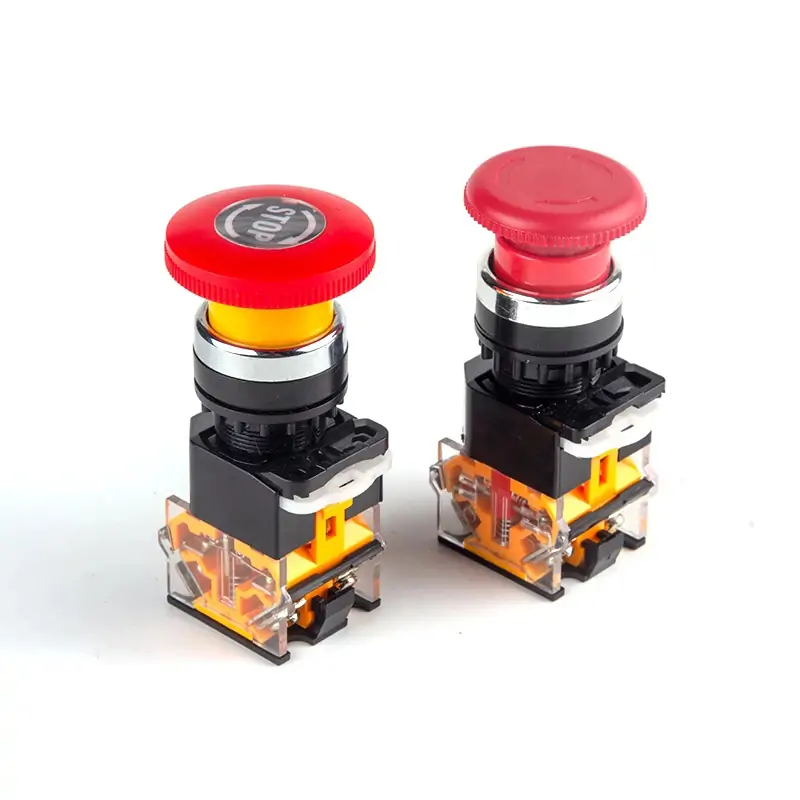

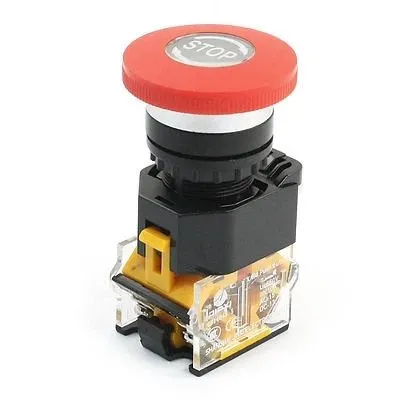

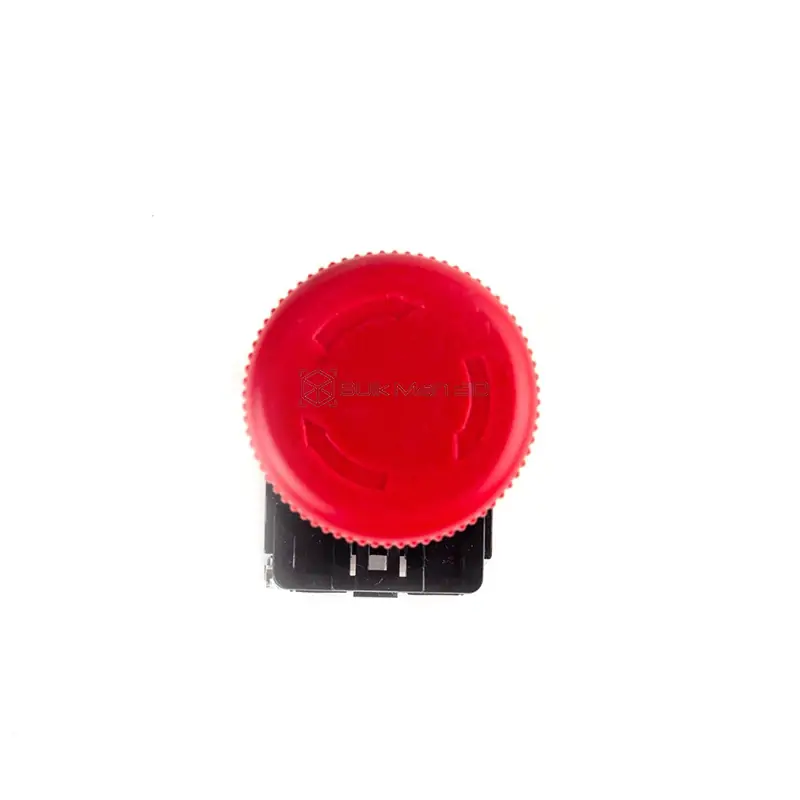

Panel Mount Emergency STOP Button N/C Switch

Description:

• Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency.
• When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.

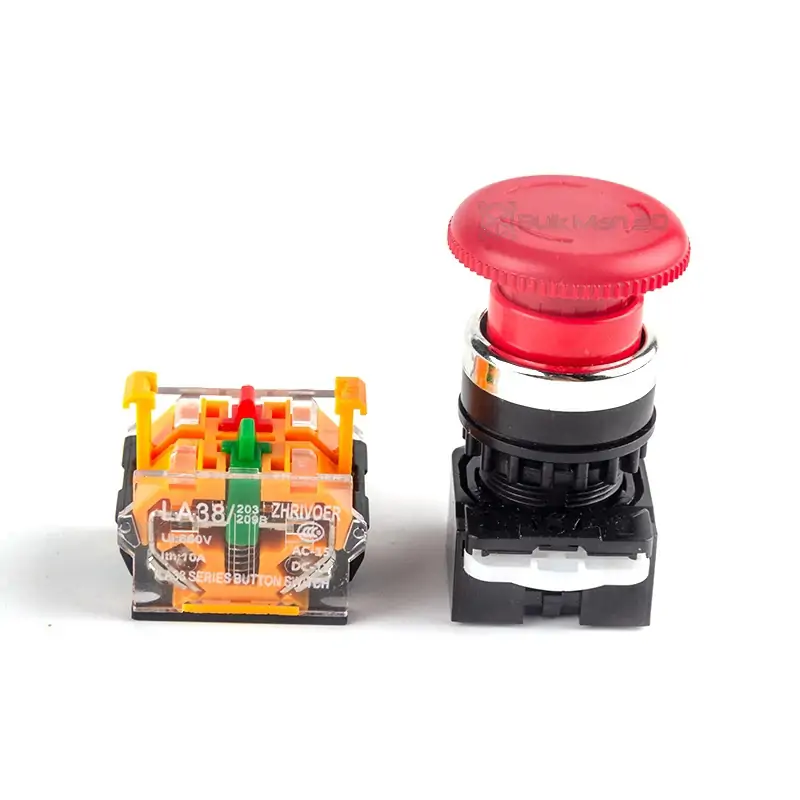

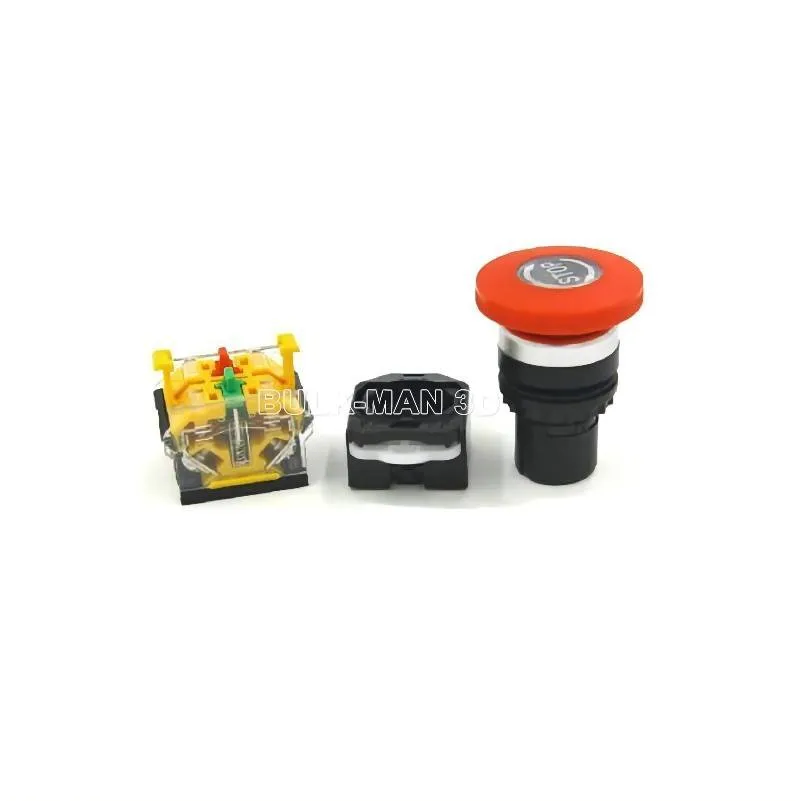

• It is a panel mount E-Stop switch so you can mount to your custom case. The mushroom button can easily be removed for mounting.

Product description:

• Model: LA38-11ZS
• Installation Dimension: Φ22
• Rated Voltage and Current: 440V, 10A
• Button Internal contact: Silver/Copper
• Mechanical life: ≥2000000 times
• Electrical life: ≥500000 times
• Contact Resistance: ≤50mΩ
• Insulation resistance: ≥10mΩ
• Button Appearance: come with “Arrow”

• Model: LA38-11ZS-ST
• Installation Dimension: Φ22
• Rated Voltage and Current: 440V, 10A
• Button Internal contact: Silver/Copper
• Mechanical life: ≥2000000 times
• Electrical life: ≥500000 times
• Contact Resistance: ≤50mΩ
• Insulation resistance: ≥10mΩ
• Button Appearance: come with “STOP”

Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
