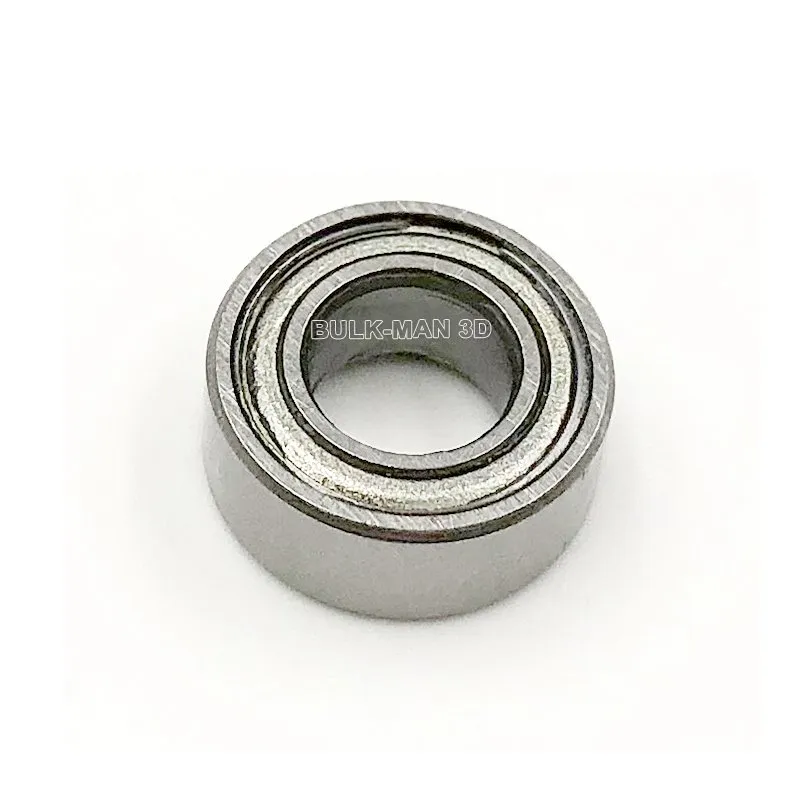

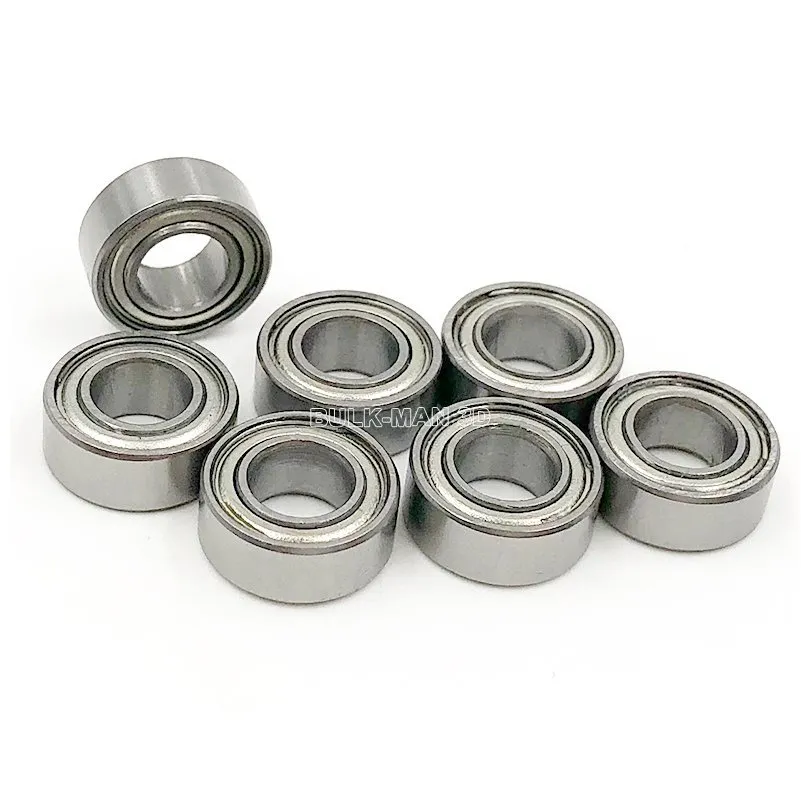

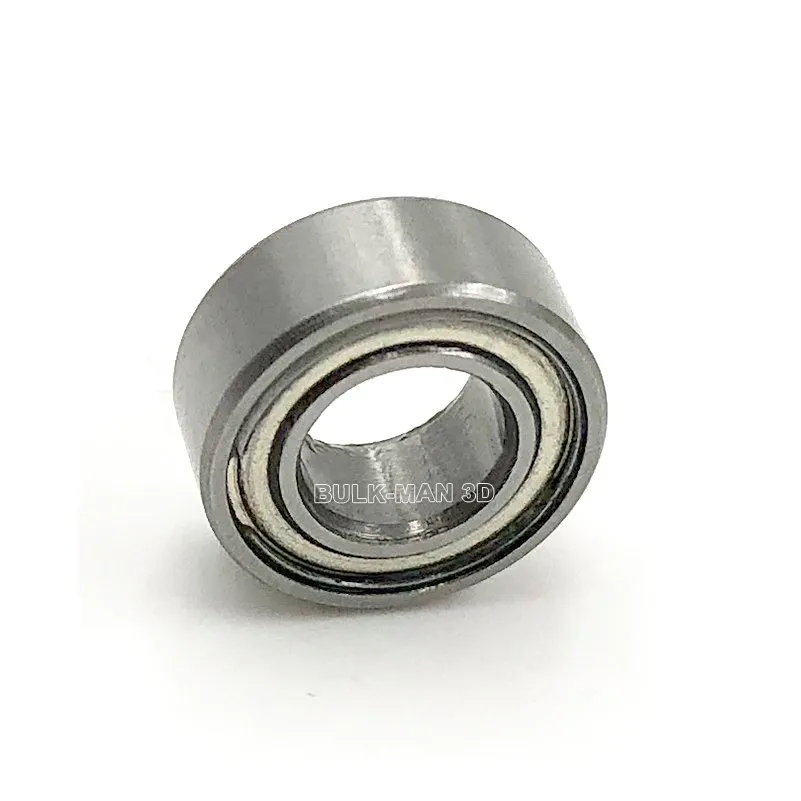

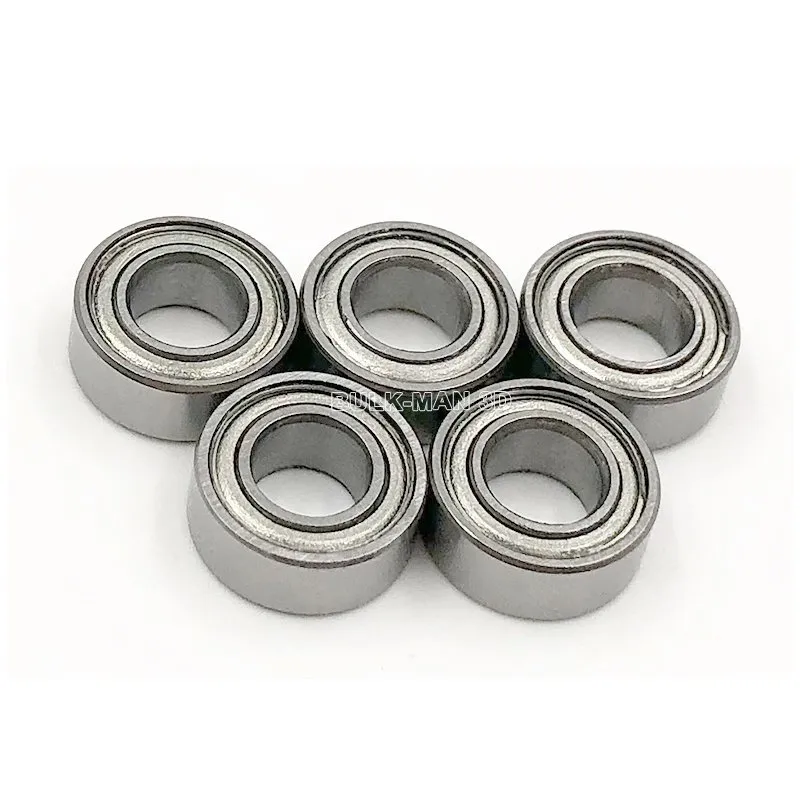

MR105ZZ Sealed Shielded Ball Bearing

Miniature and instrument ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can also be classified as “Open”, “Shielded”, or “Sealed” depending on the existence and type of seal or shield.

Deep groove ball bearings have two inherent advantages; they can sustain some axial load in either direction as well as radial loads, and the two raceway cross-sections are simple circular arcs that can be very precisely finished so the bearings have low friction and very little noise or vibration. Several different cage designs are available with different characteristics and the choice depends upon the individual application.

Specifications：

• Model: BE-105ZZ
• Size: MF105 – ZZ
• Material: Bearing Steel
• Inner Diameter: 5mm
• Outer Diameter: 10mm
• Width: 4mm

Package Includes:

• 1x MR105ZZ Bearings

Attention: Samples are available for commercial quantities.

Please Note： We sell to businesses for bulk order quantity please contact us at [email protected] for special distribution pricing.
