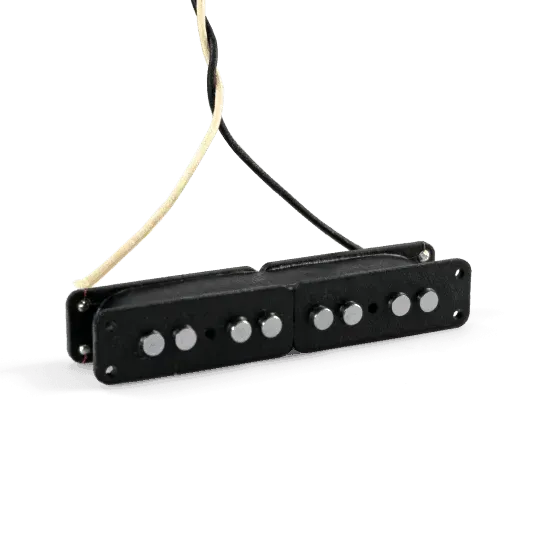

Lindy Fralin Split Jazz Bass
Our Split Jazz Bass Pickups are Noiseless Jazz Bass Pickups. They feature USA-Made magnets and wire and are wound by hand, one at a time. Featuring a Left-Right Coil design for no-hum, we guarantee that you will absolutely love the sound of our Split Jazz Bass Pickups. We wind these pickups to 60’s specifications, using top-of-the-line materials to give you a clear, open tone: all across the board.
FEATURES:
- Original Lindy Fralin Hum-Cancelling Design
- Clean and clear, with a louder midrange
- USA-made Alnico 5 Magnets for optimal tonal balance and output
- Compensated Bridge for even volume across all pickups
- Raised Center magnet stagger for even string-to-string balance
- Hand-wound with our “Sectioning” technique for unique, dynamic tone
- Hand-built fiberboard Bobbins for unrivaled quality control
- 10-Year Warranty on manufacturing defects
Lindy Fralin Split Jazz Bass Pickups offer a loud, clear and even response to four string bass players with no hum. This bass pickup allows you to get all of the Jazz-Bass vibe that you love, minus the hum. Being a hum-canceling Jazz Bass pickup, it’s fat, thick, and a little thicker sounding than a single-coil Jazz Bass.
White and Cream pickup covers are available, please contact us for more information.
PJ sets available, please contact us for details.
Sound
The Split Jazz Bass sounds like a single-coil Jazz Bass pickup, only thicker and darker. As soon as you plug in, you’ll notice the hum-free tone. Designed with a pronounced midrange, expect a thicker, beefier tone. You’ll find these pickups speak what you tell them to – soft and quiet, or digging in. Our Split Jazz Bass Pickups, provide authentic Jazz Bass tone with better articulation. We hand-wind these pickups using our unique formula to give them exceptional balance and tone. We offer (3) winding options to help you determine the perfect tone:
- For an era-authentic 60’s tone, use our “Stock Wind”, or, choose “N/A” under output preference
- For a thicker midrange and fewer highs, choose +5%. This will reduce the highs by 5%, and increase the lows and mids by 5%.
- If you’re looking for a little cleaner tone, use our -5% wind. This will increase the highs by 5%, and decrease the mids by 5%.
Tonal Graph For Split Jazz:
The tonal graph below for our Split Jazz features Lows, Midrange, Highs, and general Output.
Attack: Dynamic & Full

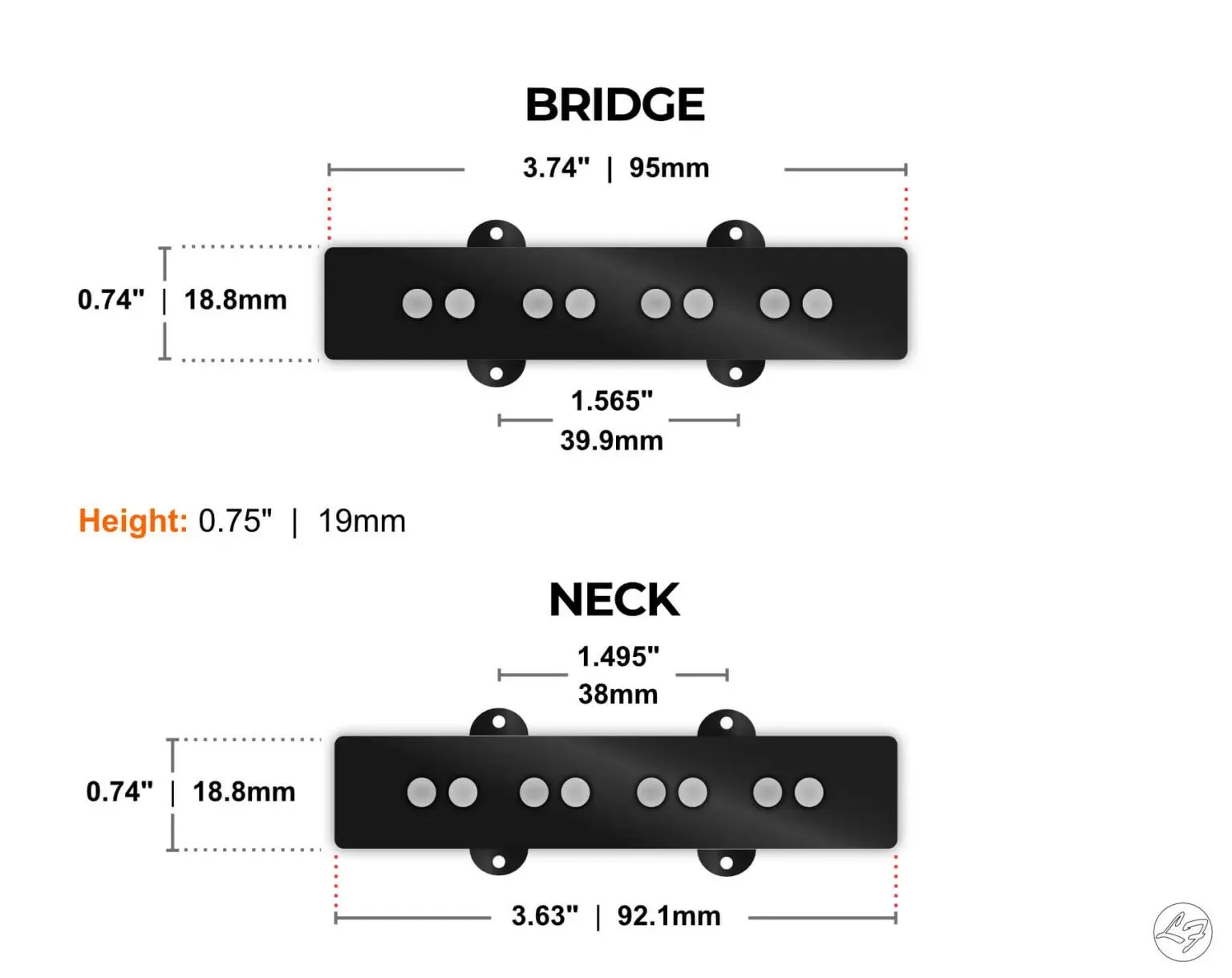

| SPECIFICATION | VALUE |
|---|---|
| Neck Ohm Reading: | 11.5K* 1 |
| Bridge Ohm Reading: | 12K* 1 |
| Magnet Wire: | USA-Made 43-Gauge Single Poly Nylon |
| Magnet Material: | USA-Made Alnico 5 |
| Bobbin Material: | USA-Made Fiberboard |
| String Spacing (Neck): | 20mm** |
| String Spacing (Bridge): | 21mm** |
| Style: | Hum-Cancelling |
| Recommended Cap Value: | 0.02mfd 2 |
| Output |
|---|
